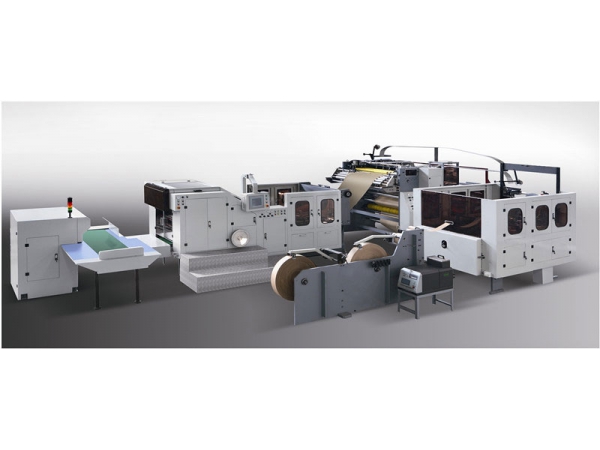

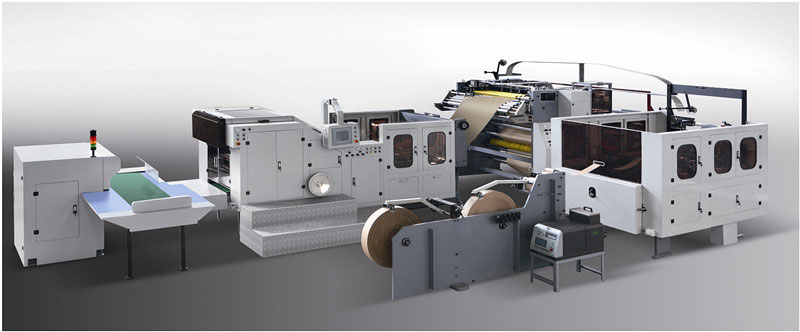

Our fully automatic roll-fed block bottom paper bag machine can produce various paper bags with or without a handle. The handle forming section makes handles using the twisted rope and paper patch. Then the handles are conveyed to handle application section, which perforates the blank or printed paper web, applies glue and pastes the handle to the web.
With handles attached, the paper web is fed into the main machine for side glue application, tube forming, cutting off, bottom forming, bottom glue application, bag forming and discharging. All these steps can be completed synchronously, which results in high efficiency of our fully automatic roll-fed block bottom paper bag machine. The whole machine is controlled by computer central control system with touch screen and can produce bags in different sizes. The paper bag length is controlled by a servo motor.
Advantages
1. Our fully automatic roll-fed block bottom paper bag machine
provides high speed. Within the suitable paper range, it can achieve
120pcs/min, thus creating great value for customers.
2. The whole housing design ensures operator safety.
