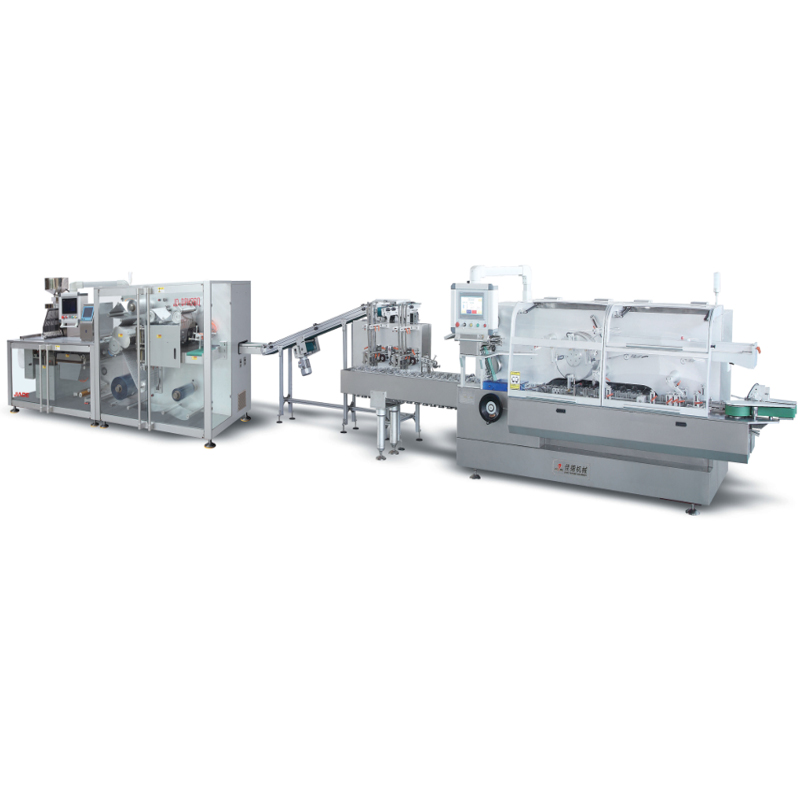

The DPH-260-JDZ-260 Capsule/Tablet Blister Cartoning Line can be widely used for packing different size of capsule, tablet and solid products(Alu-PVC/Alu-Alu) blister packing and cartoning. Can be connected with weighing machine, strapping machine, carton packer and other equipment, thus formed a complete automatic packaging production line.
Machine with GMP and cGMP standard,adopts PLC control system, servo motor drive control.
Equipped camera detection, lack of material testing, to ensure the passing rate of finished products.
Uses the safety cover protection devices to ensure operator safety.
Machine can be separated to some parts,order easy move into the elevator and clean room.
Optional:Aluminum foil online printing system(HAPA Aluminum foil printer).
Main Technical Parameters of DPH-260 Blister Packing Machine | |
Max. Punch Frequency | 150 Stoke/min(or 8.8m) |
Max. Forming depth | 14mm |
Max. Forming area | 180×250mm(L×W) |
Standard PVC hard sheet | (0.25-0.35)×260mm |
Standard PTP Aluminum foil | 0.02×260mm |
PVC roll diameter(OD) | ﹤φ380mm |
PTP roll diameter(OD) | ﹤φ260mm |
PVC & PTP hole diameter of roll | φ68-75mm |
Overall dimensions(L×W×H) | 3550×1100×1950mm |
Total power | 24kw 380V/50Hz (according to customer’s requirement) |

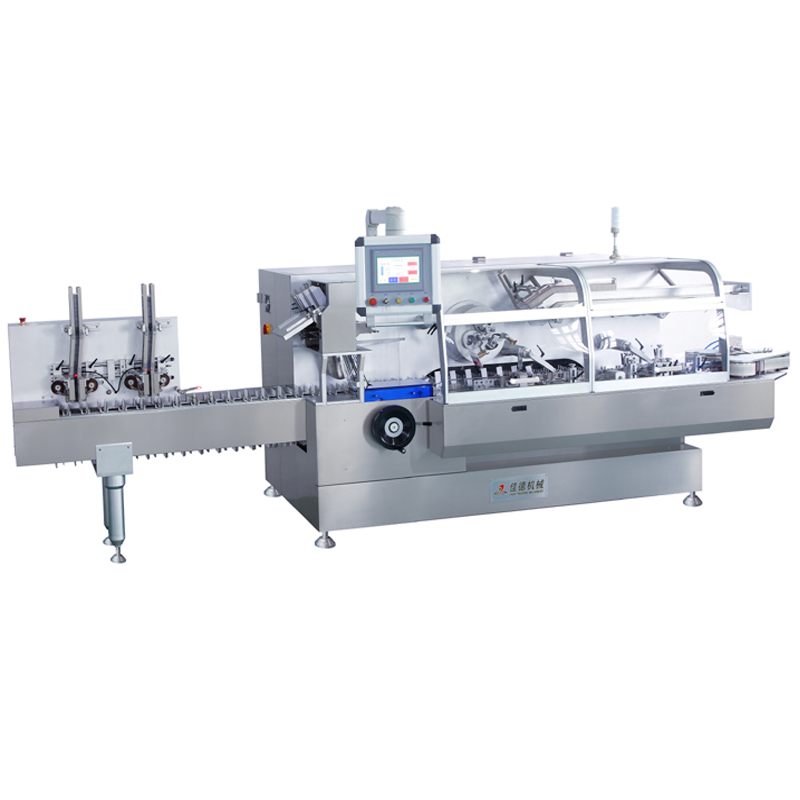

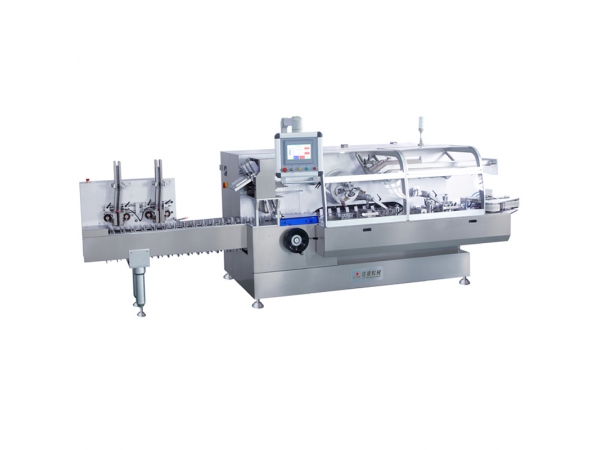

Main Technical Parameters of JDZ-260 Carotning Machine | ||
Encasing speed | 260 boxes /min | |
Box | Quality requirement | 250-350g/㎡【Base on carton size】 |
Dimension range（L×W×H） | （70-180）mm×（35-80）mm×（14-50）mm | |
Leaflet | Quality requirement | 60-70g/㎡ |
Unfolded leaflet specification | （80-250）mm×（90-170）mm | |
Fold range | 【1-4】Fold | |
Compressed air | Working pressure | ≥0.6mpa |
Air consumption | 160-200L/min | |
Power supply | 380V 50HZ | |
Main motor power | 5kw | |
Machine dimension(L×W×H) | 4800mm×1600mm×1860mm | |
Machine weight | 3000kg | |
