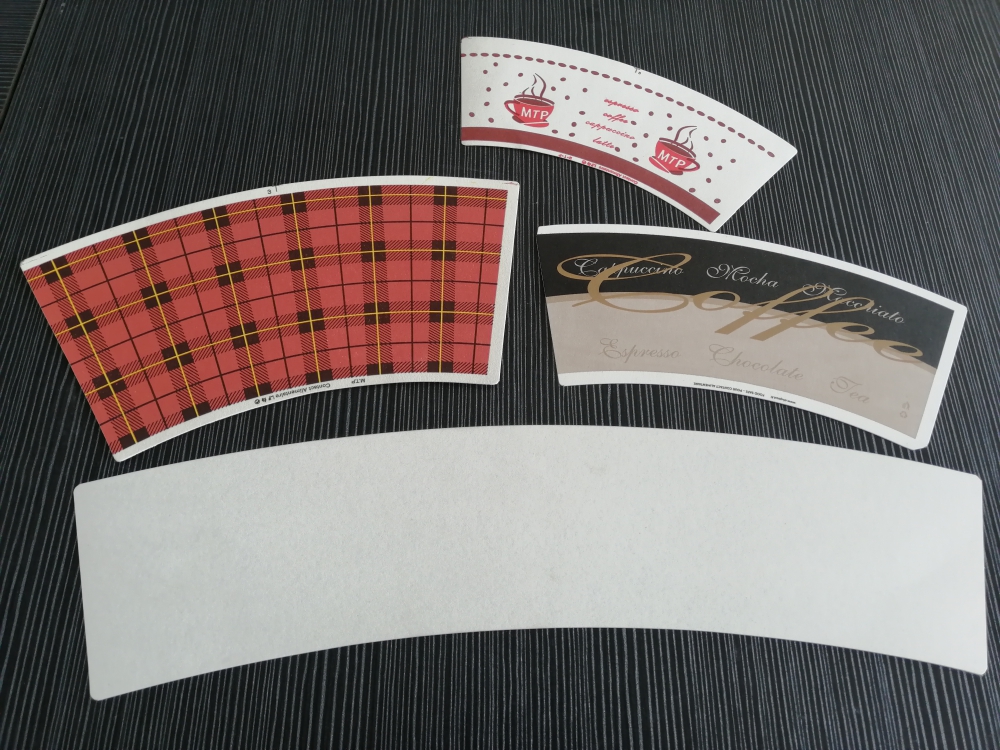

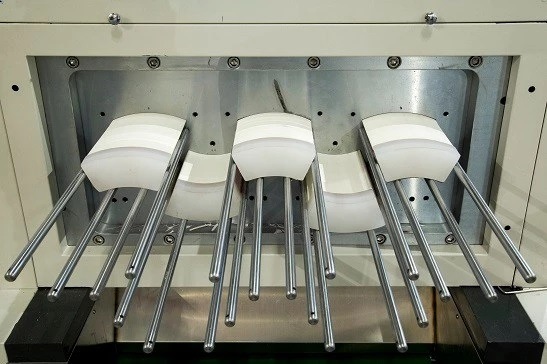

The equipment is suitable for paper thickness of 150-350 gsm roll paper for rapid and precise punching, collecting and stripping at the same time, can be applied to paper cups, paper bowl, paper plate etc.

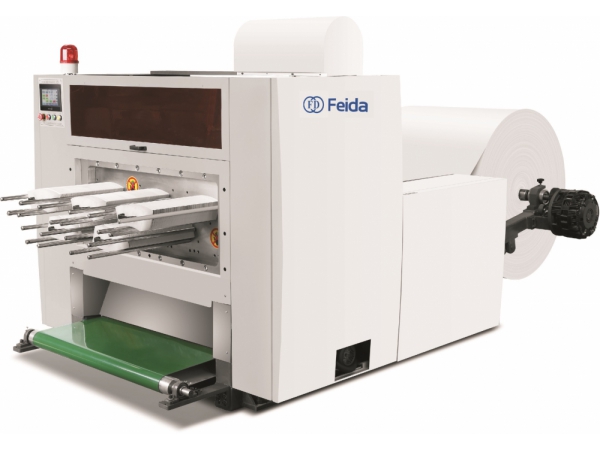

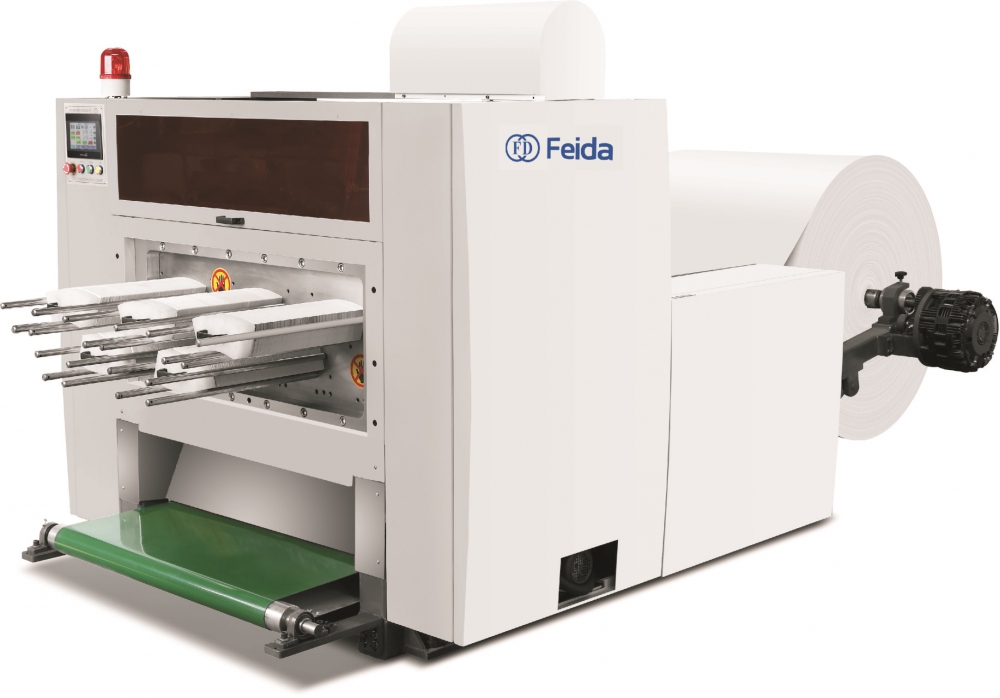

FDC series automatic roll punching machine based on international advanced technology, it’s widely used in paper cup fan products. It adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, photoelectric correcting deviation system, centralized oil lubrication.
Technical Specification Model FDC850 FDC920 FDC1000 FDC1200 Max Paper Width 850mm 920 1000 1200 Cutting Precision ±0.20mm Paper Gram Weight 150-400g/㎡ Production Capacity 280-380times/min 280-380times/min 280-330times/min 260-300times/min Air Pressure Requirement 0.5Mpa Air Pressure Consumption 0.25m³/min Weight 3.5T 4T 4.5T 5T Max Roller Diameter 1500mm Total Power 10KW 10KW 10KW 12KW
