Description

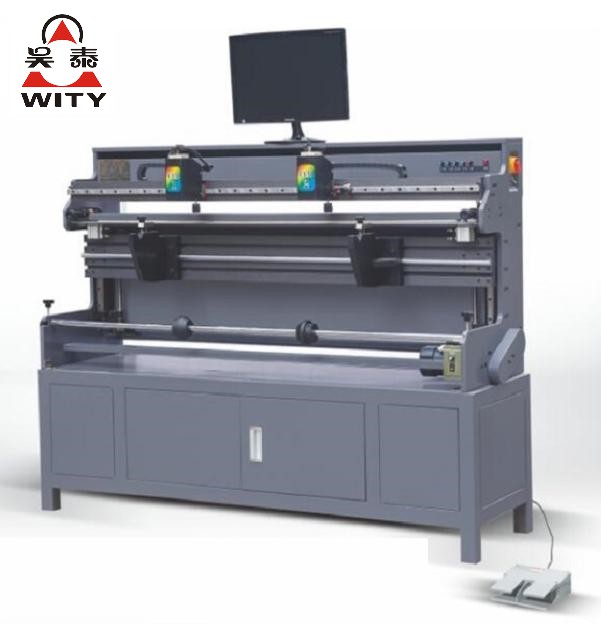

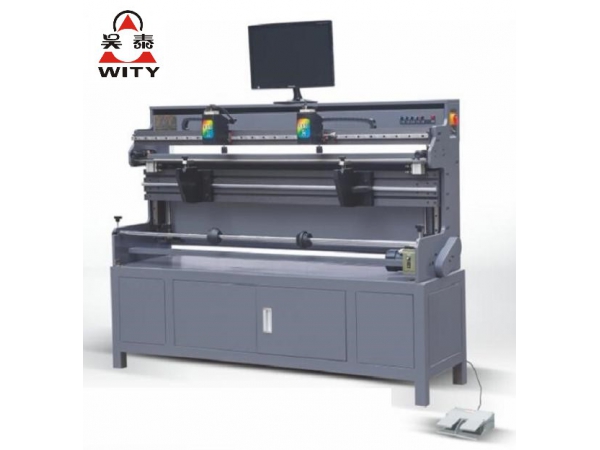

a) This machine adopts high precision linear guide raids for horizontal positioning; the left and right, up and down position of camera is adjustable, which uses precision screw rod system

b) With magnify zoom lens, high definition CCD camera, and LCD displayer

c) It can individually move the two cameras conveniently, with accurate positioning the cross line.

d) The CCD camera can be adjusted in six direction and the parallelism is adjustable, with high precision of plate mounting and registration.

e) The plate focus adopts micro-adjustment system, so that it can accurately move the plate and correctly contrapose the datum line; after mounting, it can check the precision directly and assure the plate mounting quality.

f) Motor drives up and down of the printing plate roller.

g) Special pressure plate roller ensures the tight sealing of printing plate and double side adhesive tape.

h) Fast plate mounting and easy operation greatly improve the working efficiency.

i) Suitable for flexo plate and resin plate printing.


Main parts

Linear guide raids: HIWI brand or ABBA brand from TaiWan

CCD camera: MINTRON brand of TaiWan

Zoon lens: China Optical instrument factory

LCD displayer: SUMSUNG brand or PHILIPS brand



Main technical specification

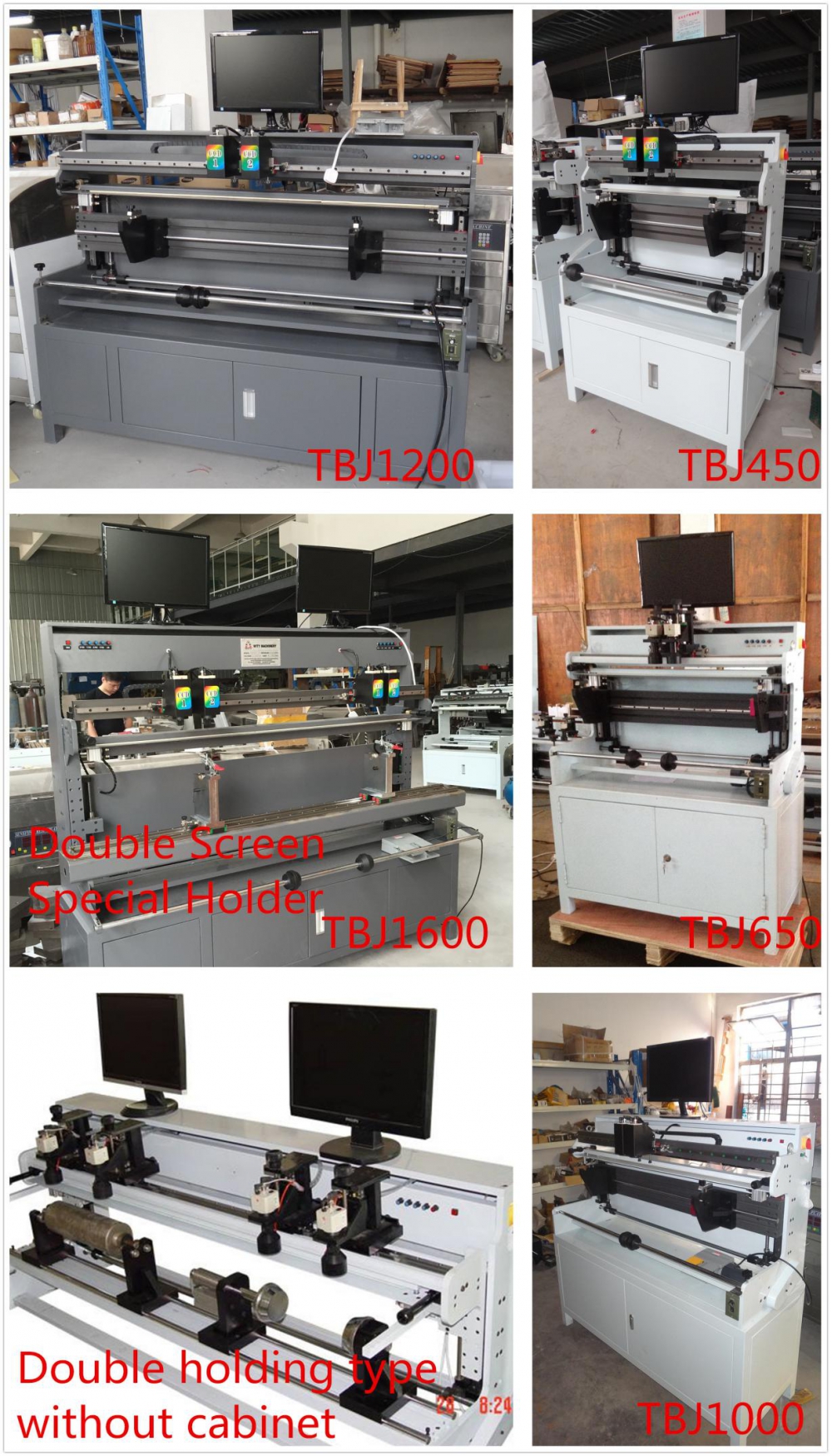

Model

TBJ-450

TBJ-650

TBJ-1000

TBJ-1200

TBJ-1600

Plate mounting width

450mm

650mm

1000mm

1200mm

1600mm

Plate cylinder diameter

55~260mm

55~260mm

55~260mm

55~260mm

55~260mm

Power

0.5kw

0.8kw

0.9kw

0.9kw

0.9kw

Overall dimension (cm)

80x51x90

100x51x160

135x51x160

155x51x160

195x51x160

Weight

150kg

180kg

365kg

400kg

460kg
