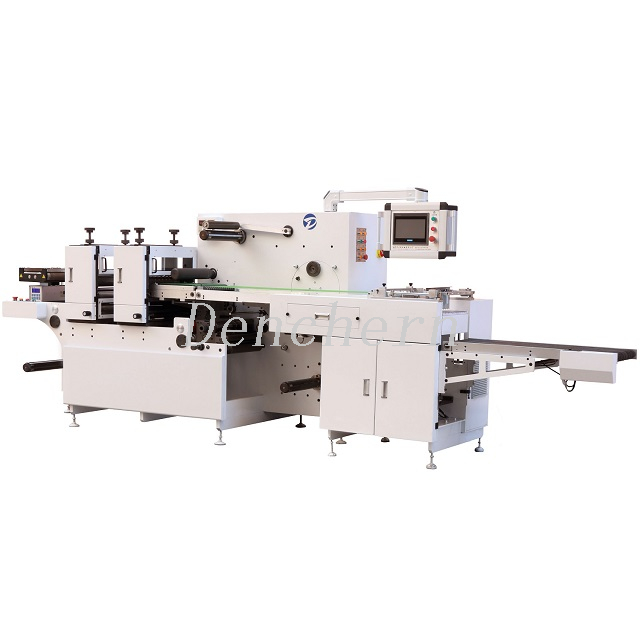

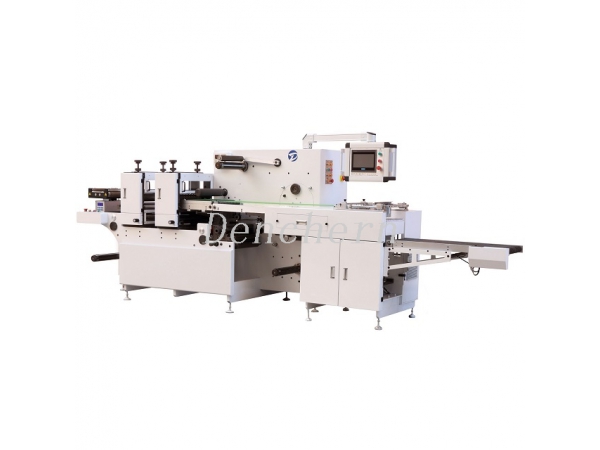

DC370-IML adopt rotary die cutting process technology, can run both semi rotary and full rotary, meet different order requirement. Machine is with auto stacker for finish product to save labor cost.
Model | 370 | 480 |
Max. speed | Rotary 120m/min Intermittent 300times/min | Rotary 120m/min Intermittent 300times/min |
Max. web width | 370mm | 370mm |
Die cutting repeat | 10-420mm | 10-420mm |
Stacker height | 100mm | 100mm |
Die cutting precision | ±0.15mm | ±0.15mm |
Max. unwind dia. | 800mm | 800mm |
Max. down rewind dia. | 800mm | 800mm |
Rewind inner core size | 1-6 inch (standard in 3 inch) | 1-6 inch (standard in 3 inch) |
Thickness of material | 20-300um | 20-300um |
Air source | 0.8Mpa | 0.8Mpa |
