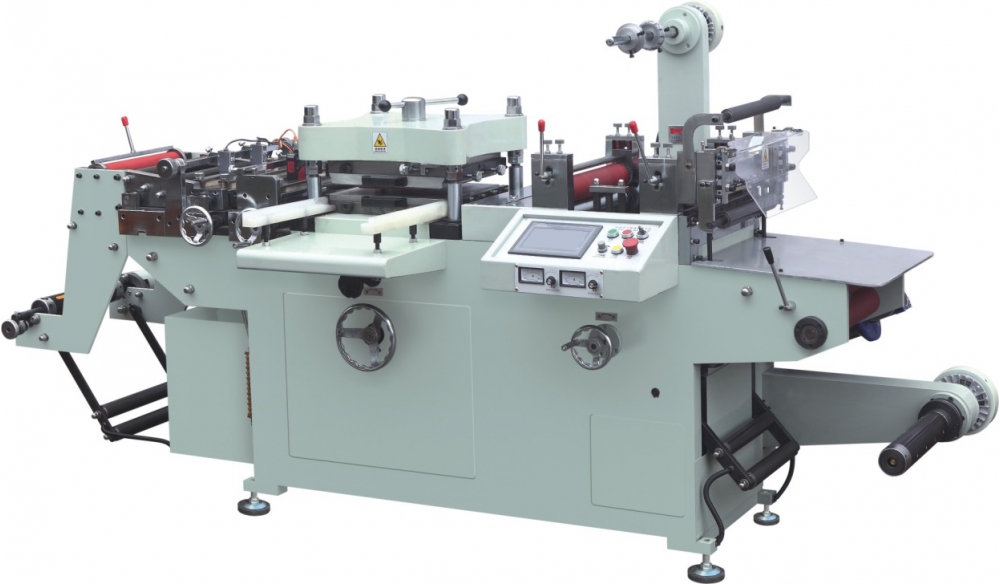

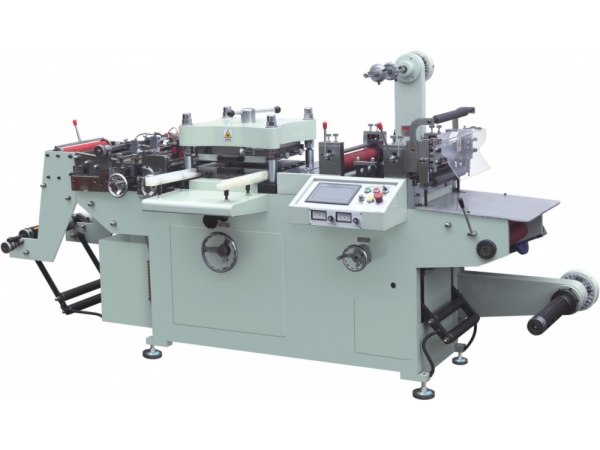

YS-450A flatbed die cutter employs a flatbed die cutting press and steel rule dies to convert material into custom shapes and designs. It adopts advanced electric components to achieve a die cutting speed of 30~180 times/min. Laminating, die cutting, web feeding, waste removal and winding process are all automatically controlled by the computer. A photoelectric sensor is used to detect the position of web to ensure the cutting precision and consistency. The flatbed die cutting machine delivers cost-effective ergonomics with high automation for minimal operator intervention and maximum uptime. Gold stamping function is optional.

Applications
• Die cutting of labels of different materials: paper, cloth, adhesive laminates, plastic/polymer films, etc.
• Application industries: electronics, adhesive tapes, packaging, clothing, digital printing, nameplates, etc.

• Integration with high-speed label printing machine, flexo printing machine, continuous screen-printing machine, gravure printing machine and anti-counterfeiting label press.

Type	450A
Die Cutting Speed	30-180 times/im
Max. Web Width	420mm
Max. Unwind Roll Diameter	550mm
Max. Rewind Roll Diameter	550mm
Max. Die Cutting Width	400mm
Max. Die Cutting Length	450mm
Positioning Precision	±0.10mm
Main Motor Power	2.2kw
Total power	4.7kw
Power Supply	220V±10%
Overall Dimension	2900X1350X1400mm
Weight	About 2000kg
