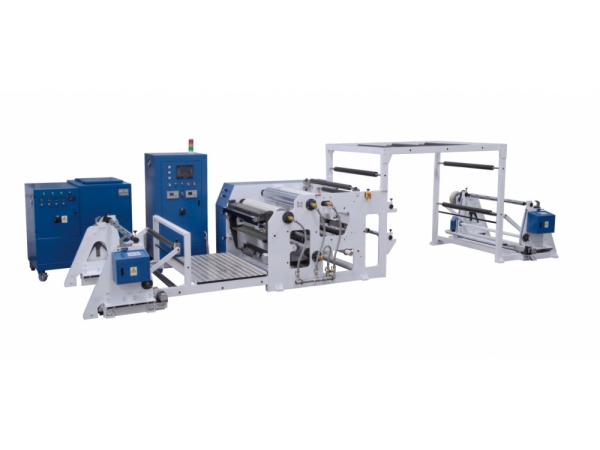

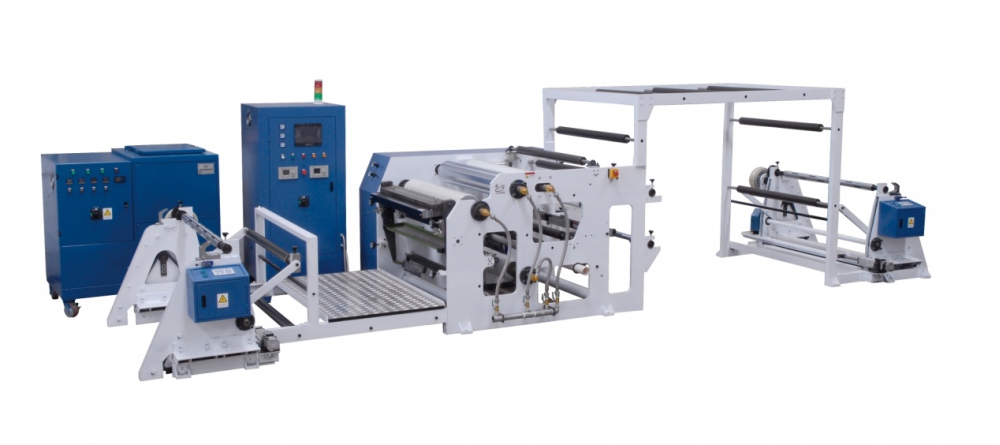

Hot Melt Coating Equipment, 80M/min (RTS Series)

Hot Melt Coating Equipment, 80M/min (RTS Series)

Inquiry
Website

Features

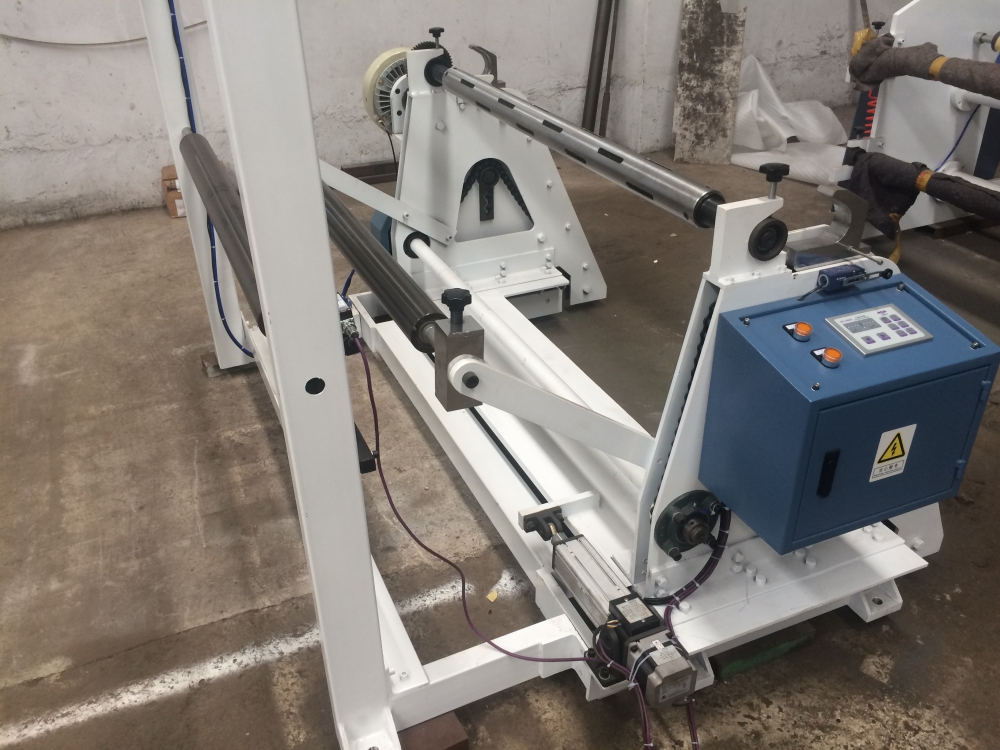

1. The hot melt coating equipment comes with an automatic tension control system and unwinding unit with edge guide.
2. A web guiding system is utilized for the unwind.
3. Electrically operated material loading for the unwinding unit is available.

4. The hot melt coater features a PLC control system, ensuring easy and precise control of the machine.


Applications

The hot melt coater is applied for manufacturing labels, tapes and tamper evident products in one pass, and is widely used as:
Paper Roll Coater

Wood Roll Coater

Metal Roll Coater

Glass Roll Coater

Plastic Roll Coater

Foam Roll Coater

Hardboard Roll Coater

Technical Parameters

Model

RTS

Coating Width

400-2500mm

Coating Weight

10-200g/㎡

Coating Speed

80m/min

Unwind Roll Diameter

1000mm

Rewind Roll Diameter

1000mm

Web Guiding System

1 set

Length

8400mm

Height

2350mm
