Features

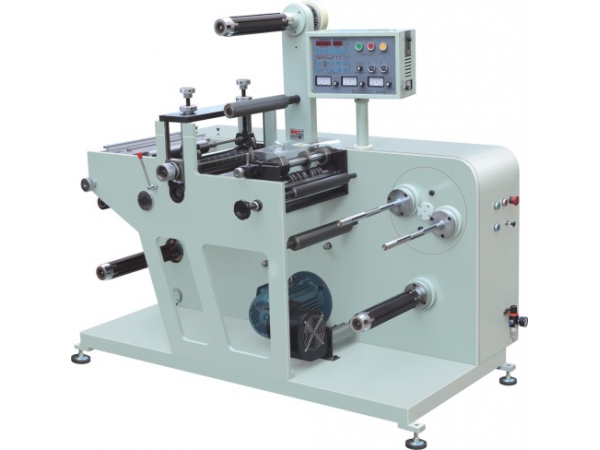

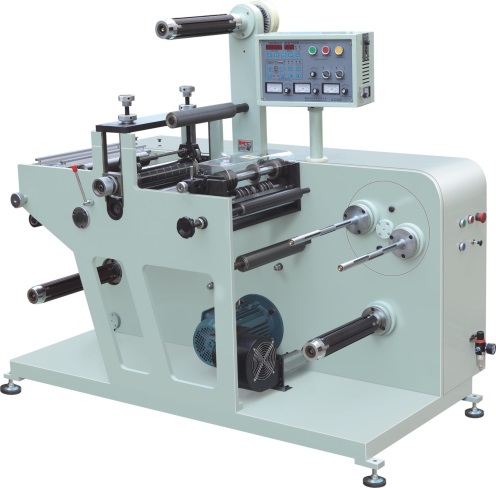

YS-350Y
rotary die cutting and slitting machine includes a rotary die press, a cylindrical
die and a slitting station. It has auto count unit for labels, meters/feet,
total count and batch count, enabling fixed-length auto stop. The fed
material’s position is detected and corrected by photoelectric eye sensor
control system to ensure the slitting precision. The rotary die cutter with
slitting station features compact design, fast
production speed, high slitting precision, easy operations and stable
performance.
The rotary die cutter and slitter is suitable for processing adhesive labels.
Specifications
Model | YS-350Y |
Slitting speed | 120m/min |
Max. Slitting Width | 320mm |
Max. Web Width | 320mm |
Max. Unwinding Diameter | 500mm |
Max. Rewinding Diameter | 500mm |
Positioning Accuracy | ±0.10mm |
Weight | 600kg |
Overall Dimension | 1700*1000*1600mm |
