Flat Plate Blister Packing Machine

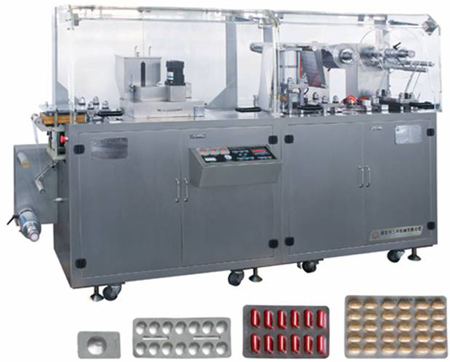

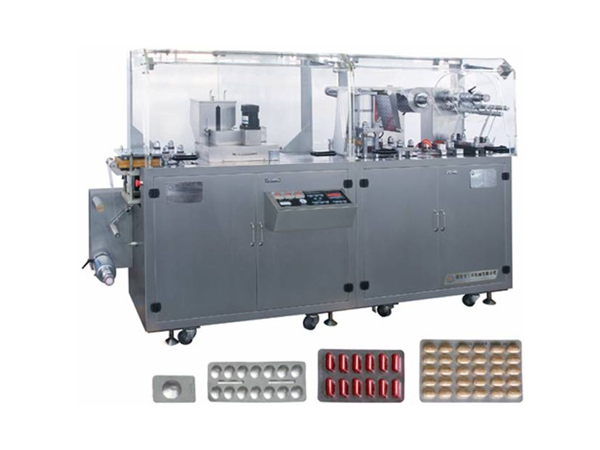

Here is our DPP-140G /250G blister packing machine PVC-ALU /ALU-ALU. The blister packing machine is independently developed with internationally advanced technologies in rigid compliance with the GMP standards. It is generally used for blister type aluminum-plastic and paper-plastic airtight packing of capsules, tablets, injectors, candies, hardware, and more.
Features of Blister Packing Machine1. Stroke adjustable
Our blister packing machine comes with adjustable stroke, and is suitable for packing products of different specifications.
2. Slab construction
It can be used for packing products of any shape, square, triangle, oval, and irregular shapes, for example.
3. Positive pressure forming
Neat blister with uniform thickness helps to ensure beautiful packing,
4. The blister packing machine automatically accomplishes forming, feeding, heat sealing, impression, marking, cutting, and waste collecting in one process.
5. Receiving unit
The machine has the function of automatically collecting the whole roll of waste materials.
Main Technical ParametersBlister Packing Machine, DPP-140G
Funch Frequency: 20-40 times/min
Max Forming Area: 110*140mm
Power of Main Machine: 1.5kw
Heating Power: 2.6Kw
Air Compressor: ≥0.15 m3/min
Heating Power: 3.1kw
Rated Frequency: 50Hz
Rated Power Supply: AC380V (3 phases 4 lines)
Weight: 900kg
