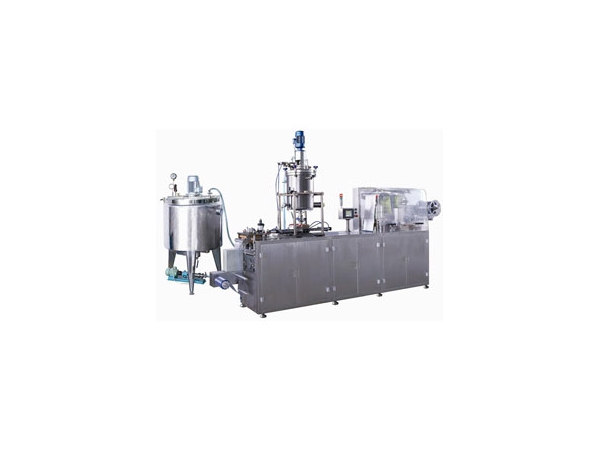

Liquid blister packing machine, DPP-250Y can be used as butter packing machine, honey packing machine, cream packaging machine and more, widely in food industrial field. It adopts PLC man-machine interface control system, and is equipped with automatic liquid filling device, safety enclosure and photoelectric printing registration device.
Liquid blister packing machine, DPP-250Y can be used as butter packing machine, honey packing machine, cream packaging machine and more, widely in food industrial field. It adopts PLC man-machine interface control system, and is equipped with automatic liquid filling device, safety enclosure and photoelectric printing registration device. Besides, all the parts that contact with materials are made by stainless steel, which ensures our machines clean and hygiene. Our blister packing machine has received ISO9001:2000, CE, GMP certificate.
Parameters of Liquid Blister Packing Machine
| Maximum blanking ability | 25 time/minute |
| Maximum production capacity | 400 blisters/ minute (8g/blister) |
| Stroke | ≤150mm (according to customer’s request) |
| Maximum forming area | 245x150mm |
| Maximum forming depth | 30mm |
| Packing material | PVC: 260x0.25(0.15-0.5)mm |
| PTP: 260x0.02mm | |
| Power supply | four wire three phase 380V 50Hz (220V 60Hz) |
| General power | 5.7KW |
| Main motor power | 1.5KW |
| Flow of air compressor | ≥0.38m3/min |
| Size(L*W*H) | 4200x650x1700 (mm) |
| Whole weight | 1500kg |
