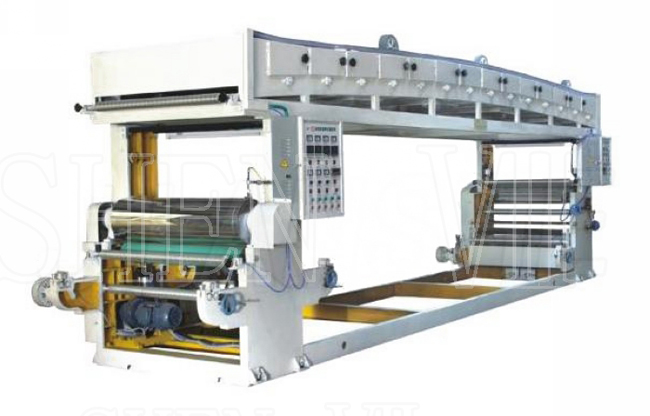

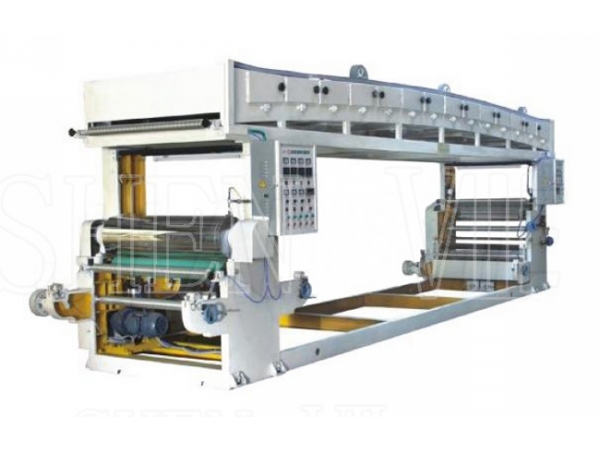

The dry type laminating machine is used for laminating plastic-plastic, paper-plastic, paper- paper, and aluminum foils, and other laminated materials in the packing industry.
Performance
Dual-motor gluing and laminating, dual-imported variable frequency
synchronous control on motor speed, have changed the previous shaft
transmission mechanism, stable material moving, up to synchronous linear
speed, assuring constant base material stretching.
| Number of Layers | Max. Production Width | Max. Rolled Diameter | Production Speed | Total Motor Power | Weight | Boundary Dimensions |
| 2 layers | 1100mm | Φ500mm | 5-70times / min | 27kw | 3500kg | L7500 * W1430 * H2720mm |
Features
1. The heating of the bridge double drying tunnel of the dry laminating machine increases the production ability.
2. It offers two gluing methods of scraping-knife type or extruding
type which can be selected at will according to different technologies.
3. The dry laminating machine offers magnetic power tension control of rolling and releasing.
As a specialized dry laminating machine manufacturer based in China, we offer a comprehensive line of products, including a laminating machine, printing machine, film blowing machine, non woven bag machine, and much more.
