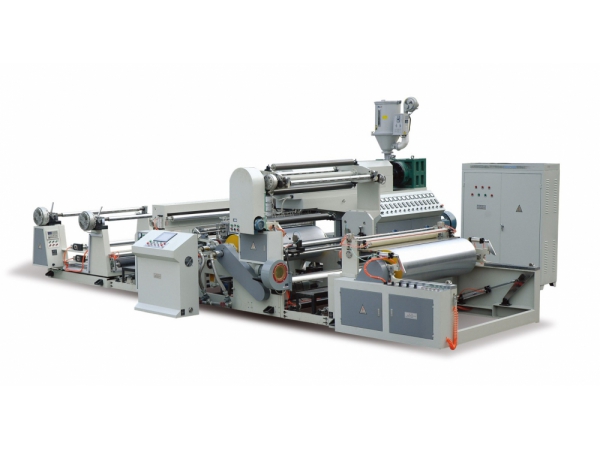

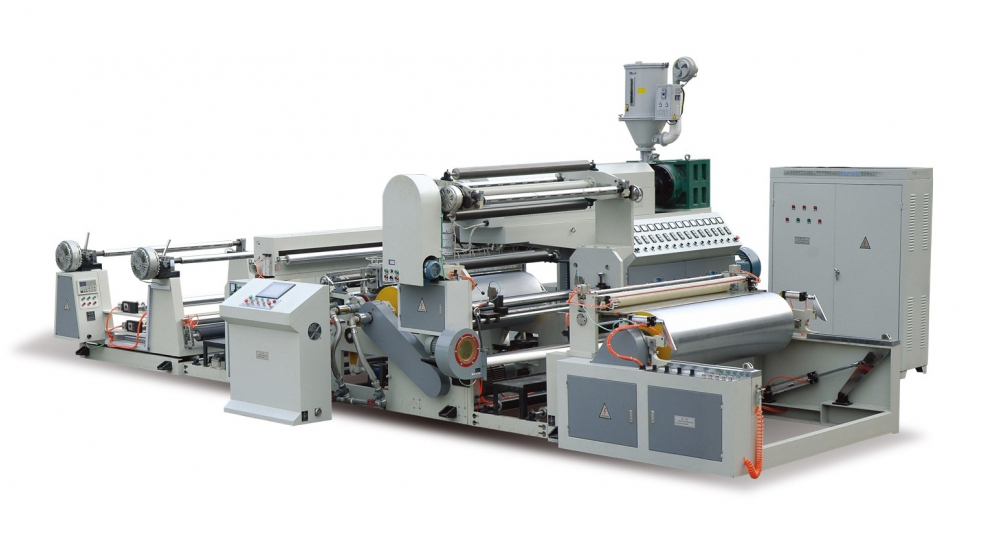

The extrusion coating and laminating machine is suitable for the coating and laminating of various materials such as paper, plastic, nonwoven fabric. The finished materials are widely used in the food packaging, medical packaging, wound dressings, clothing, footwear, bags, etc.
4. Provides best in-class extrusion and proven web solutions using extrusion coating and lamination process.
Technical Parameters
Model | LM-800 | LM-1100 | LM-1300 | LM-1600 | LM-1800 |
Length of Die Lip | 900mm | 1200mm | 1400mm | 1800mm | 2000mm |
Web Width | 400-700mm | 500-1000mm | 600-1250mm | 800-1500mm | 900-1700mm |
Max. Laminating Speed | 100-150m/min | 100-150m/min | 100-150m/min | 100-150m/min | 100-150m/min |
Coating Thickness | 0.01-0.1mm | 0.01-0.1mm | 0.01-0.1mm | 0.01-0.1mm | 0.01-0.1mm |
Screw Diameter, L/D Ratio | φ80mm×30 | φ95mm×30 | φ105mm×30 | φ120mm×30 | φ140mm×30 |
Max. Diameter of Unwind and Rewind Roll | φ1200 | φ1200 | φ1200 | φ1200 | φ1200 |
Machine Dimensions | 9.6×6×3.2m | 9.6×7×3.2m | 9.6×8×3.2m | 9.6×9×3.2m | 9.6×12×3.2m |
Installed Power | 60KW | 70KW | 80KW | 100KW | 130KW |
Pressure and Chill Roll | φ510mm | φ510mm | φ510mm | φ510mm | φ510mm |
