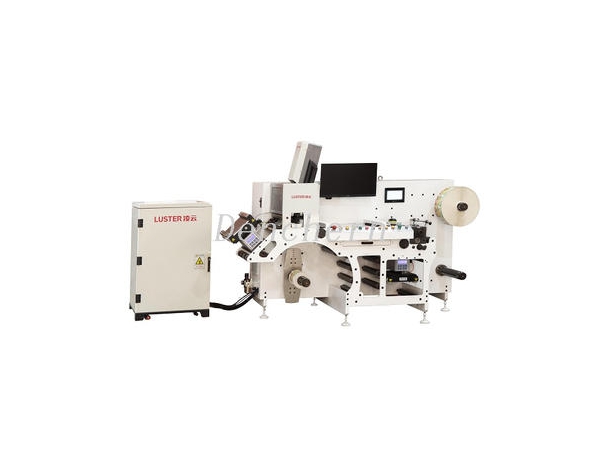

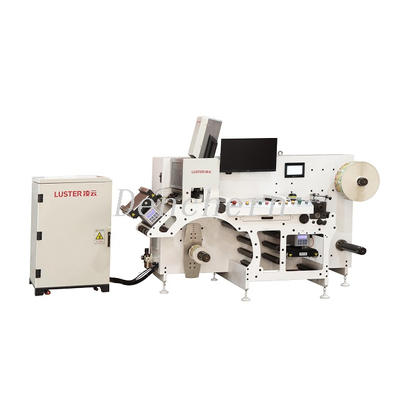

Inspection plate system is driven by full servo motor system, both rewind and unwind choose tapper tension control system, international web guide system, international PLC control system. It's suitable for paper, adhesive paper,PVC/PE,PP, inkjet printing.
Model | 370 | 480 | 550 |
Slitting speed | 220m/min | 220m/min | 220m/min |
Max. web width | 370mm | 480mm | 550mm |
Effective detection width | 350mm | 460mm | 530mm |
Max. unwind dia. | 700mm | 700mm | 700mm |
Max. up rewind dia. | 600mm | 600mm | 600mm |
Max. down rewind dia. | 700mm | 700mm | 700mm |
Min. slitting width | 15mm | 15mm | 15mm |
Razor knife | optional | optional | optional |
Air source | 0.8Mpa | 0.8Mpa | 0.8Mpa |
Weight | 1800kg | 2000kg | 2200kg |
Dimension | 2350*1250*1200mm | 2350*1330*1200mm | 2350*1400*1200mm |
Power | about 8 kw | about 10 kw | about 12 kw |
