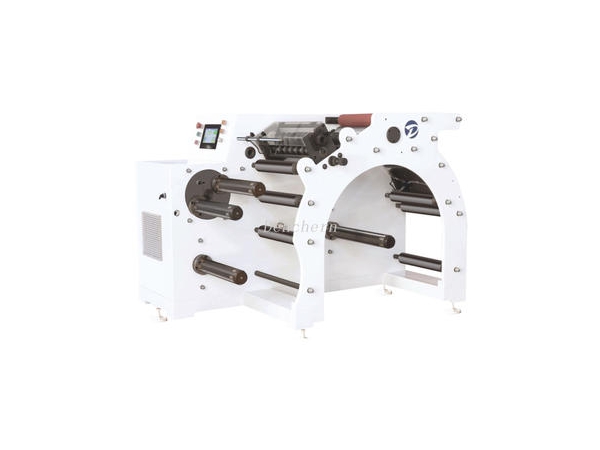

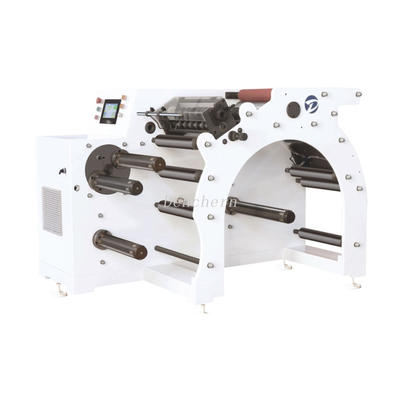

SR series automatic slitting machine mainly for narrow web label slitting.Turret rewinding unit, it saves time for change the finish rolls.It's suitable for different kinds size of rewinding core, with meter counter, number counter and less material stop machine function.
Model | SR-370 | SR-480 | SR-550 |
Speed | 220m/min | 220m/min | 220m/min |
Max Feed web | 370 | 480 | 550 |
Max unwind dia | 800mm | 800mm | 800mm |
Max up rewind dia | 200mm | 200mm | 200mm |
Max down rewind dia | 700mm | 700mm | 700mm |
Razor knife | optional | optional | optional |
Circular knife | 6 sets | 6 sets | 6 sets |
Precision | ±0.1mm | ±0.1mm | ±0.1mm |
Power | 5kw | 7kw | 9kw |
Dimension | 1700*1200*1300mm | 1700*1310*1300mm | 1700*1380*1300mm |
Weight(L*W*H) | 750kg | 900kg | 1100kg |
