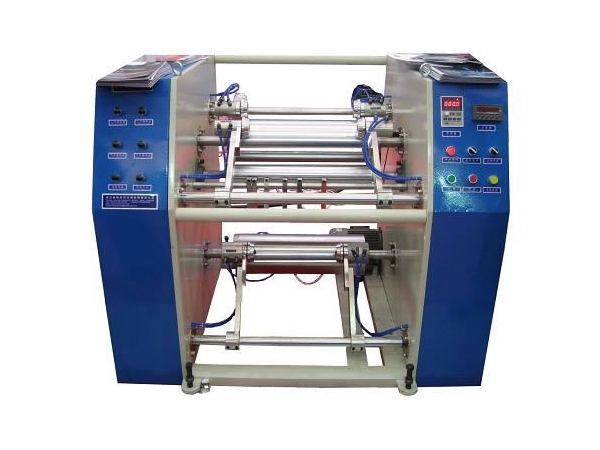

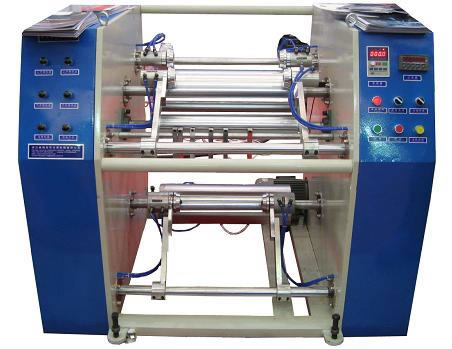

The FTRW-500 PE stretch film rewinding slitter is a kind of multi-functional machine integrated with slitting and rewinding. The machine slits large-sized stretch film into small ones to avoid the split-level film and improve the technical index of product, such as planeness and appearance quality, etc.
| Model | FTRW-500 | FTRW-1000 | FTRW-1300 |
| Width of finished products (mm) | 500 | 1000 | 1300 |
| Motor power (kw) | 1.5 | 3 | 3 |
| Linear speed of machine (m/min) | 400 | 400 | 400 |
| Roll laying mode | By hand | By hand | By hand |
| Diameter of parent roll (max.) (mm) | φ400 | φ400 | φ400 |
| Width of parent roll (max.) (mm) | 500 | 1000 | 1300 |
| Core specification of parent roll | 3" | 3" | 3" |
| Width of sub-roll (mm) | 500 | 1000 | 1300 |
| Diameter of sub-roll (max.) (mm) | φ300 | φ300 | φ300 |
| Core specification of sub-roll | 3", 2" | 3",2" | 3",2" |
| Overall dimension (L*W*H) (m) | 1.4*1.1*1.1 | 1.9*1.1*1.1 | 2.2*1.3*1.1 |
| Weight (kg) | 700 | 1000 | 1200 |
