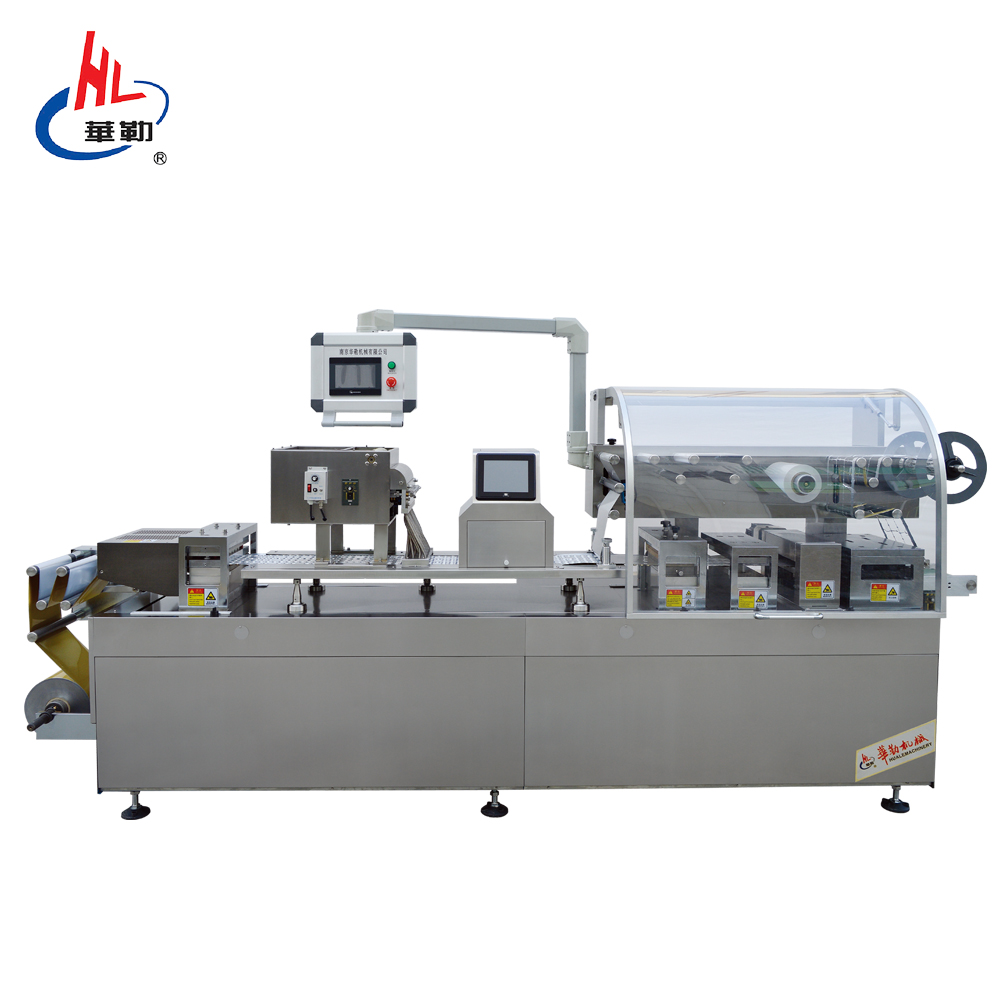

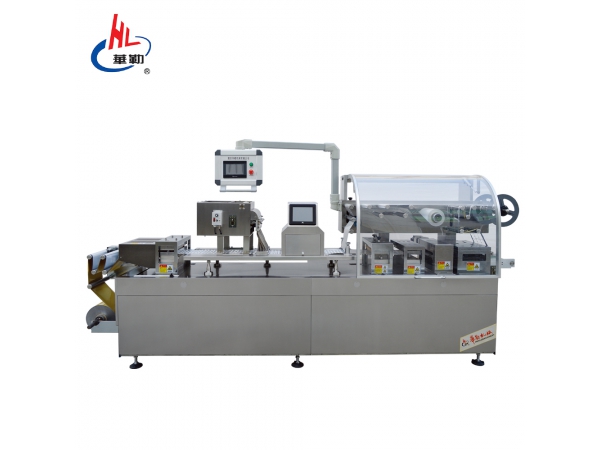

The biggest characteristic of this equipment is using mold positioning design, convenient for customers to replace the mold, reduce debugging time and material cost, the key parts are made of high quality stainless steel and high-grade Aluminum Alloy materials by machining center (CNC), mirror line cutting and other high precision CNC equipment into one processing type, retain the original texture finishing, highlight the noble quality. The transparent protective cover of fine workmanship arc to
TECHNICAL PARAMETER
The effective width of packaging material： 280mm Guide roller width： 280mm（Aluminum alloy material） Aluminum Aluminum working speed： 15 cuttings/min～40cuttings/min Aluminum Plastic working speed： 15cuttings/min～55cuttings/min Machine max working speed： 60cuttings/min PVC max diameter： φ300mm PTP max diameter： φ250mm Aluminum foil max diameter： φ300mm Waste collection max diameter： φ400mm Cold forming(ALU ALU)forming stretch area and depth： 250mm×100mm×12mm（Beyond the area and the depth is determined according to the customer requirements）； PVC forming area and depth： 250mm×100mm×13mm （ Beyond the area and the depth is determined according to the customer requirements）； Servo motor control stepless adjustable stroke ： 10mm ～ 120mm （ Beyond above stroke,according to the customer requirements）； Air volume flow： ≥0.36m3/min Total machine power： 380V、50Hz、4KW（ALU ALU power）； 380V、50Hz、7KW（ALU PVC power） Equipment split size(mm)： 15.① 1850mm×650mm×1650mm ② 1700mm×900mm×1900mm Packing size(mm): 3900×1100×2000 Machine net weight： 2T
