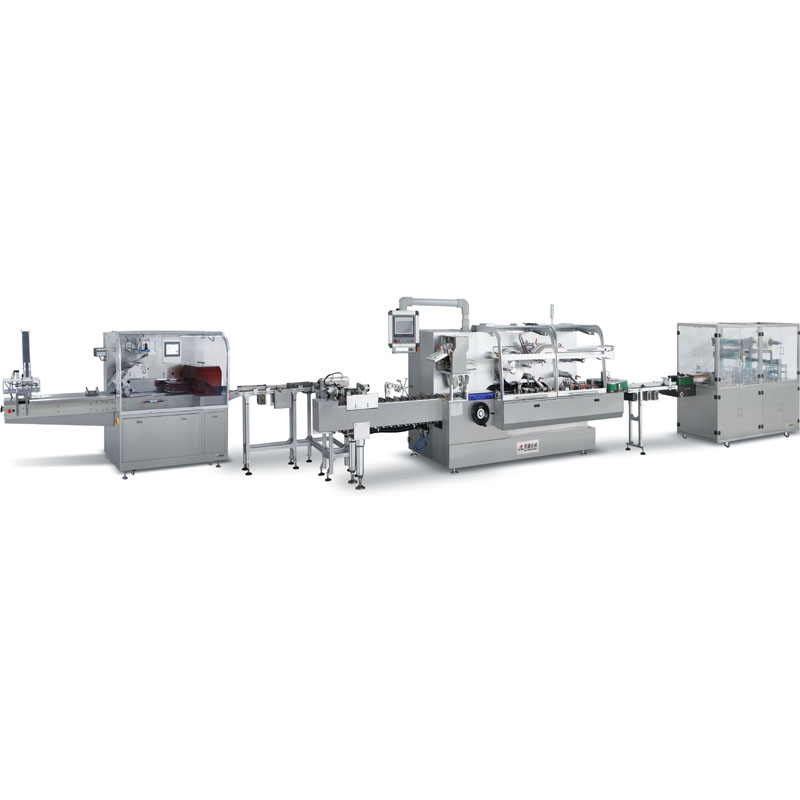

The JDZ-260 Pillow bag packing machine and cartoning machine is suitable for packing the product into the pillow bag first, then packed the pillow bag into the carton. This line included the function as product feeding, detecting, Aluminum film packing, rejecting, pillow bag transfer into cartoning machine, leaflet folding, carton forming, product pushing into the carton, batch number printing, carton flap sealing and so on.

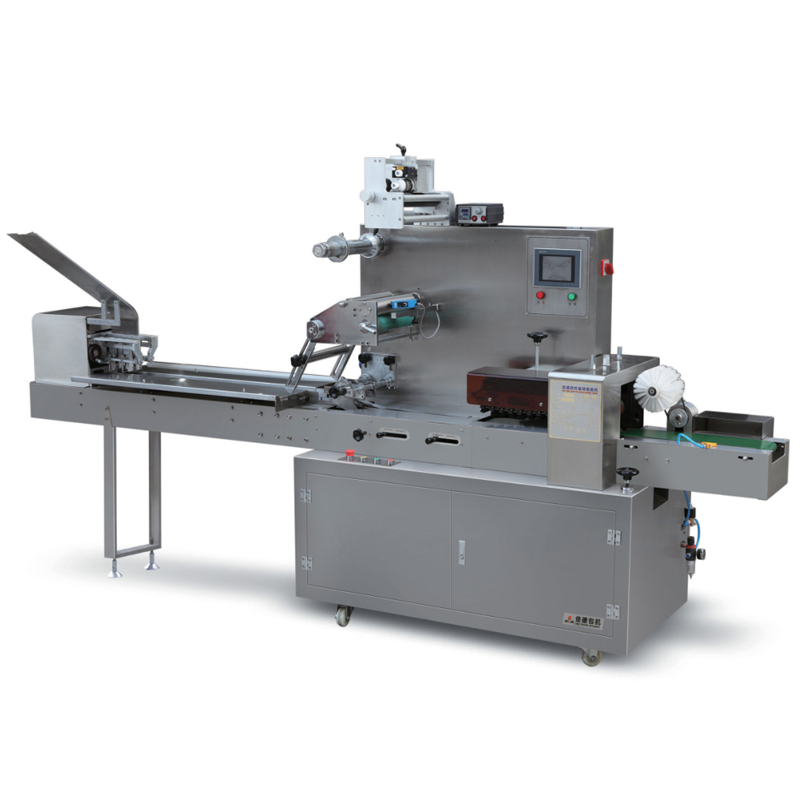

Main Technical Parameters of JD-FW-300C Pillow Bag Packing Machine | |
Capacity | 30-120 bags/min |
Packaging Size | L60-190mm, W30-110mm,H5-40mm |
Total Power | 2.4kw |
Weight | 800kg |
Overall Dimension | (L X W X H) 3780*640*1560mm |
Main Technical Parameters of JDZ-260 Carotning Machine | ||
Encasing speed | 260 boxes /min | |
Box | Quality requirement | 250-350g/㎡【Base on carton size】 |
Dimension range（L×W×H） | （70-180）mm×（35-80）mm×（14-50）mm | |
Leaflet | Quality requirement | 60-70g/㎡ |
Unfolded leaflet specification | （80-250）mm×（90-170）mm | |
Fold range | 【1-4】Fold | |
Compressed air | Working pressure | ≥0.6mpa |
Air consumption | 160-200L/min | |
Power supply | 380V 50HZ | |
Main motor power | 5kw | |
Machine dimension(L×W×H) | 4800mm×1600mm×1860mm | |
Machine weight | 3000kg | |
