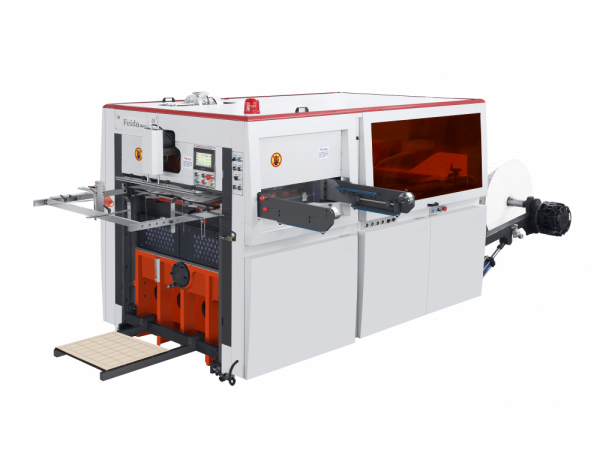

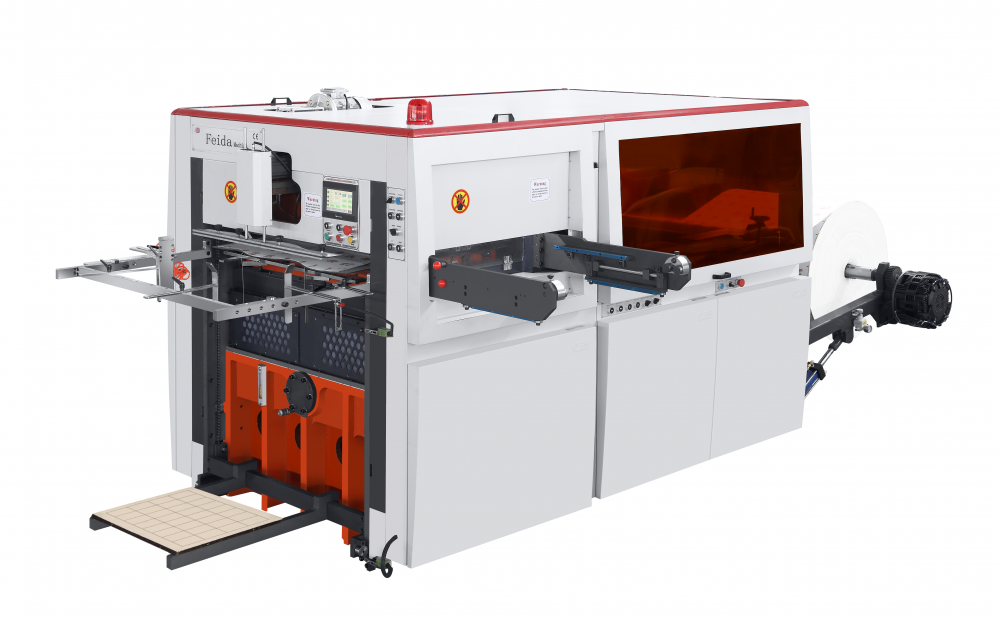

FD series automatic roll die cutting machine based on international advanced technology, has a high stability, high safety performance, high precision of the finished product, it’s widely used in paper packaging, such as paper box and so on. It adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, automatic counting, manual pneumatic lock plate, photoelectric correcting deviation system, electromagnetic cluth, centralized oil lubrication, overload protection and distinctive gearing. So it gurantees smooth operations of returning paper and feeding paper, precise positioning and oderly withdrawing. All the key parts and controls of the machine are imported. Such installation can realize the machine in steady pressure, precise positioning, smooth moving, saftey and reliability.
Technical Specification
Model 970x550(640) FDZ1080x640 FDZ1200x640 FDZ1400x780 Customized Max Cutting Area 940x520mm(610) 1050x610mm 1160x610mm 1350x750mm Max Paper Widht 950mm 1060mm 1180mm 1380mm Cutting Precision ±0.10-0.2mm Paper Gram Weight 120-400g/㎡ / 120-600g/㎡ 120-600g/㎡ Production Capacity 100-180 times/min 80-130 times/min Air Pressure Requirement 0.5Mpa Air Pressure Consumption 0.25m³/min Max Cutting Pressure 150T/280T 280T Max Roller Diameter 1600mm Stable Running Power 11KW 11KW 14KW 14KW
