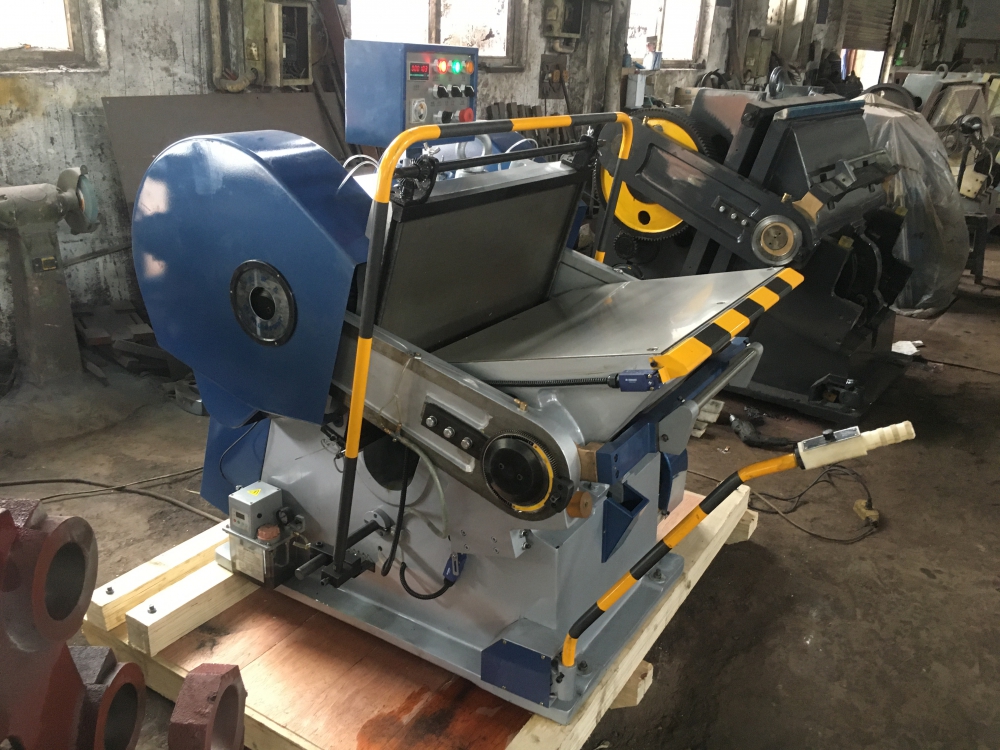

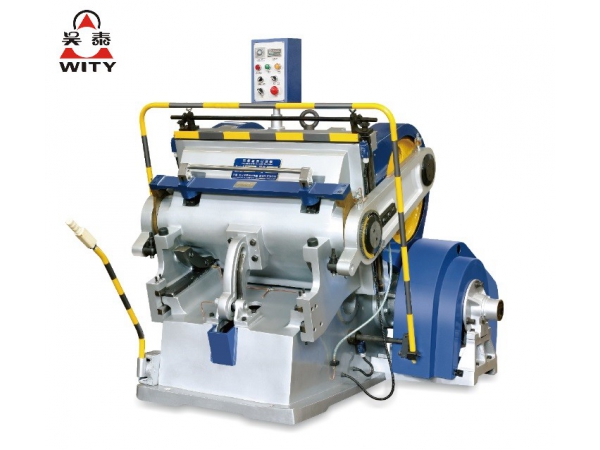

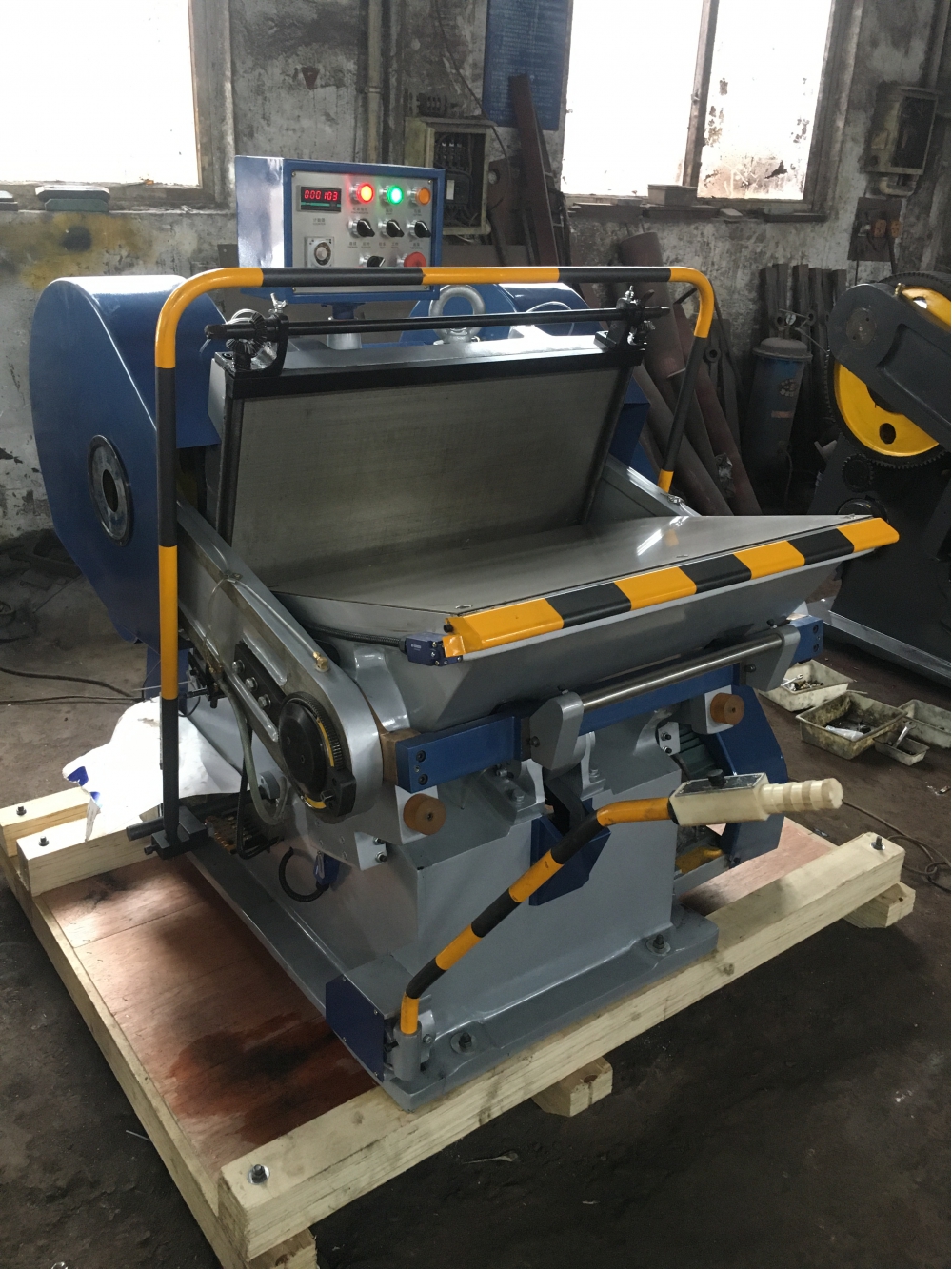

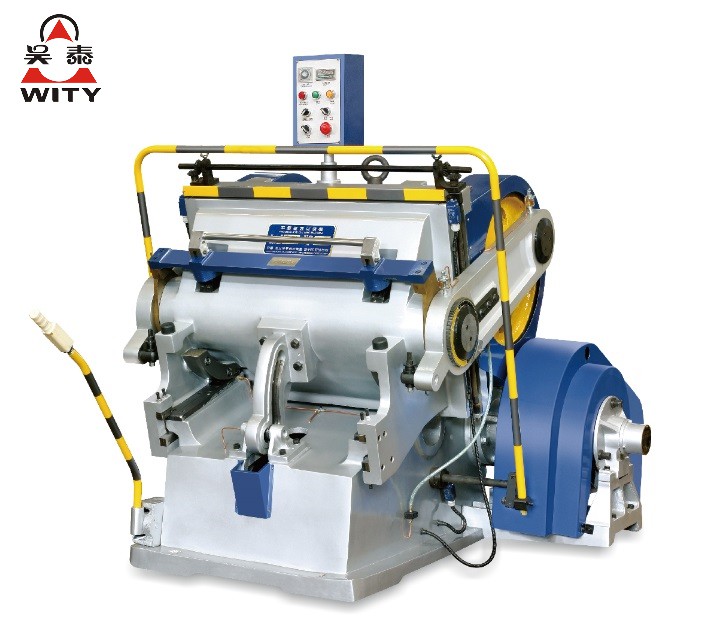

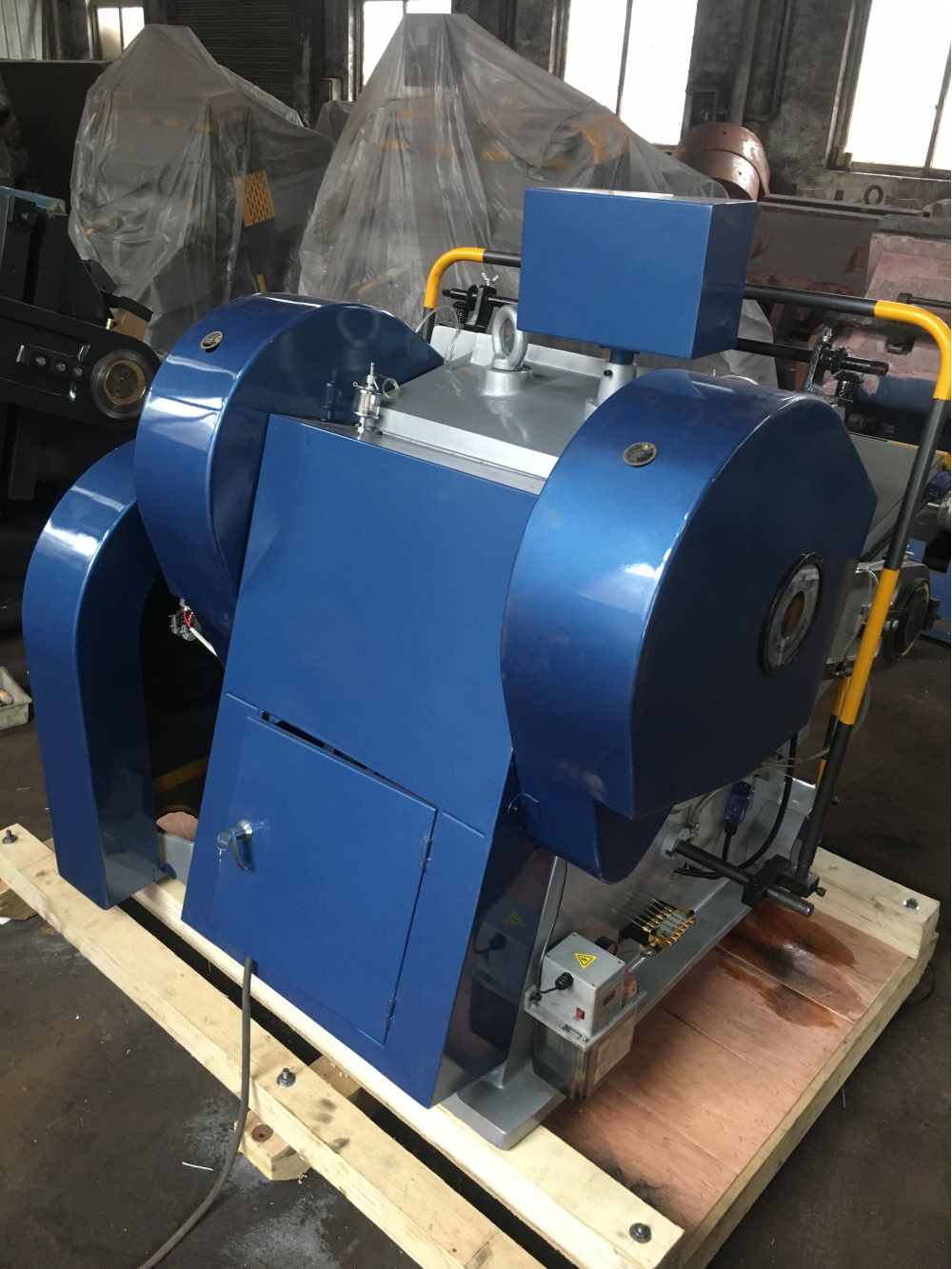

Model ML is a specific equipment for creasing and cutting flat carton board, corrugated board, plastic and leather plate, etc. which are used for print pack decoration and plastic industries. ML Creasing & Die Cutting Machine features its compact structure, fine workmanship, high precision and reliable operation, etc.
Features:
1. High strength cast frame made by top quality materials.
2. Smooth running, powerful and low noise.
3. Single-chip electromagnetic clutch.
4. Well set operating height, large angle for the pressing frame.
5. Adjustable Time delaying function
6. 3 Reliable safety protection system.

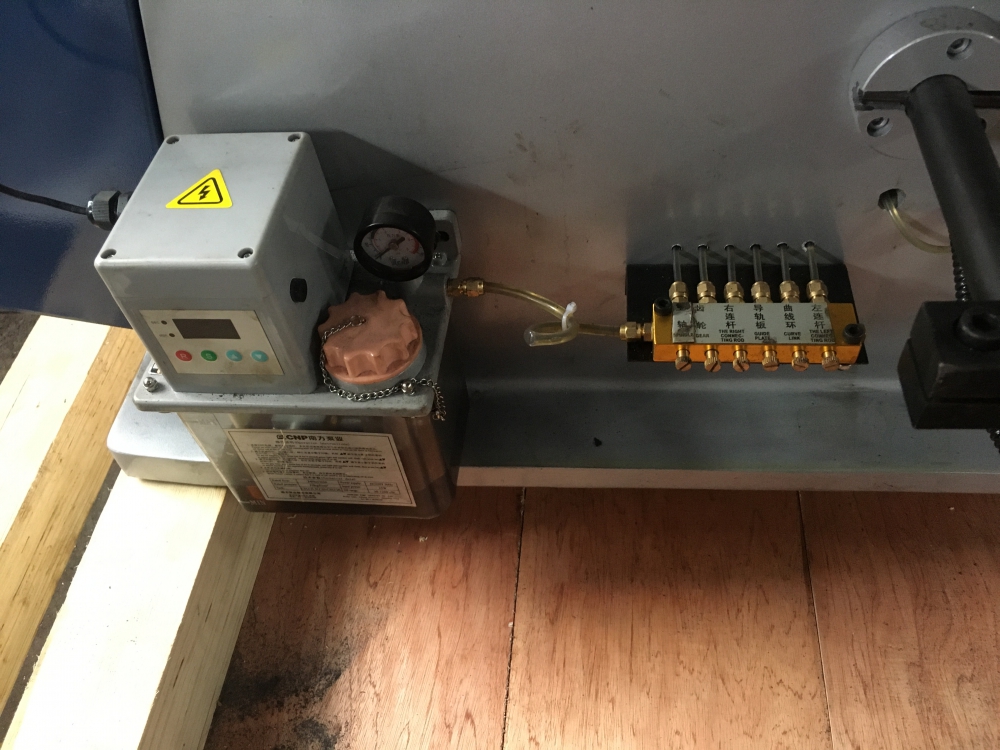

7. Centralized lubricating system
Specification:
Model | Inner chase size (mm) | Speed (strokes/min) | Max Rule length (m) | Motor power (kw) | Overall dimension (mm) | Weight (kg) |
ML750 | 750×520 | 25 | <15 | 2.2 | 1500×1400×1300 | 1700 |
ML930 | 930×660 | 23±3 | <25 | 4 | 1720×1530×1620 | 2650 |
ML1100 | 1100×800 | 20±2 | <32 | 4 | 1860×1760×1700 | 4300 |
ML1300 | 1300×920 | 18±2 | <40 | 5.5 | 2200×2200×1750 | 5300 |
ML1400 | 1400×1000 | 18±2 | <45 | 5.5 | 2200×2200×1750 | 5800 |
ML1500 | 1500×1040 | 18±2 | <45 | 7.5 | 2500×2200×1750 | 6550 |
ML1600 | 1600×1250 | 16±2 | <50 | 11 | 2500×2200×2000 | 11200 |
ML1800 | 1800×1280 | 16±2 | <50 | 11 | 2750×2300×2500 | 12500 |
ML2000 | 2000×1400 | 14±2 | <55 | 15 | 2900×2350×2700 | 17000 |
