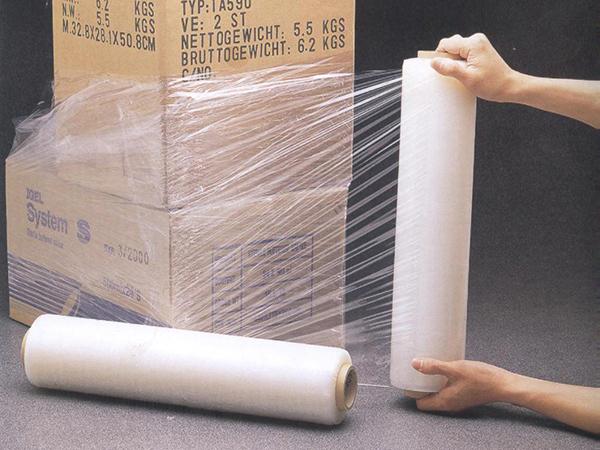

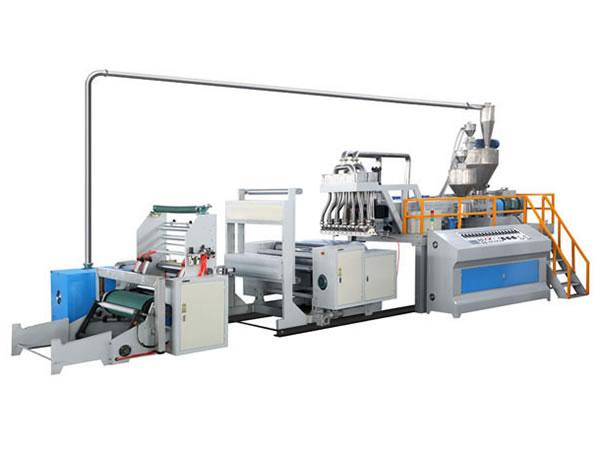

This high speed stretch film extrusion machine is our 4th generation stretch film production line, and features a high speed that can produce rolls of film in a width of 1500mm (500mm x 3 rolls) or 2000mm (500mm x 4 rolls). It uses LLDPE and LDPE granules to produce the casting stretch film, which in turn is widely used as packing material for construction parts, pallet wrapping, auto parts etc.
Technical Data:
| Model | JDCPE/90/60-1000 | JDCPE/110/65-1500 | JDCPE/130/80-2000 |
| Screw size | 90mm; 60mm | 110mm; 65mm | 130mm; 80mm |
| Screw L/O | 33:1 | 33:1 | 33:1 |
| Coating thickness | 0.01-0.03mm | 0.015-0.04mm | 0.015-0.04mm |
| Max working width | 1000mm | 1500mm | 2000mm |
| Line speed (max) | 200m/min | 200m/min | 200m/min |
| Max productivity | 180kg/h | 270kg/h | 360kg/h |
| Power load | 180kw | 230kw | 270kw |
