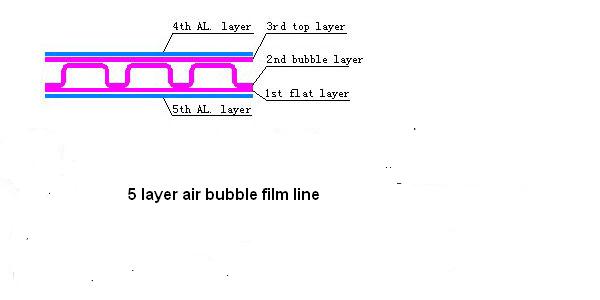

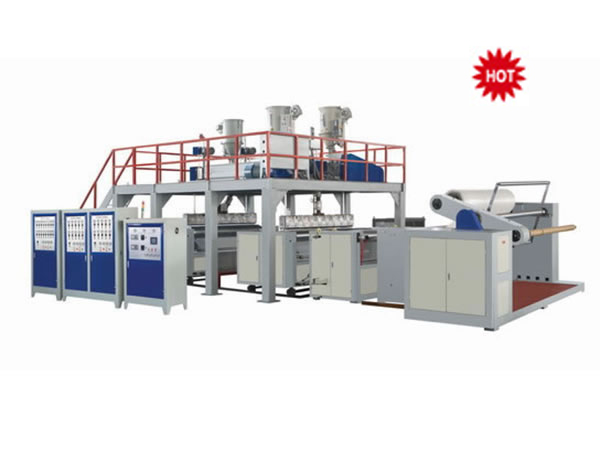

The bubble wrap extrusion plant is composed of seven main parts: the extrusion mechanism, vacuum bubble forming mechanism, trimming mechanism, waste recycle system, leveling mechanism, winding mechanism and electrical control system. It is generally used to produce 3-5 layers of bubble film, and it can be customized to a maximum of 7 layers of composite bubble film with a wide range of applications.
Applicable raw material
Main raw material: low density polyethylene (LDPE) with melt index MI=2~7;
LLDPE with melt index MI=1.0~1.5 in proper proportion;
Regenerated LDPE with melt index MI=2~4 can be used partly or wholly to make a certain width bubble film.
Parameters
| Model | JDFPE-1600B | JDFPE-1600C | JDFPE-2000B | JDFPE-2000C |
| Main extruder | Φ80mm | Φ80/70mm | Φ90mm | Φ90/80mm |
| Auxiliary extruder | Φ60mm | Φ70mm | Φ70mm | Φ80mm |
| Product’s width | 1600mm | 1600mm | 2000mm | 2000mm |
| Yield | 150KG/Hour | 200KG/Hour | 180KG/Hour | 250KG/Hour |
| Working linear speed | 25M/min | 35 M/min | 25 M/min | 35 M/min |
| Main motor power | 30KW | 30KW/22KW | 45KW | 45KW/30KW |
| Auxiliary motor power | 15KW | 22KW | 22KW | 22KW |
| Total power | 156KW | 225KW | 182KW | 284KW |
| Power supply | 380/3/4/50 (Volt/Ph/Line/Hz) | 380/3/4/50 (Volt/Ph/Line/Hz) | 380/3/4/50 (Volt/Ph/Line/Hz) | 380/3/4/50 (Volt/Ph/Line/Hz) |
| Sizes | 17000´5500´4100mm | 17000´5500´4100mm | 17000´6500´4100mm | 17000´6500´4100mm |
