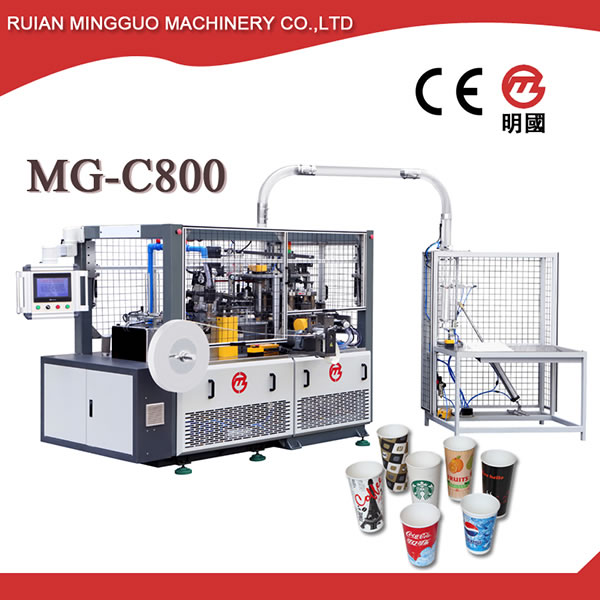

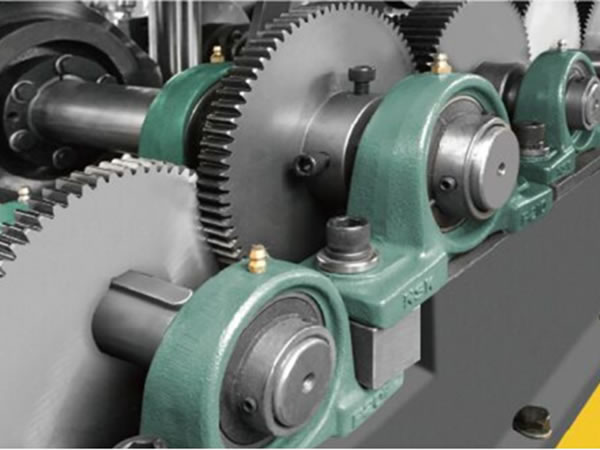

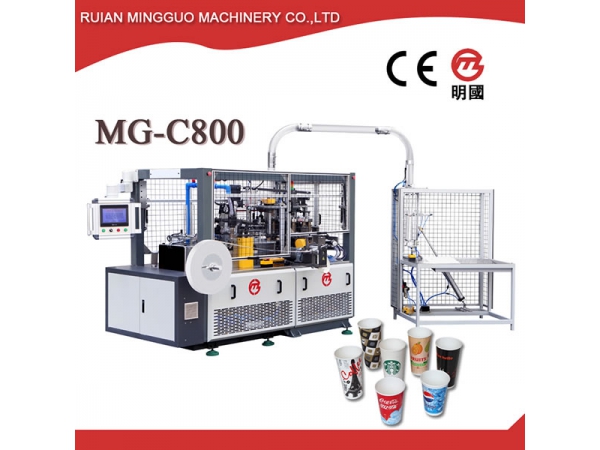

As an improved and upgraded product of single-plate paper cup maker, this kind of paper machine completes the entire forming process of paper cup by using three turnplates. In order to realize optimal functions and performance, it utilizes open cam design, interrupted division, gear drive and longitudinal axis structure.

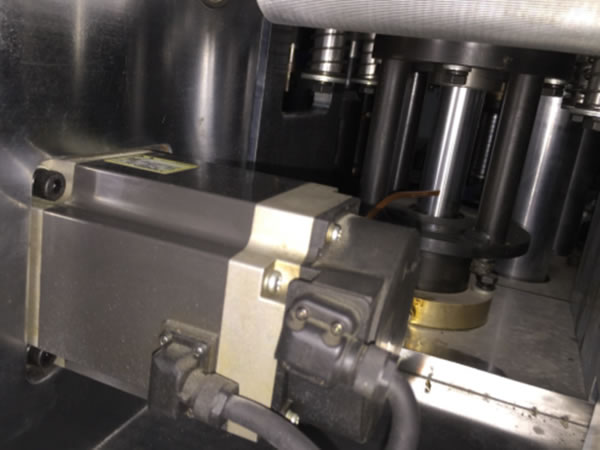

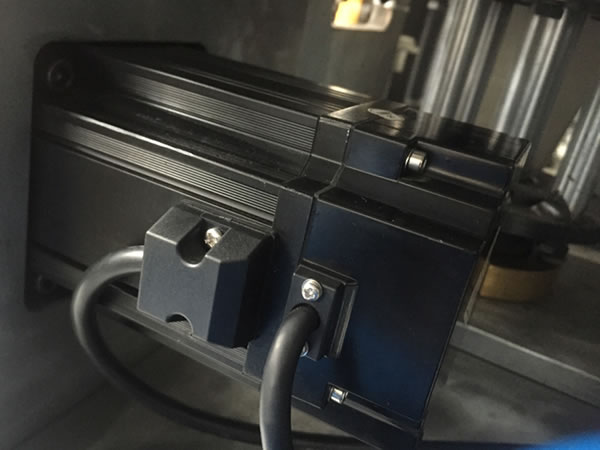

When it comes to PLC control, by utilizing a photoelectric sensor and servo control feeder, the paper cup former ensures a high speed and stable operation and achieves a significant decrease in labor cost. In addition, this paper container making equipment will automatically shut down when any malfunction is detected.
With the assistance of a CCD image detecting system (optionally), cups that are broken, stained or defective can be picked out. This effective system achieves no manual intervention and reduces secondary contamination of product.
This kind of paper cup machine equals to one piece of equipment that integrates all cup making procedures, including paper feeding, sealing, cup bottom feeding, heating, knurling, cup-mouth curling, discharging, testing and counting. It's an ideal choice for making cups of 50-135mm high.
Maintenance of MG-C800 automatic high speed paper cup forming machine should be carried out in strict compliance with the maintenance guidance.
1. Every component should be cleaned up carefully.
2. For sanitation and cleanliness, a fixed schedule should be maintained to clean and wipe the machine. Greasy dirt should be removed from the paper, die and roller. The machine must be kept from paper scraps, dust, plastic rolling, etc.
3. Glycerol can be used to lubricate the entire machine.
All machines are packaged by wooden case.
1. A user guide is included to assist with the machine installation and adjustment and help solve problems that may be encountered.
2. The MG-C800 automatic high speed paper cup forming machine will be adjusted one week prior to delivery to make sure it is in perfect condition.
3. Technicians are available to guide the installation and adjustment on site. This service would be at the buyer's expense, which includes the technician's salary ($100 USD/day), traveling expense, accommodation, consulting fee, etc.
4. Free training is available and ongoing until the operator fully understands the operation and maintenance of our machine. The buyer should cover traveling and accommodation expenses of our technicians.
5. Our company provides wearing parts at no charge for one year.
1. We offer a one-year warranty for the MG-C800 Automatic High Speed Paper Cup Forming Machine from the shipment date.
2. The warranty does not cover normally worn components.
3. We will not be responsible for any damage caused by misuse, improper handling, negligent maintenance, intentional injury or other damages.
