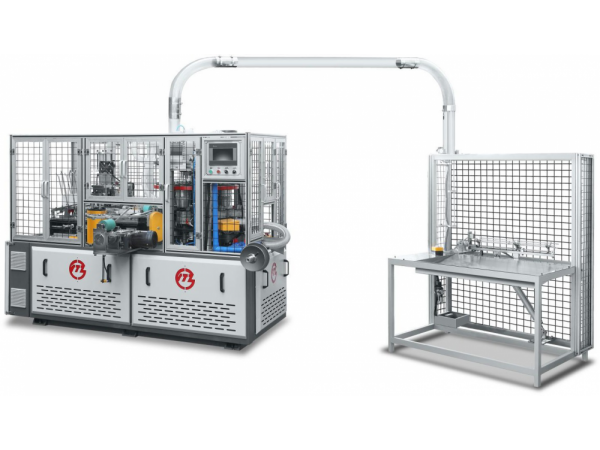

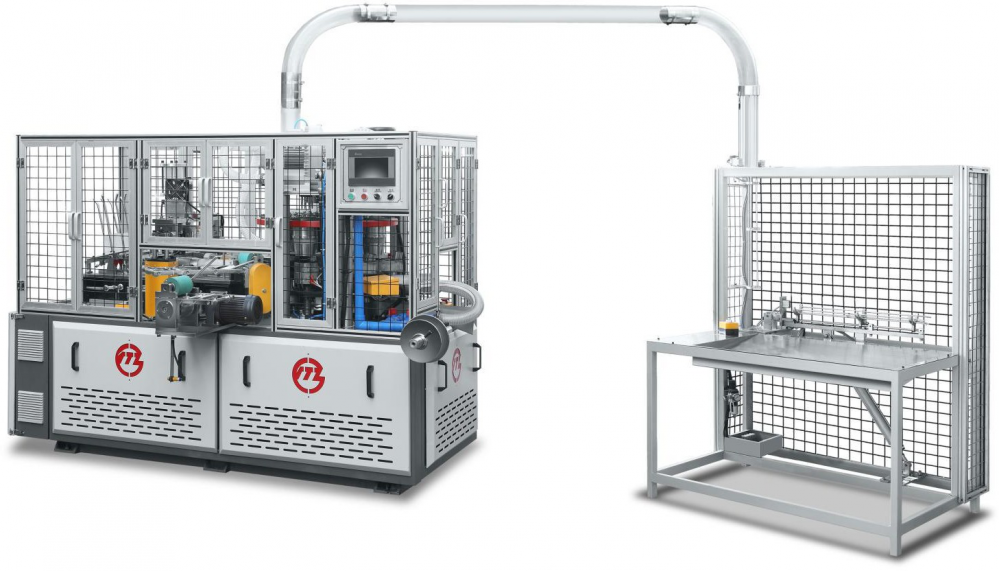

MG-B600, a newly developed from three turn-plates old type bowl machine, achieves a manufacturing speed of 45-80pcs/min. This piece of paper converting equipment provides a multi-station design and is able to make single and double PE coated beverage bowls, ice cream bowls. In addition to that, this integrated automatic paper container forming machine combines all these processing procedures together: paper feeding, sealing, bottom cutting, lubricating, heating, knurling, curling and collecting.
TECHNICAL SPECIFICATION
Model | MG-B600 |
Paper cups specifications | 5-80oz (150ml-3000ml)(mold exchangeable) T:180/50MM H:110/35MM B:165/50MM |
Paper specification | 150-350 GSM single/double PE coated paper |
Production capacity | 40-80 pcs/min |
Voltage | 220V/380V |
Total Power | 8KW |
Air supply requirement | Air pressure: 0.4Mpa, Air Out-put: 0.4cbm/minute |
Total Weight | 3500KG |
Dimensions | 2600mm*1300mm*1600mm |
Note | Customized service is available |
