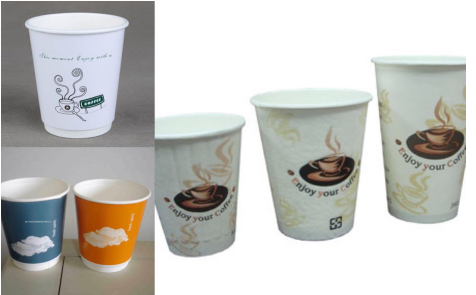

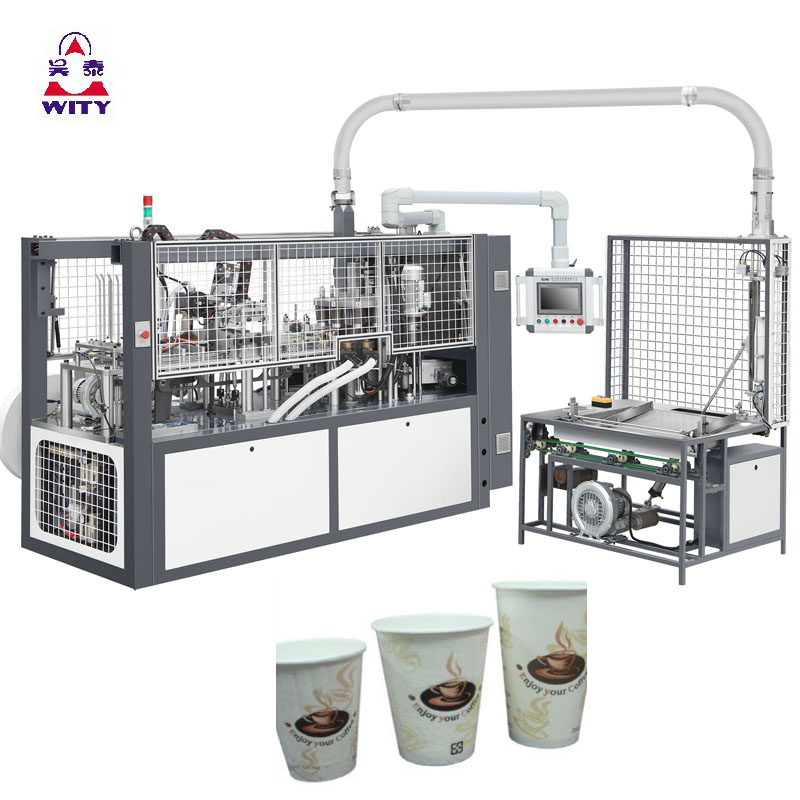

JBZ-H High Speed Paper Cup Forming Machine is a high speed automatic machine with multi-working station. It products single and double side PE paper cup through the procedure of automatic paper feeding, sealing, silicon oil lubrication, bottom punching, heating knurling, curling and cup can be of for beverage, ice cream etc.
Cup size | 6~12oz (to out diameter:∮60mm~∮110mm, bottom: ∮50mm~∮70mm, height: 50~135mm, depth of bottom: 5~10mm ) |
Rated speed | 90-110pcs/min |
Main motor power | 2.2kw |
Electro thermal power | 8.6/13.2kw |
Actual power consumption | 7.5kw |
Air source | 0.8 m3/min :0.6Mpa |
Applicable base paper | 190~350g/ m2(single or double PE coating paper ) |
Weight | 3500kg |
Packing dimension | 740x400x1700mm and 1150x650x2000mm |
Remark | Paper thickness error margin is ±0.05mm for the same set of mould |

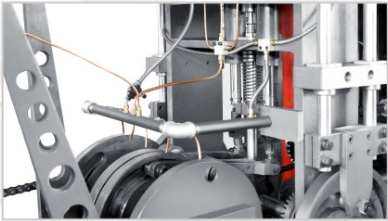

Oil spindle lubrication system and integrated steel structure frame |
