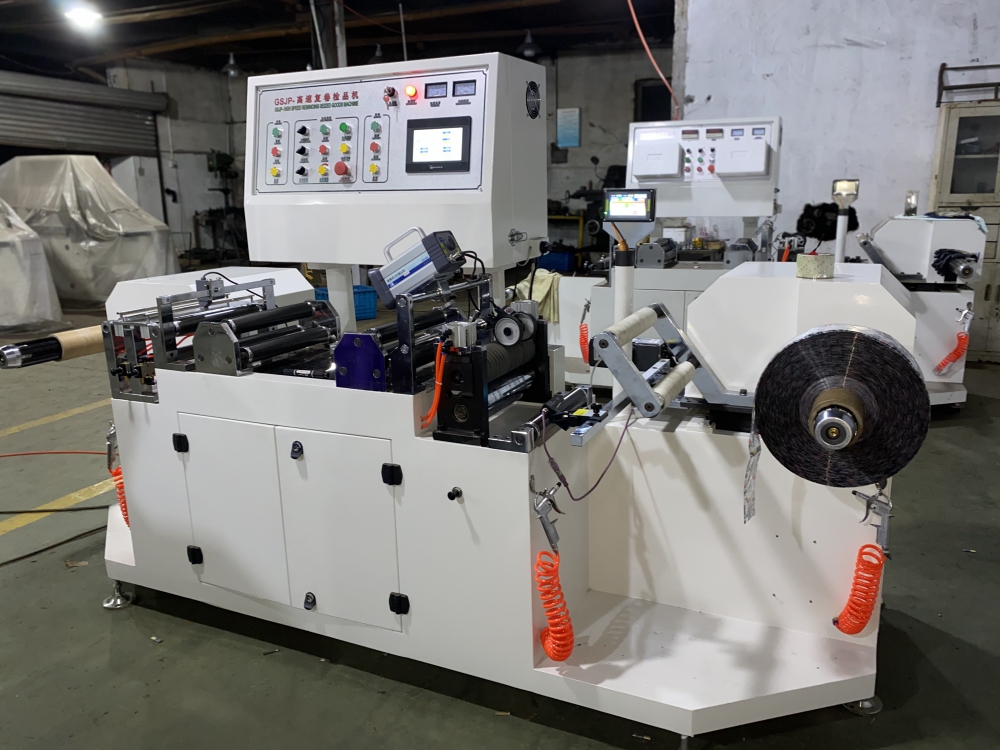

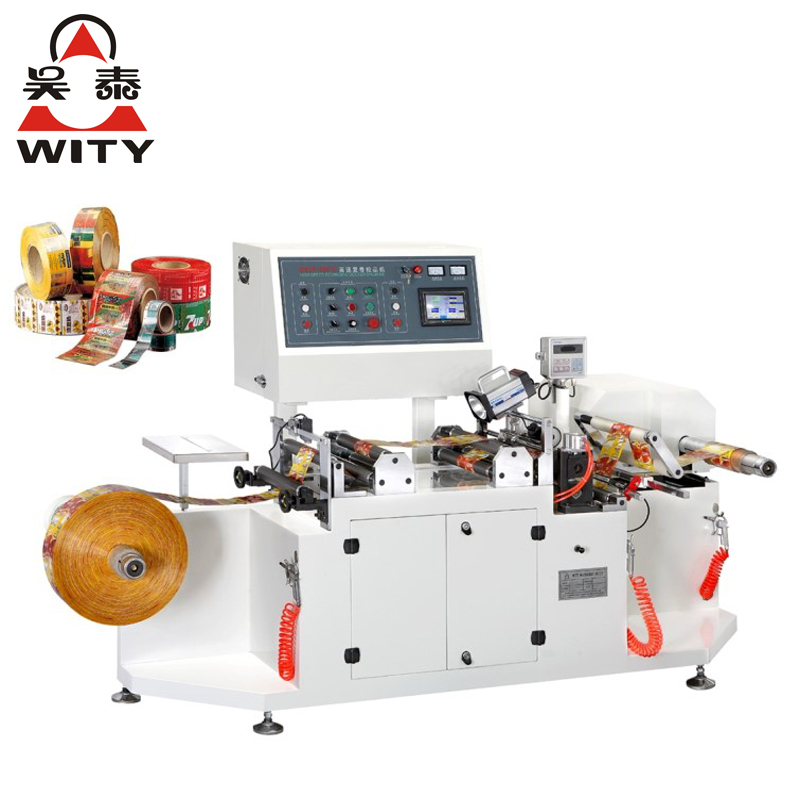

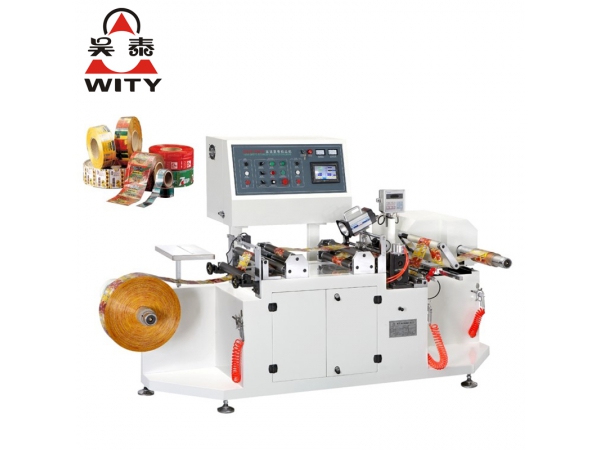

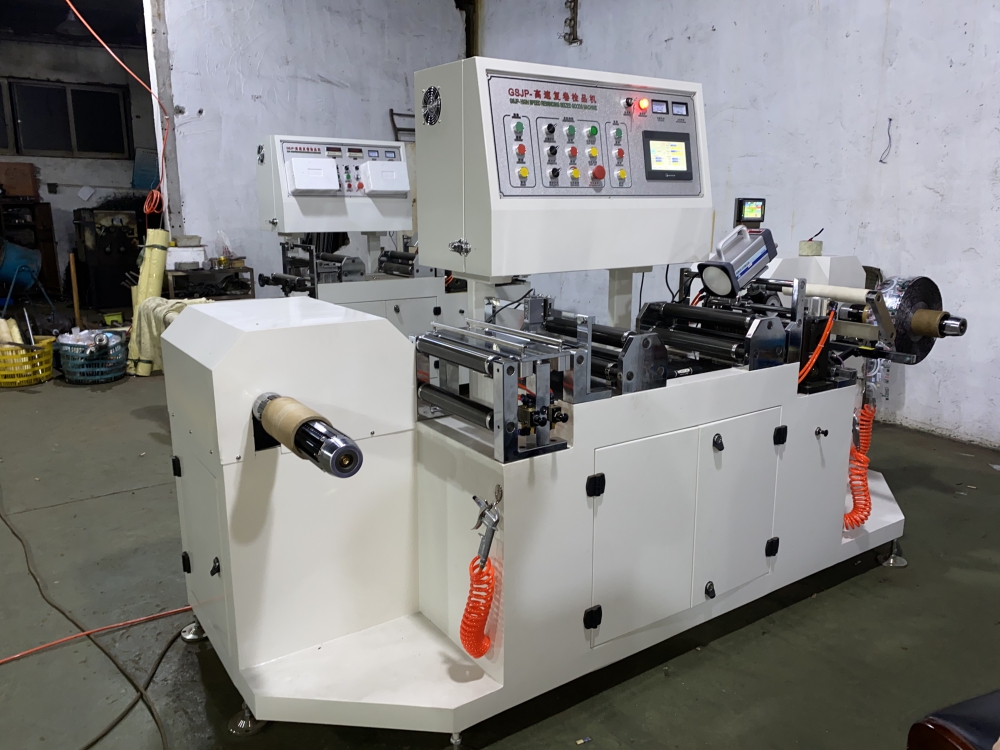

This machine is special designed for rewinding and quality control the film reels, especially for PVC/PET colorful shrink label. During the process of rewinding can inspect the label printing quality and sleeve gluing quality. Simple construction. Easy to operate and maintain.
Specification
Max inspection width | 300mm |
Unwinding diameter | 700mm |
Rewinding diameter | 700mm |
Mechanical speed | 330m/min |
Max seaming speed | 300m/min |
Material Core Inner Diameter | 76 / 3" |
Total power | 3.5kw |
Machine weight | 870kg |
Overall dimension | 2700×1100×1650mm |
