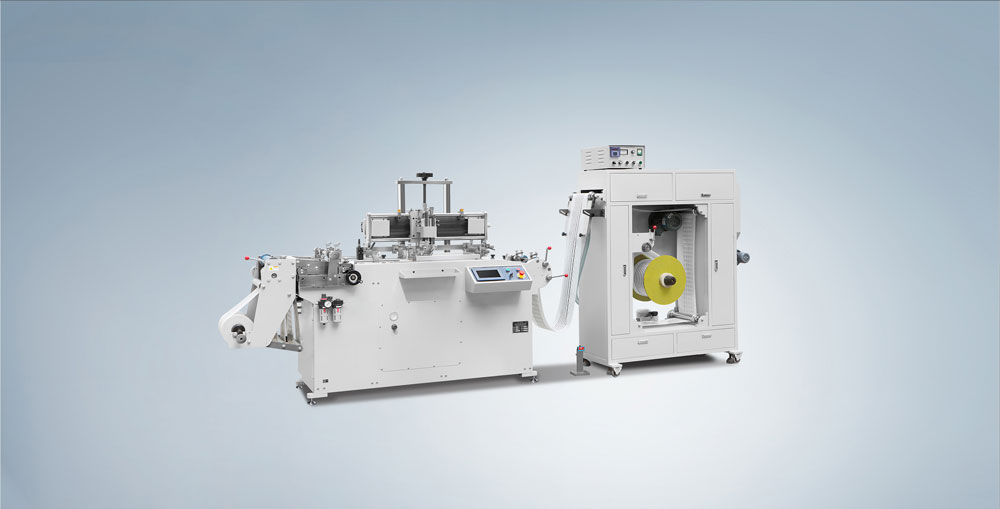

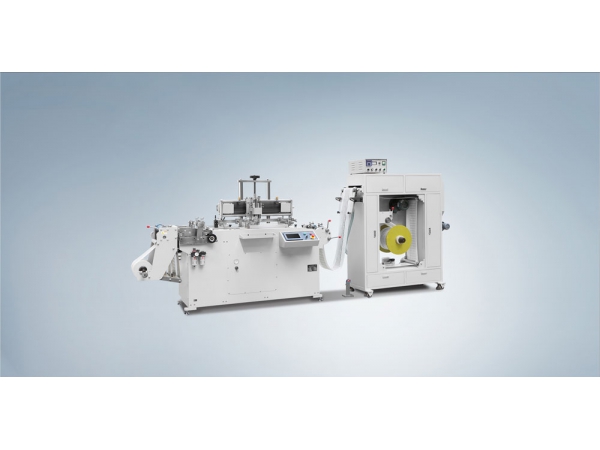

The machine is used for printing reel material, such as PVC, OPP, Dacron, Security mark, adhesive tape, etc. The material towing is controlled by servo motor, the main machine driving part adopts pneumatic device,and the web-guiding is tracked by photocells.The machine has the characteristics of high accurate color register, steady material-feeding, automatic counter and alarm, convenient adjustment and compact sturcture, etc.
Main Technical Parameters
Model WQ-320 Printing speed 10-50 Times/Min Max.unwinding diameter 450mm Max.web width 320mm Max.printing width 300mm Max.printing length 320mm Accuracy ±0.15mm Main motor power 1200w Oven power 4100w Dimension(L×W×H) 2400x950x1500mm Oven dimension(L×W×H) 1750x600x1800mm Machine weight (About)1100kgs
Note:*=Options
*option：UV dryer system
