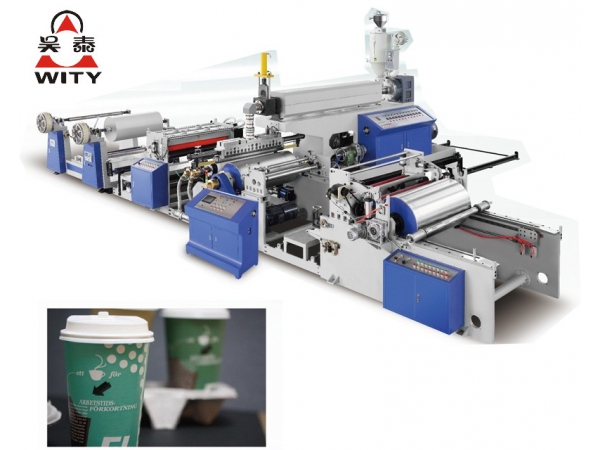

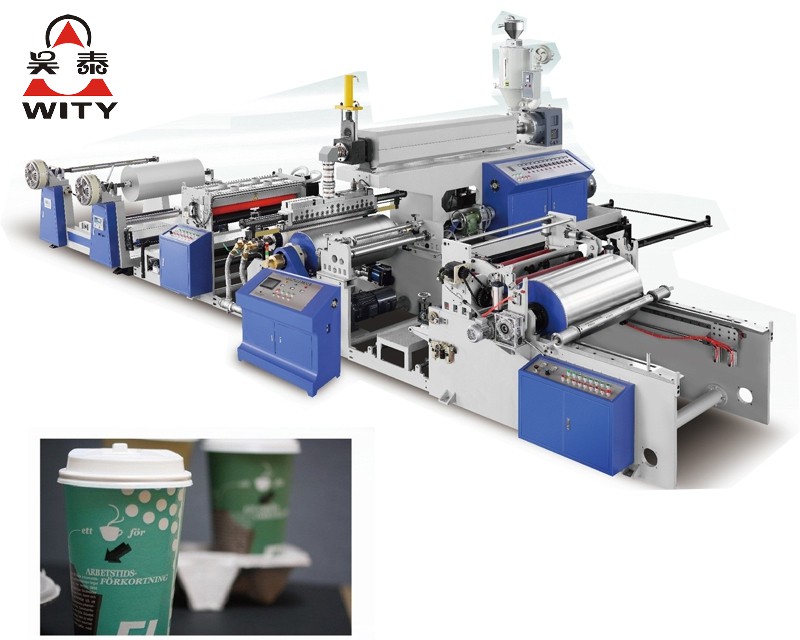

This machine can accept LDPE、PP、EVA、EAA lamination grade material, which is used for film(BOPP, BOPET, CPP, CPE...etc), paper, aluminum foil, non-woven, etc. The products are widely used in medical packaging, food packaging, office packaging, industrial packaging and other packaging.
Technological process
Unwinding→Material Feeding→Corona Treatment→Extrusion Lamination→Trimming→Winding
Specification
Model | LM 1700/105 |
Screw Dia. | φ105 mm |
L/D | 33:1 |
Finished Film Width | 800-1600mm |
Lamination Thickness | 0.01-0.10 mm |
Usable Resin(Coating Grade) | LDPE、LLDPE、PP、EVA、EAA |
Design Line Speed | 210 m/min |
Max. Extrusion Capacity | 330kg/h |
Main Motor Power | 55 kw |
Total Power | 165kw |
Dia. of Main Unwinding | ≤φ1300 mm |
Dia. of Winding | ≤φ1300 mm |
Weight | 15t |
Overall Dimension(L×W×H) | 10000×12000×3200 mm |
Power Supply | 380/3/4/50(Volt/Ph/Line/Hz) |
