Features

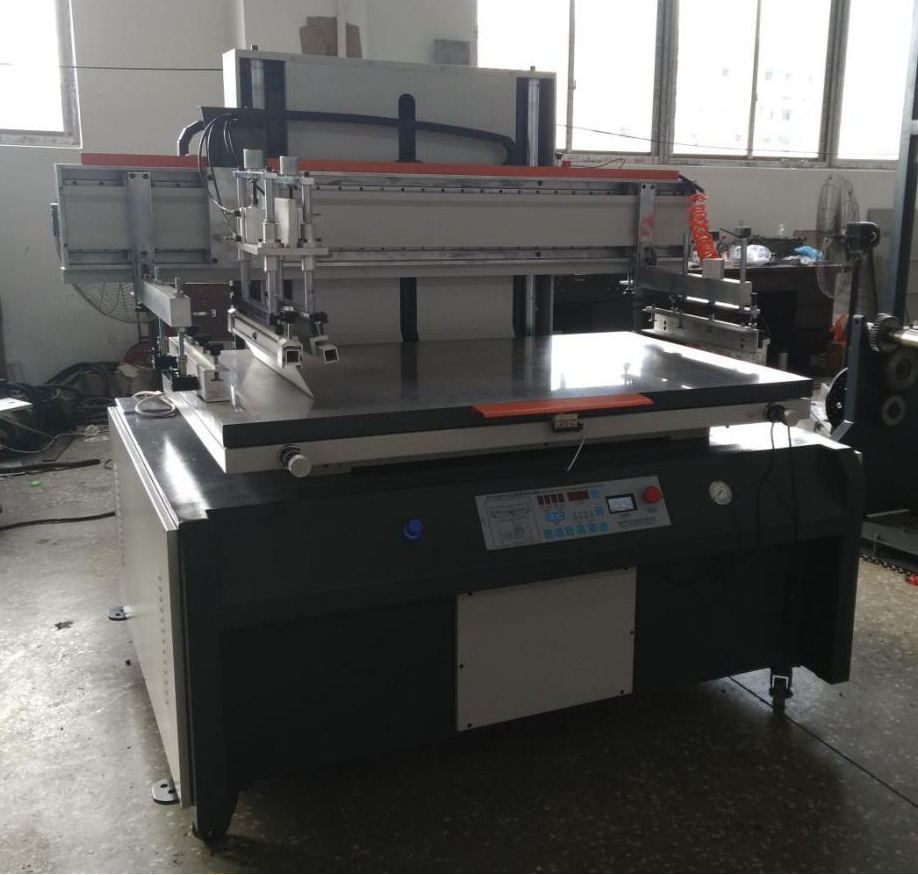

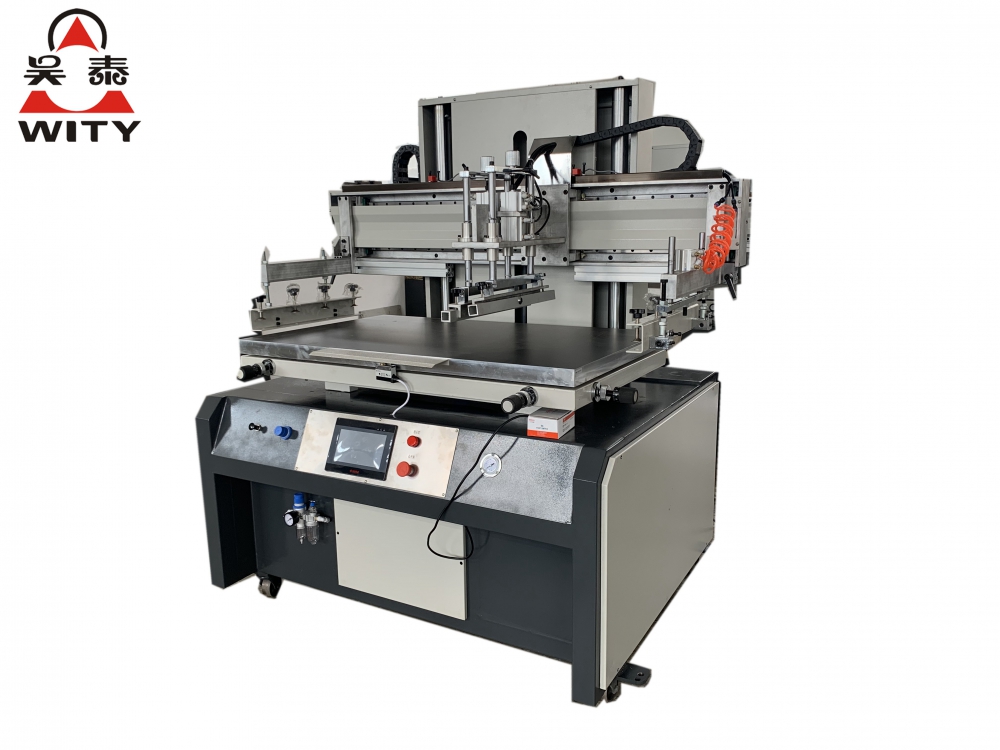

Vertical structure with the motor driven printing plate goes up and down vertically, and the motor driven print head moves left/right.

Single chip controlled circuit, printing and plate goes up and down using independent driving source.

Pneumatic controller controls the printing knife to move up and down and photocell eye controls the stroke, which is independent to tune.

Set three modes of manual/semi-automatic/automatic, the break time of printing is digital controlled.

Independent deigned head rising and down setting, makes it convenient to clean the scraping blade/reclaiming blade, screen plate during loading and unloading.

Double guide column masters the clamps arm and install the adjusting device to adjust the distance between plates at the same time, which is convenient to tune.





Specification

Model

WPKH-80120

Max. printing dimension

800 x1200mm

Max. dimension of the frame

1100 x1 600mm

Dimensions of the workbench

900 x 1400mm

Printing to thickness

~40mm

Height of instant off-network

0-20mm

Printing speed

600pcs/h

Weight(Kg)

900kg

Overall dimensions(mm)

1760x 1270x1750mm

Printing motor

0.4Kw

Printing shaft

2.2Kw

Wind machine

1.5Kw

Power

4.1Kw
