The machine can work for PLA/PBS/PE all in one machine

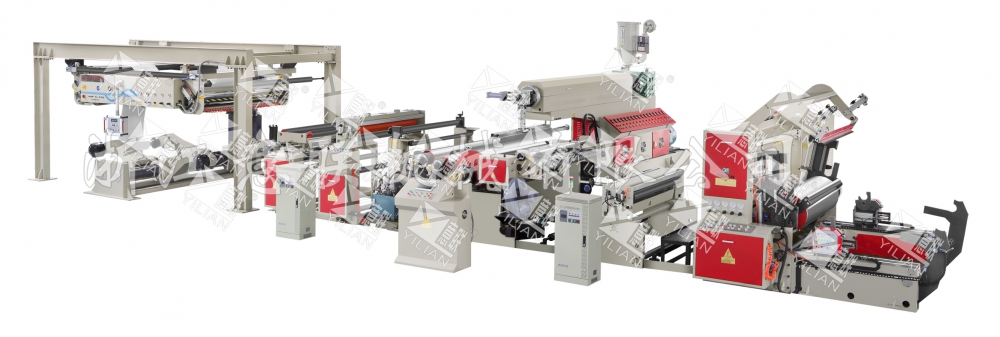

WSFM Models coating and lamination machine suitable to coat paper start from 70gsm-400gsm ,lower than 70gsm and over 400gsm should be customized .
Machine speed maximum 200m/min without decrease speed to change materials .So far it is the most popular in cup paper business field and craft paper
For food packages business field .
machinery specification
| 1100/90mm;1300/100mm;1500/105mm;1800/110mm |
speed of coating film | 150/180/200 m/min |
suitable coating resin film | LDPE/PP/EVA/EAA |
suitable base material
| BOPP/BOPET/BOPA/CPP/CPE/PAPER/AL/NONWOVEN |
width of coating film | 1100/1300/1500/1800mm |
thickness of coating film | 0.012~0.1mm |
inaccuracy thickness of coating film | ≦±5% |
complex cooling roller | Φ500/Φ600/Φ700 mm |
screw specification | （L/D）Φ90：33;Φ100：33;Φ105:33;Φ110:33 |
main unwinding diameter | Φ800-1500mm |
diameter of auxiliary unwinding | Φ600mm |
diameter of rewinding | Φ800-1700mm |
