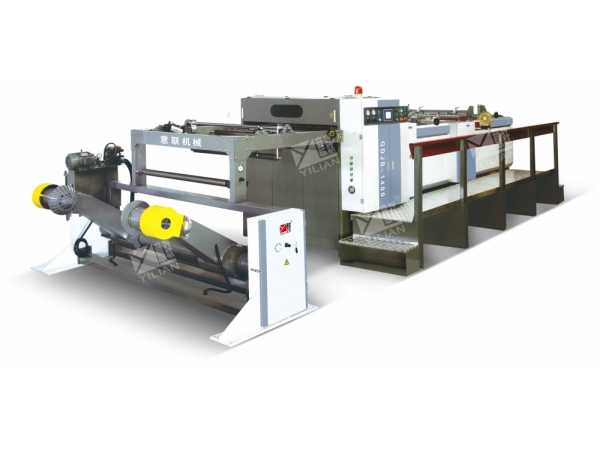

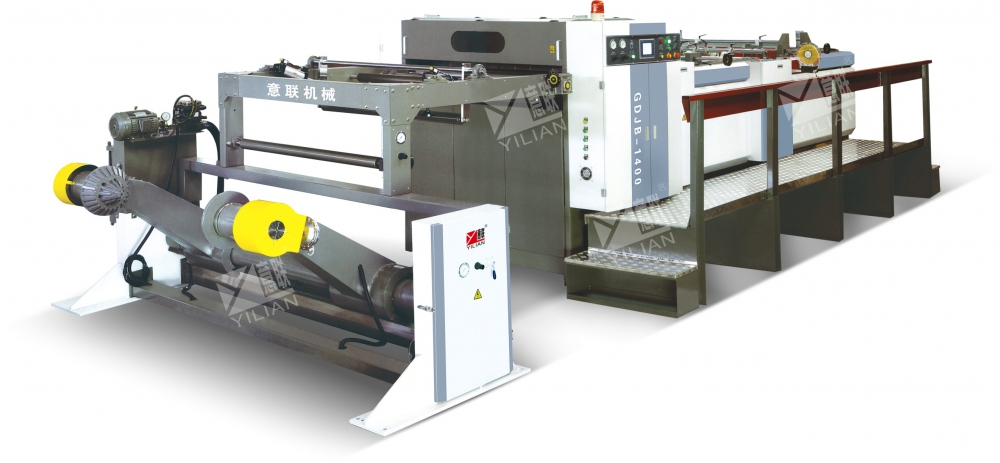

GDJB Series Hob Type Servo-driven Computer Paper Cutter is an economic paper cutter which is developed by our company integrating the advanced product .This machine is driven by AC servo motor motion controller made in UK is quipped and stable paper cutting .

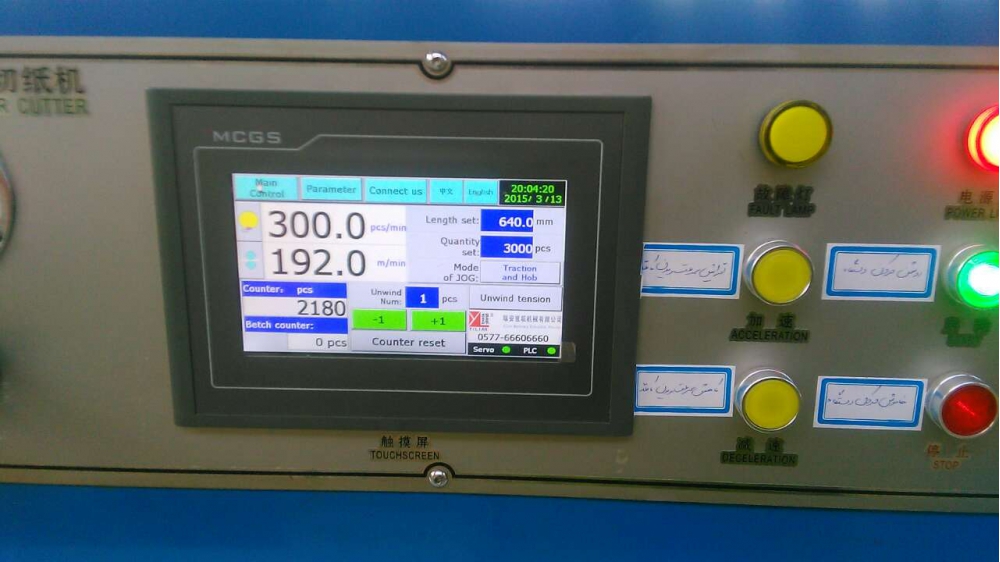

It is equipped with precision bearing and cutter ,hence a high cutting precision and long service life.The gentle-touch PLC interface is fine and convenient .The rational designed recurvate frame can guarantee flatness to paper .it keeps ahead in other similar processing machines of paper article and printing industries,so it will improve your production efficiency in duplication and raise your productivity and benefit.
Model | GDJB-1400 | GDJB-1700 |
Model of cutter | Up rotary knife,down knife fixed | Up rotary knife,down knife fixed |
Paper thickness | 100-450g/㎡ | 100-450g/㎡ |
Max.Unwinder dia. | 1600mm | 1600mm |
Max. Paper width | 1300mm | 1600mm |
Cutting length | 450-1450mm | 450-1450mm |
Max. Cutting speed | 300 sheet/min | 300 sheet/min |
Cutting accuracy | Cutting length under 1300±0.2mm | Cutting length over 1300±0.5mm |
