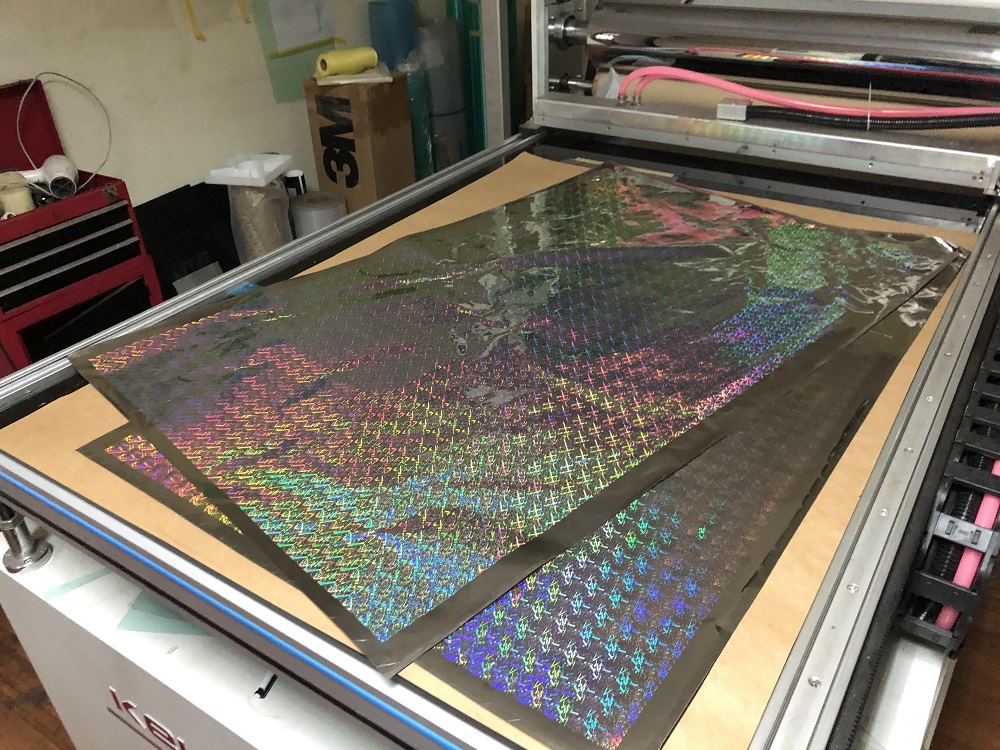

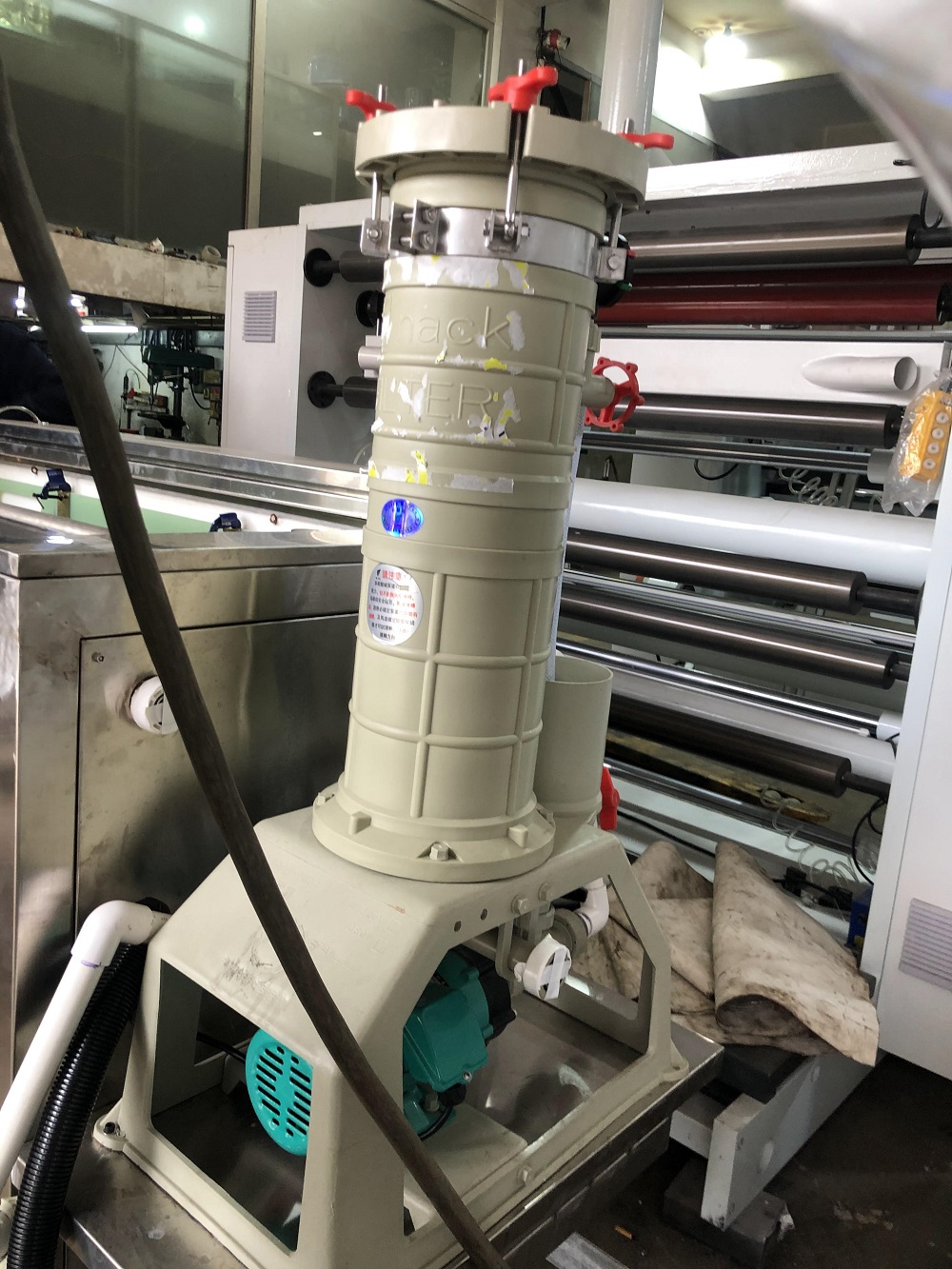

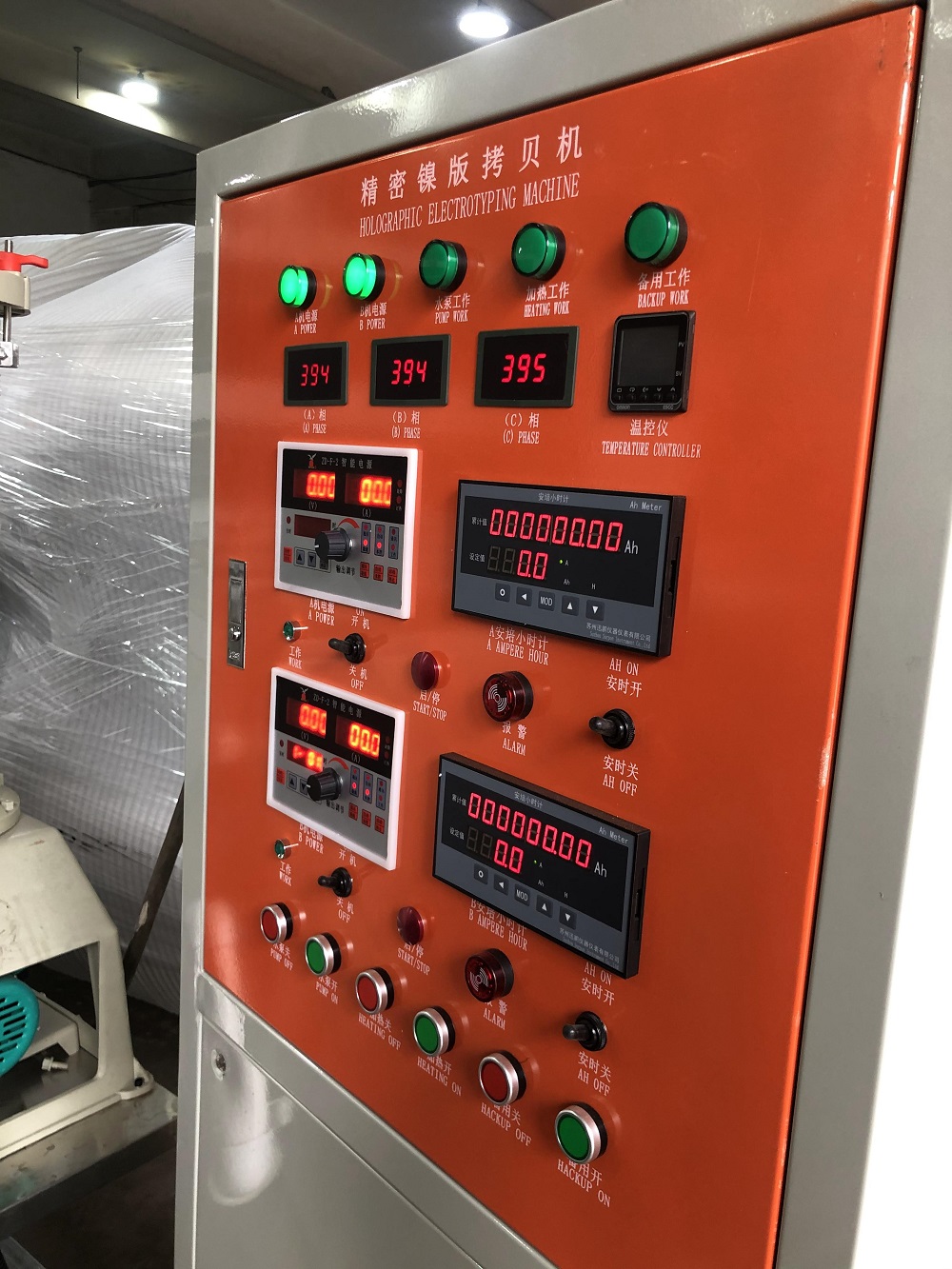

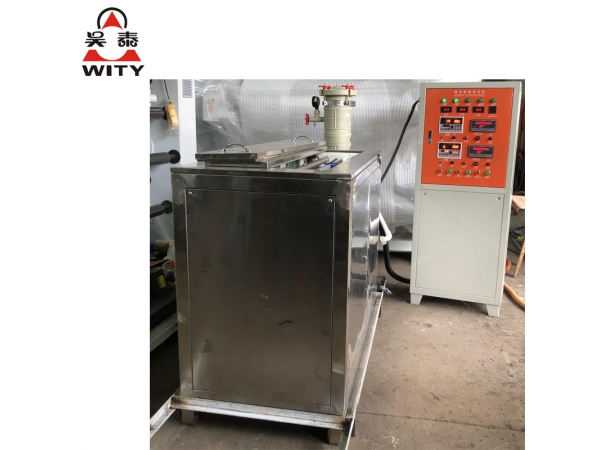

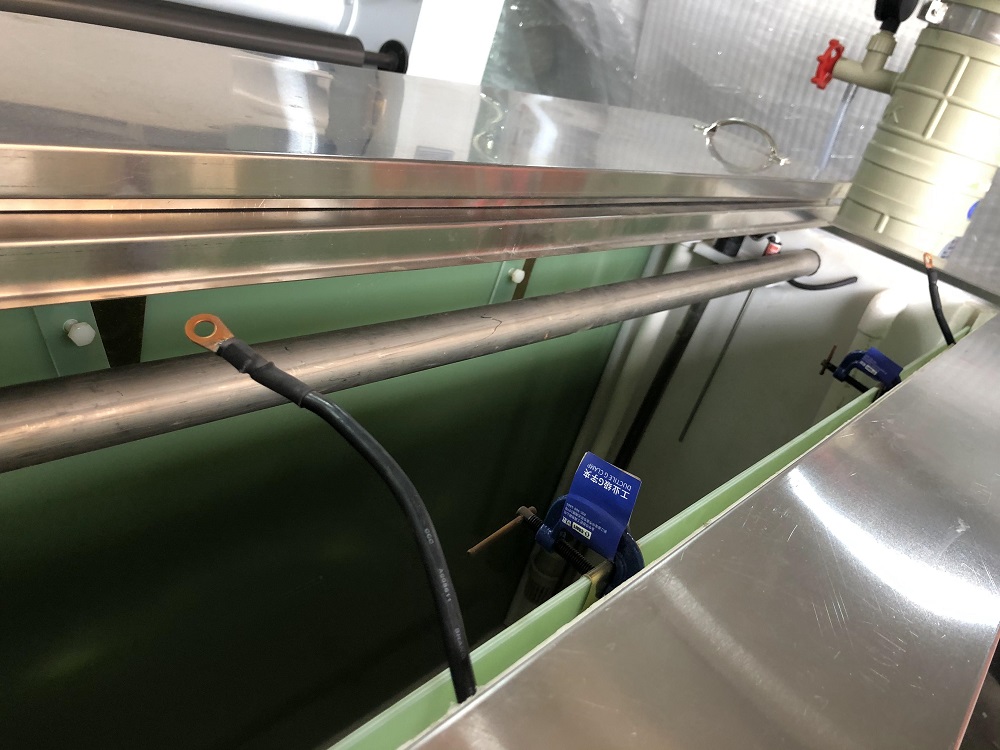

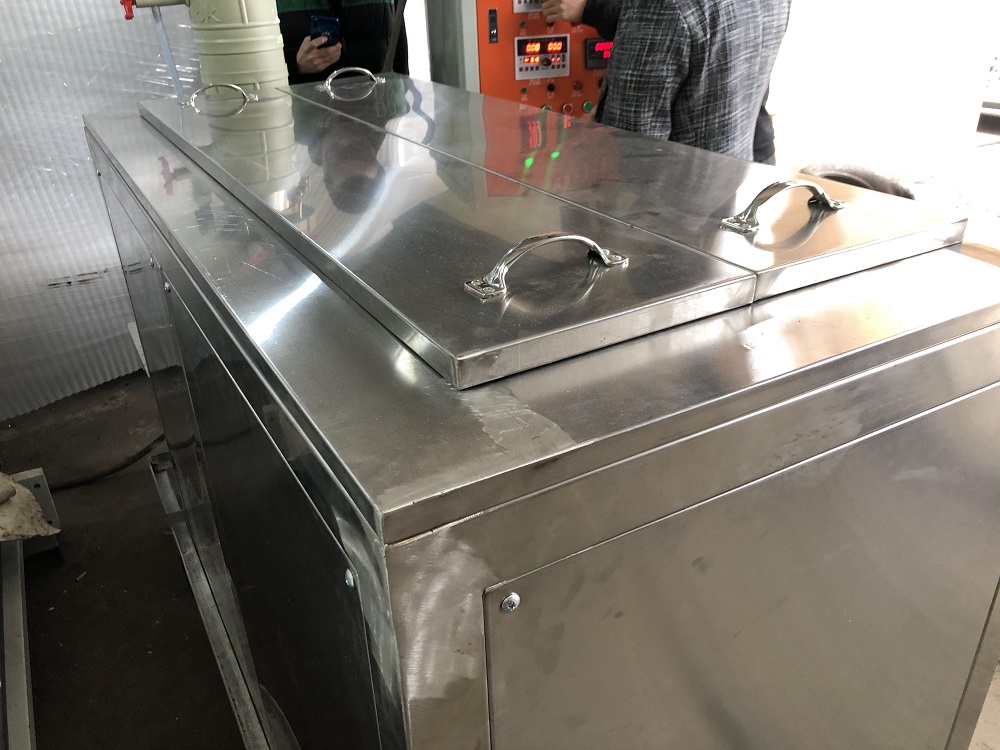

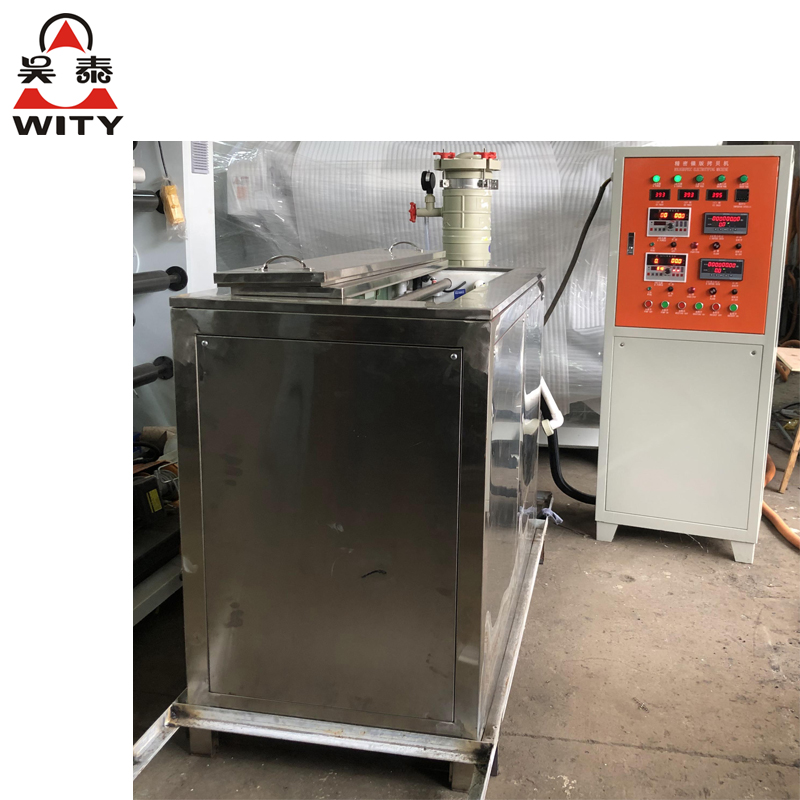

It's the special plate-making system as auxiliary equipment of laser holographic embossing press. Based on a mature technology, it's excellent in copying performance and high in fidelity, which features units as follows: Electrotyping Unit Centrifugal Filter Pump Electric Heating, Positive Electrode. Chemical Solution, Nickel Bowl Positive Titanium Basket 6 Electronic Control System
Technical Parameter
Product model 500mm
Input voltage AC220V
Rated power 3KW
Working current DC200A
Working voltage 15V
Cathode area 300*400mm
Plating bath cubage 80L
Plating bath temperature 38℃~45℃
Amper hour set 0-999.9amperhour
Pool overall size 700*700*600mm
Overall size of control tank 600*550*900L
Weight 150KG
