Features

1. Equipped with high precision alloy steel coating heads, outstanding coating result is achieved by the hot melt coating equipment.

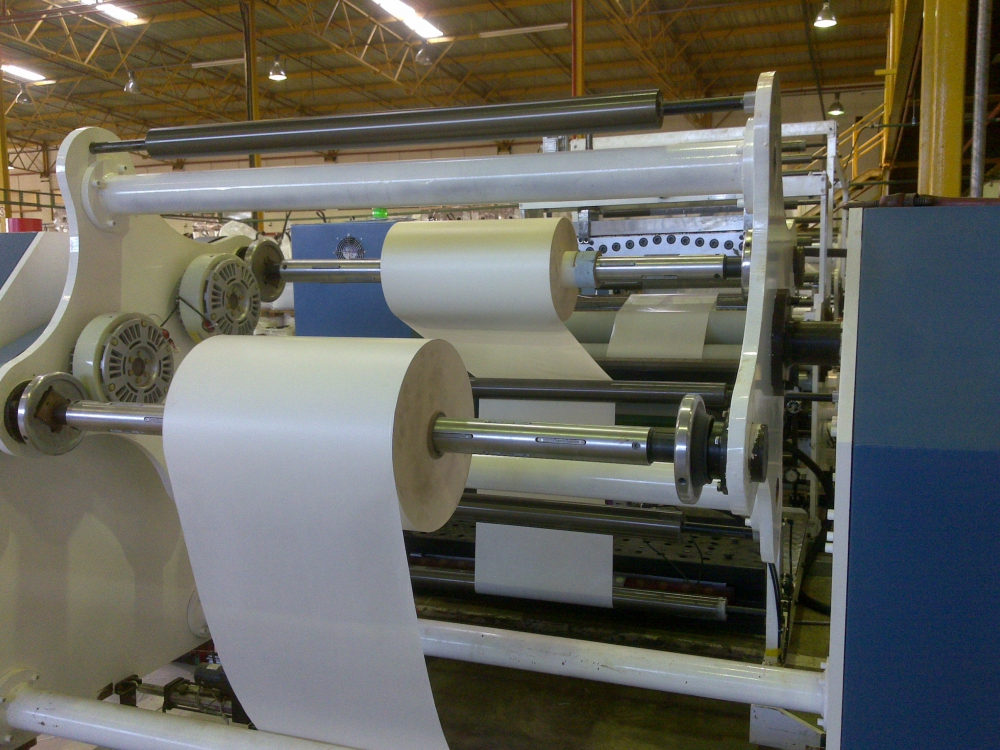

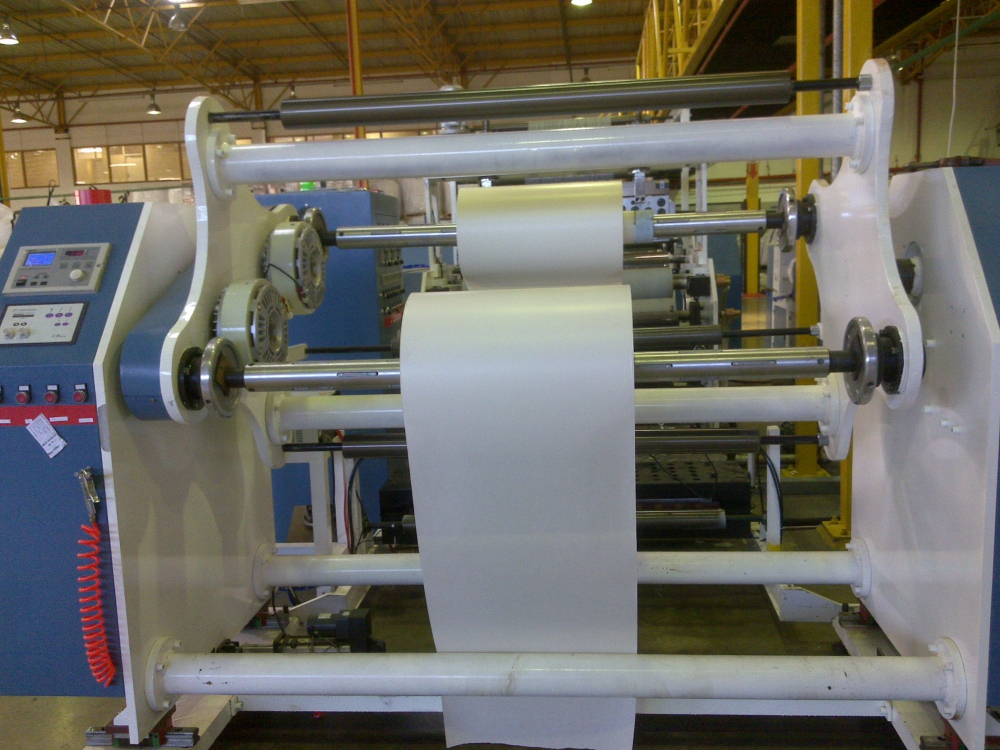

2. The high speed hot melt coater is designed with two stations for rewind/unwind. Roll change can be quickly carried out without machine stop, minimizing the material waste.
3. Simultaneous two-sided coating improves the coating quality.
4. High coating speed up to 150m/min
5. Automatic roll change greatly enhances the working efficiency.

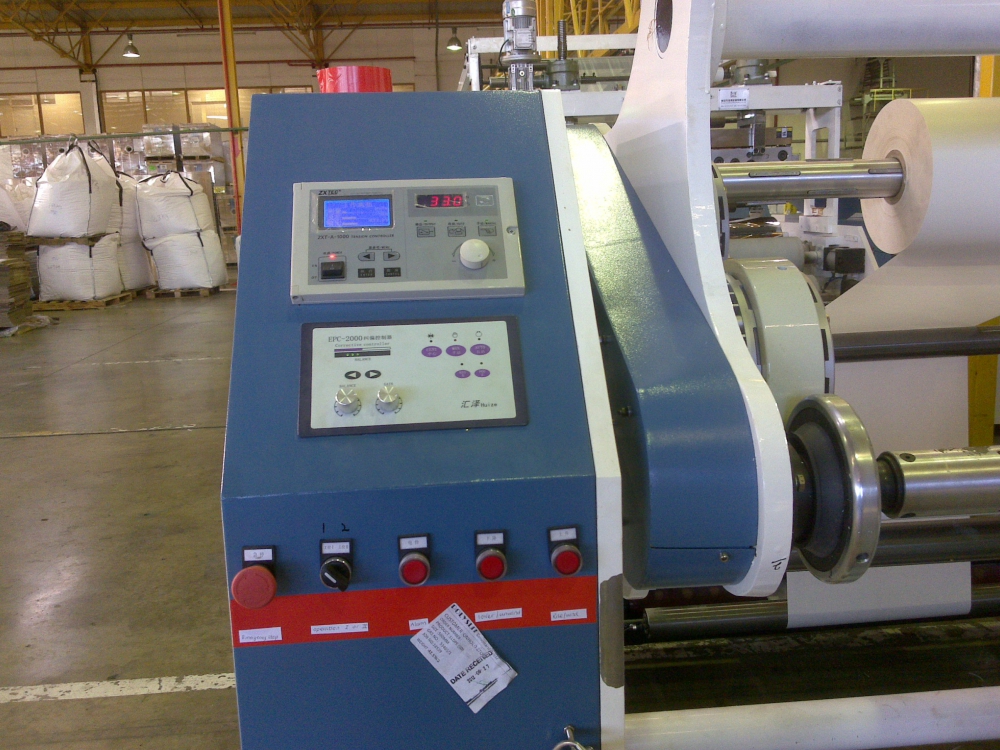

6. The hot melt coating equipment comes with a material tension control system and an automatic tracking system, ensuring extremely even and consistent coating on the substrates.



Technical Parameters

Model

RT2-150

Coating Width

400-2500mm

Coating Weight

15-200g/

Coating Speed

150M/min

Unwind Roll Diameter

1000mm

Rewind Roll Diameter

1000mm

Web Guiding System

2 sets

Length

12300mm

Height

1350mm
