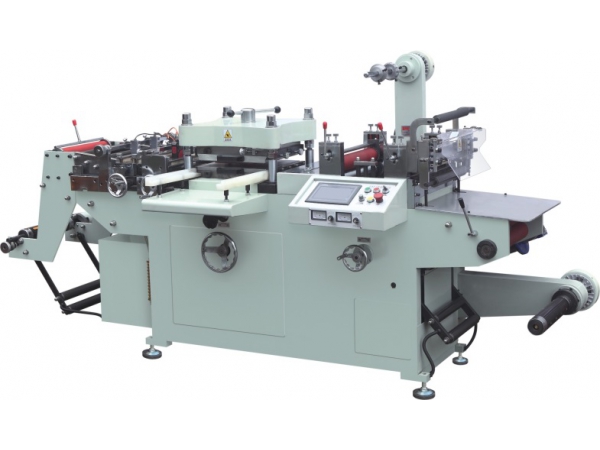

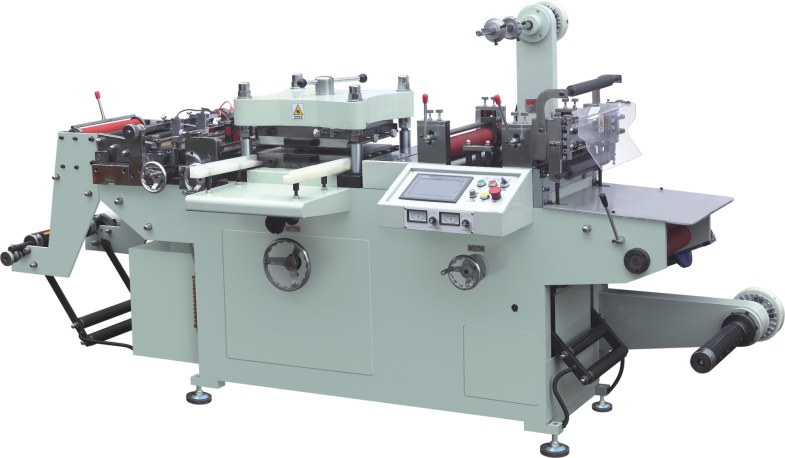

Flatbed die cutting process is a fabrication process which employs a flatbed die cutting press and steel rule dies to convert material into custom shapes and designs. YS-350A flatbed die cutter adopts advanced electric components to achieve a die cutting speed of 30~220 times/min. Laminating, die cutting, material feeding, waste removal and winding process are all automatically controlled by the computer. In this flatbed die cutting machine, a photoelectric sensor can detect the position of web to ensure the cutting precision and consistency. Gold stamping function is optional.
Applications
Die cutting of labels of different materials: paper, cloth, adhesive laminates, plastic/polymer films, etc.
Application industries: electronics, packaging, clothing, digital printing, nameplates, etc.
Working with high-speed label printing machine, flexo printing machine, continuous screen-printing machine, gravure printing machine and anti-counterfeiting label press.
Specifications
Type | 350A |
Die Cutting Speed | 30-220 times/min |
Max. Web Width | 320mm |
Max. Unwind Roll Diameter | 600mm |
Max. Rewind Roll Diameter | 600mm |
Max. Die Cutting Width | 300mm |
Max. Die Cutting Length | 350mm |
Positioning Accuracy | ±0.10mm |
Main Motor Power | 2.2kw |
Total Power | 4 kw |
Power Supply | 220V±10% |
Overall Dimension | 2800X1250X1400mm |
Weight | About 1700kg |
