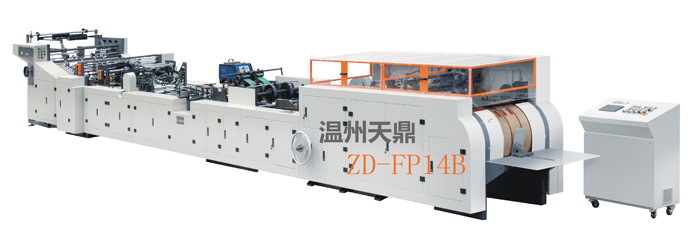

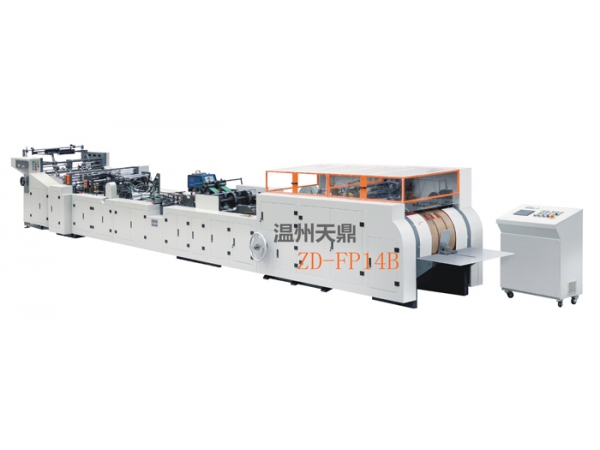

Our sheet-fed paper bag machine is designed to manufacture square bottom paper bags from blank or printed paper sheet. It can complete side gluing, tube forming, bottom impressing, gluing and forming as well as final product discharging operations in one go, thus providing high efficiency.
As the sheet-fed paper bag machine adopts PLC system and touch screen, it is easy to operate. The bag length is controlled by a servo motor. Currently the paper bag making machine is widely used for producing foodstuff bags, shopping bags and other paper bags in different sizes.
| Outline dimension | 10050mm*1720mm*1690mm (length*width*height ) | Weight | 4000KG |
| Total power | 10KW | Bottom gusset height | 50-200mm |
| Max. paper size | 1200mm*600mm (length*width) | Min. paper size | 400mm*280mm (length*width) |
| Paper weight | 100-400g | Bag making speed | 5000pcs/h |
