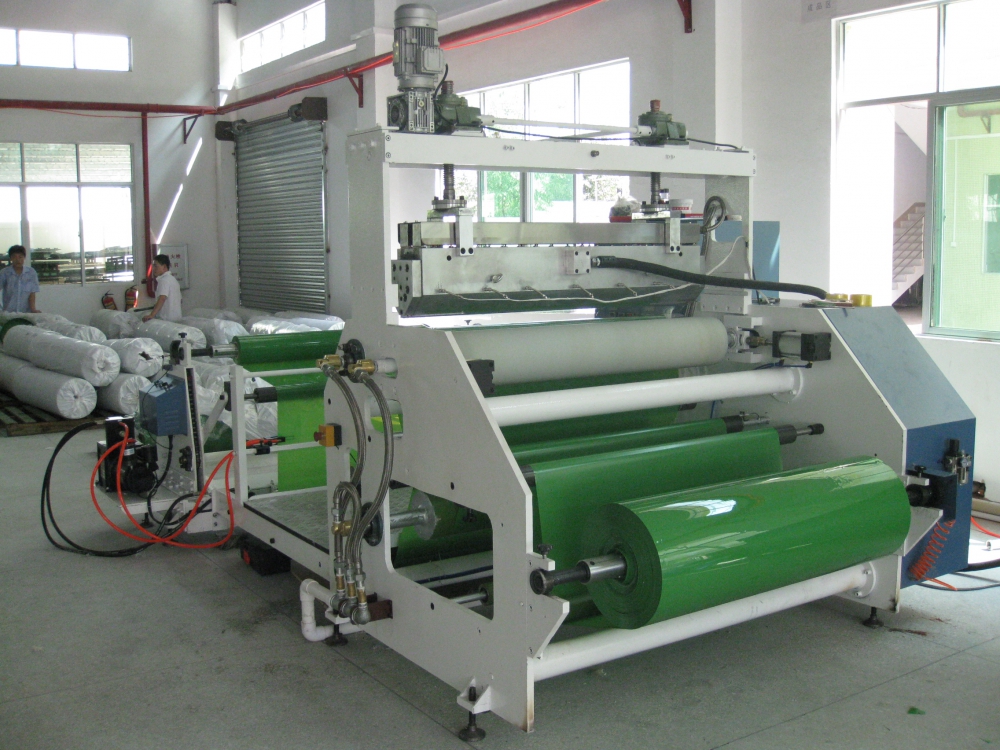

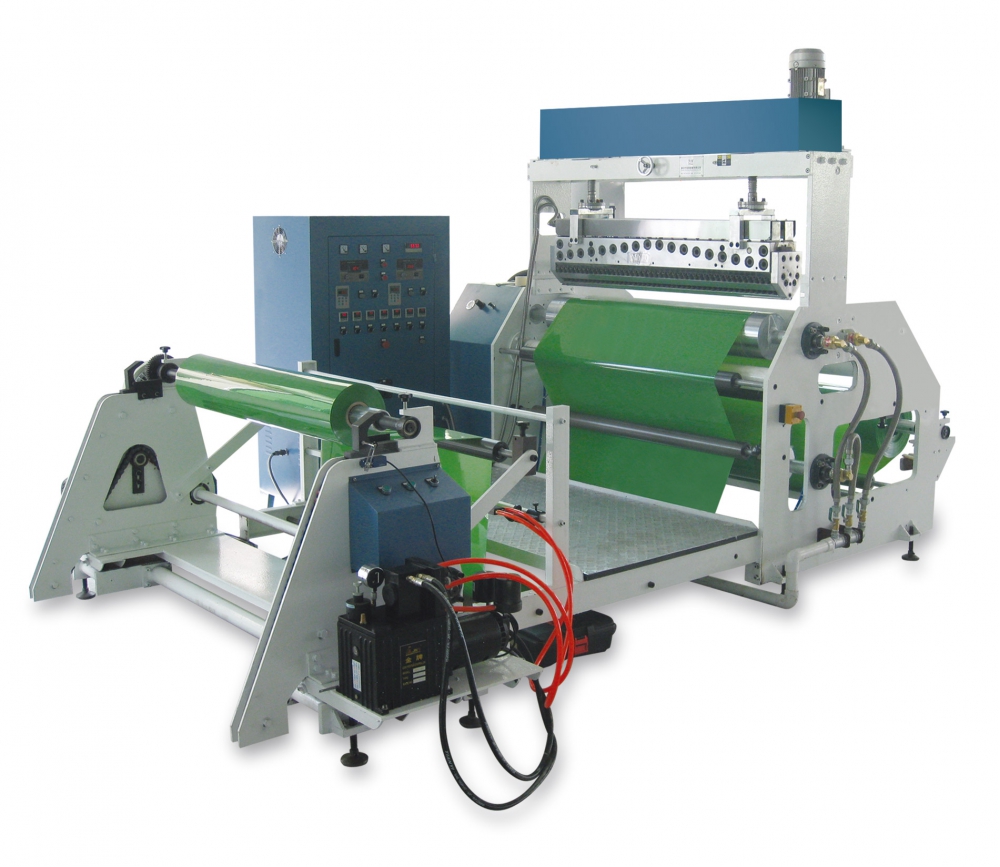

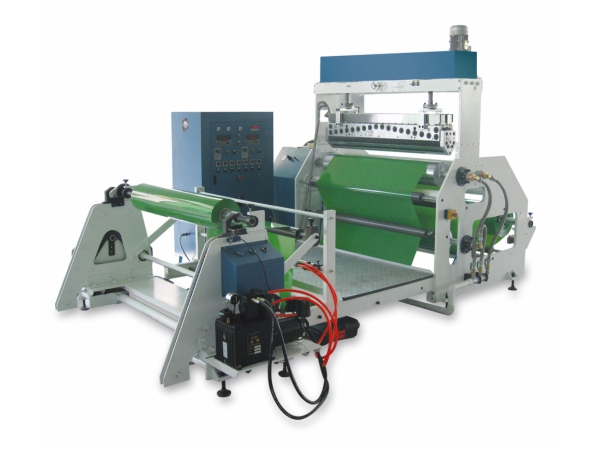

Extrusion Coating and Laminating Machine, 80M/min (RTT Series)
RTT series extrusion coating and laminating machine is used for coating and laminating of a wide range of substrates such as woven fabric, paper, plastic film and nonwoven fabric using EVA, TPU hot melt adhesive.

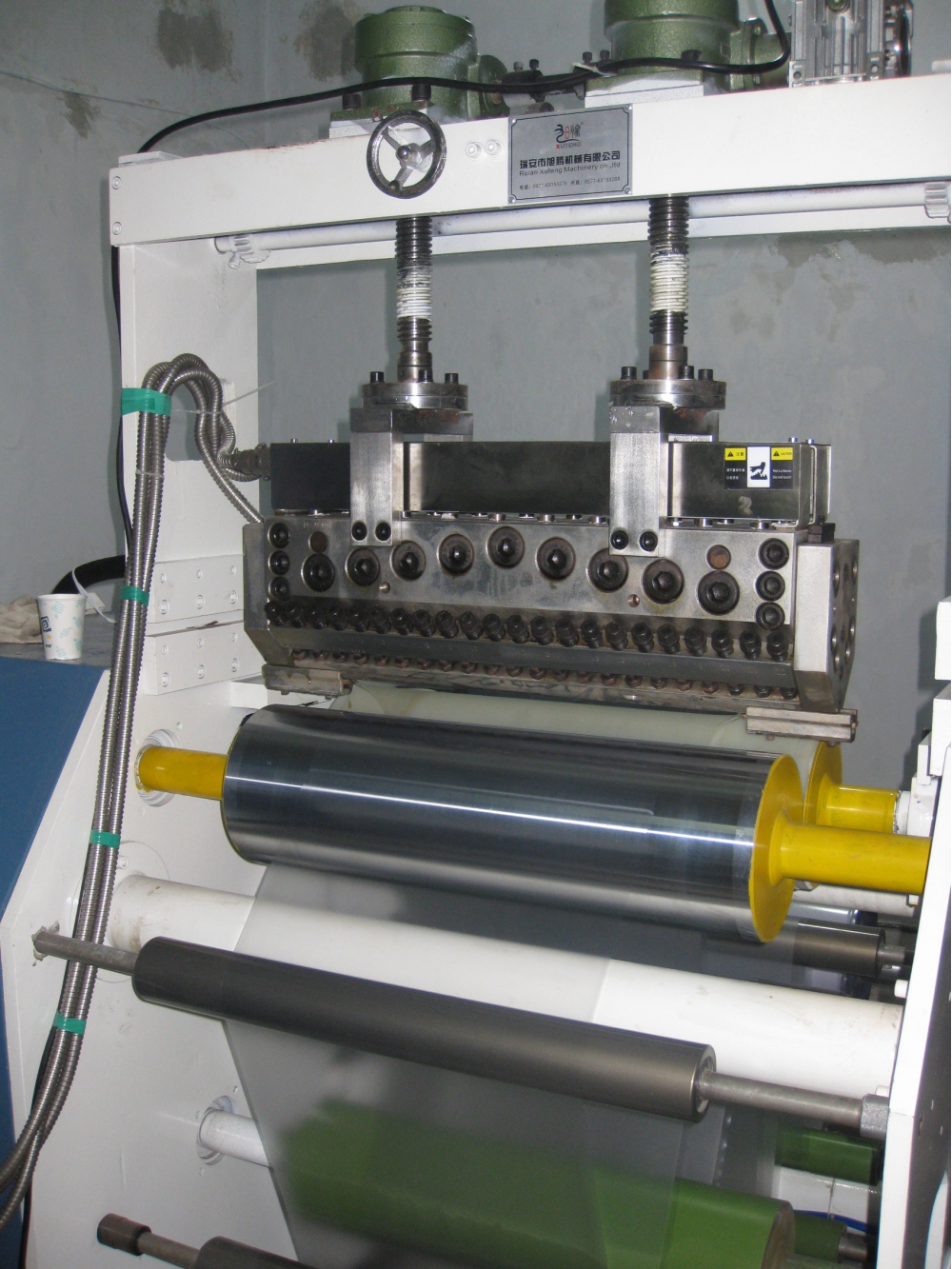

Features 1. T-die (coater die) with streamlined channels features outstanding mechanical
stability.
2. Precise temperature control with a PID controller achieves tolerance less
than 1℃.
3. The whole extrusion die can move forward and backward, upward and downward.
4. The extruder and extrusion die features a split design, enabling space
saving in the factory.
Technical Parameters
Model | RT |
Coating Width | 400-1500mm |
Coating Weight | 10-100g/m2 |
Coating Speed | 80m/min |
Unwinding Unit | 1 set |
Unwind Roll Diameter | 1000mm |
Rewinding Unit | 1 set |
Rewind Roll Diameter | 700mm |
Max. Working Temperature | 230℃ |
Length | 4100mm |
Height | 2500mm |
