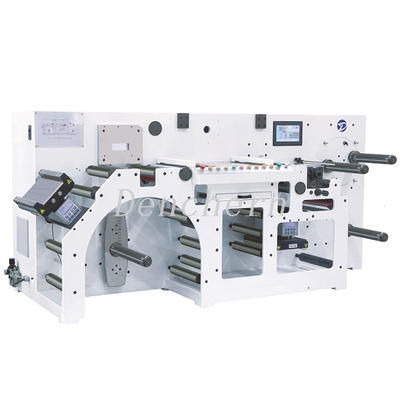

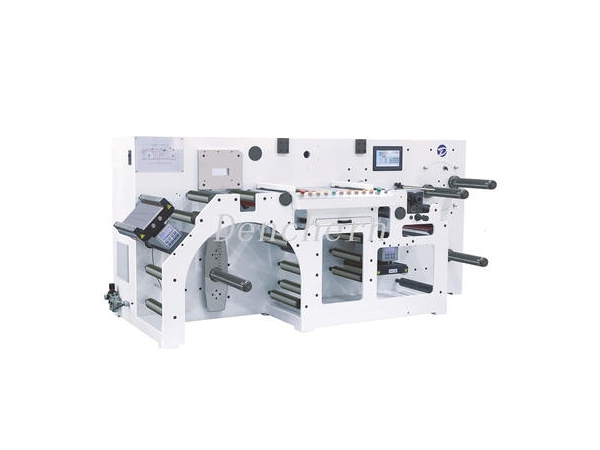

Inspection plat system is drove by full servo motor system, both rewind and unwind with taper tension control system, web guide system, PLC control system, it is suitable for paper, adhesive label, PVC, PE and PP, machine can be put inkjet printing system as optional.
Model | ISR-370 |
Slitting Speed | 300m/min |
Max. Web Width | 370mm |
Effective Detection Width | 350mm |
Max. Unwind Dia. | 800mm |
Rewind Dia. | 450mm |
Max. Rewind Dia. | 800mm |
Min. Slitting Width | 15mm |
Razor Knife | Optional |
Air Source | 0.8Mpa |
Weight | 1800kgs |
Dimension | 3015*1250*1380mm |
Total Power | About 11kw |
