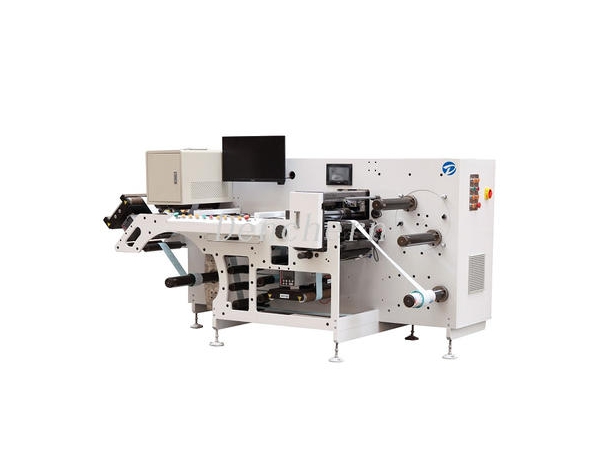

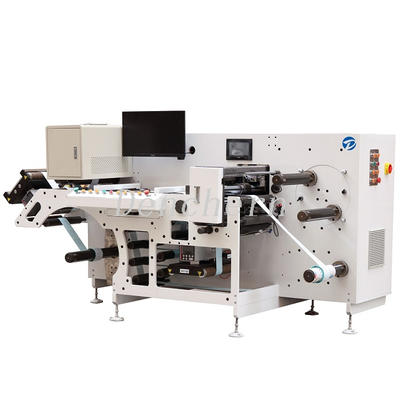

ISR370-MASTER High speed inspection slitting machine is developed by Denchern machinery co., ltd. which mainly for narrow web label slitting. It adopts full servo motor driven system, taper tension control system, international famous web guide system, turret type rewind system. It's suitable for different size inner cores slitting and rewinding.
Model | 370 | 480 | 550 |
Speed | 220m/min | 220m/min | 220m/min |
Max. feed web | 370 | 480 | 550 |
Max. unwind dia. | 700mm | 700mm | 700mm |
Max. up rewind dia. | 450mm | 450mm | 450mm |
Max. down rewind dia. | 700mm | 700mm | 700mm |
Razor knife | optional | optional | optional |
Min. slitting width | 20mm | 20mm | 20mm |
Power | 8kw | 11kw | 14kw |
Dimension | 2600*1350*1400mm | 2600*1460*1400mm | 2600*1530*1400mm |
Weight | 1900kg | 2100kg | 2300kg |
