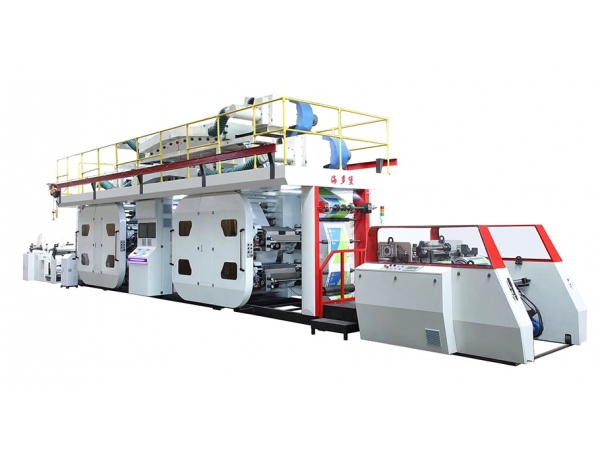

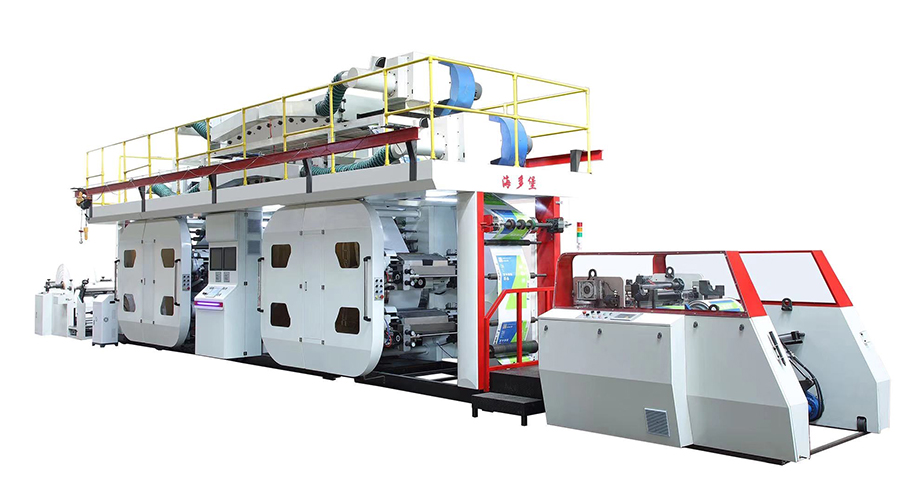

Used for high-precision and high-speed printing of paper, film, OPP, non-woven fabric, plastic woven fabric, paper-plastic composite coil, double-station non-stop winding, automatic servo flying knife cutting cloth, safe and fast.
Equipment performance and features
●Automatic deviation correction, constant tension control, material cut off, digital display coil diameter and refueling warning.
●No downtime refueling, speed reduction within 100 meters automatic servo cutting cloth double station swing arm exchange.
●The base and thickened wall panels are cast iron materials to ensure the machine runs at high speed and stability.
●The driving force of the printing system is servo synchronous drive, and the low torsion foot accelerates steadily, and the machine stops and does not waste.
●Ceramic anilox rolls, single knife reverse ink scraper, automatic ink supply.
●Closed high speed circulation air knife oven, patented product guarantees drying.
●8 inch winding and expanding shaft for easy matching with square bottom valve pocket production equipment.
●Low noise and high standard safety protection design, beautiful atmosphere equipment, high input, light maintenance, high efficiency.
●High accuracy, fast speed and good efficiency.
Technical parameters

Maximum printing width

650mm

Printing length

600-1200mm

Registering precision

±0.2mm

Printing color number

8 colors (4 front and 4 back)

Winding and unwinding diameter

≤1400mm

Printing speed

120160m/min

Main motor power

7.5kw

Outline dimensions

17000×2900×3900mm

Configuration list

Servo motor

Delta

PLC

Delta

Touch screen

Weinview

Low voltage electric appliance

Schneider

Switching power supply

Mean Well

Bearing

Zhejiang Renben

Wallboard material

Cast iron
