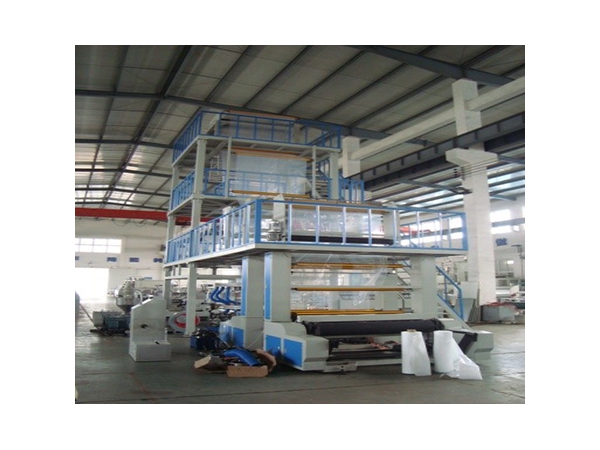

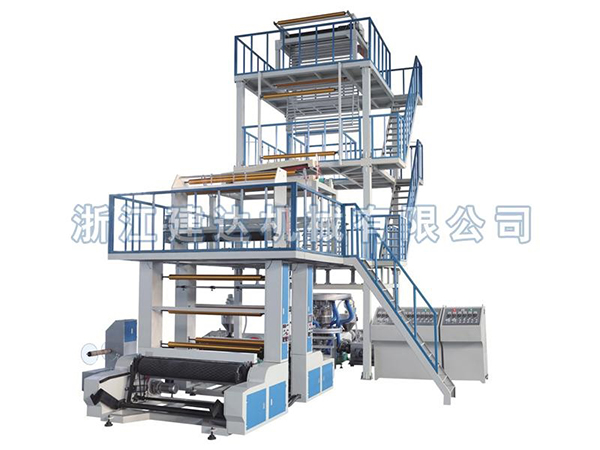

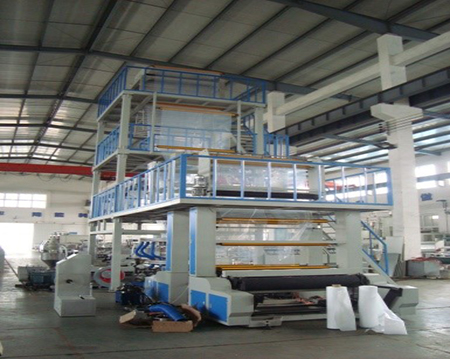

JD3SJ-G three layer rotary die head blow film machine is applicable for producing LDPE or HDPE plastic films which are regularly used as raw materials for making plastic bags.
This film blowing machine is characterized by high operation speed, production capacity, easy operation, less energy consumption and compact structure. They produced films feature better tension and air-tightness.
Technical Parameter：
| Model | JD-FM1300 | JD-FM1500 | JD -FM1800 | JD -FM2300 |
| Suitable material | HDPE LDPE LLDPE | |||
| Max-film width(mm) | 1200 | 1400 | 1700 | 2100 |
| Film thickness (mm) | 0.02-0.12 | |||
| Max-output | 200Kg/hr | 250Kg/hr | 300Kg/hr | 400Kg/hr |
| Screw diameter (mm) | Φ45/Φ55/Φ45 | Φ50 /.Φ60/Φ50 | Φ60/Φ70/Φ60 | Φ75/Φ90/Φ75 |
| Screw L/D length | 30:1 | |||
| Screw material | SACM-645/38CRMOALA | |||
| Cylinder material | SACM-645/38CRMOALA | |||
| Screw rotate speed | 100 RPM | |||
| Main motor (kw) | 18.5/30/18.5 | 22/37/22 | 30/45/30 | 55/90/55 |
| Traction speed | 45-120M/MIN | |||
| Total power (kw) | 150 | 280 | 280 | 350 |
