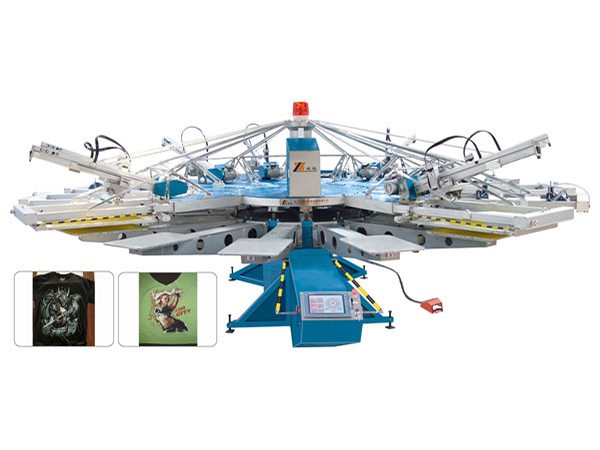

YH Automatic Textile Screen Printing Machine

The YH automatic textile screen printing machine has higher productivity, helping users achieve quick cost recovery. It is equipped with intelligent micro-processor. The stable performance produces first class printing quality and requires less maintenance. The maximum image area can be 500×700mm, in 4, 6, 8, 10, 12, or 14 colors. Suitable for wide array of workshops, this garment printing machine is generally applied for printing on T-shirts, sleeves, trousers, and fabric sheets and bags, etc.

Inquiry

Website

Features
1. The YH automatic textile screen printing machine comes with servo motor driven indexer, AC motor driven print heads, and pneumatically operated turntable lifting system.
2. The screen frame is tightly held by the pneumatic clamps, which can be adjusted horizontally and vertically for quick frame handling.
3. Our product is well received by virtue of the independent squeegee and flood bar speed regulator and pressure adjustment device.

Touch Screen Control Center
1. The automatic textile screen printing machine has a color display to offer vividly visual guide.
2. This product comes with an independent printing control device. So the machine will stop working automatically when preset production data is completed.
3. The built-in self-diagnostic and alarming system is available with this automatic textile printer.
4. Multiple (1-50) print stroke capability in each print head.
5. The real-time production data will be displayed on the touch screen.
6. Zero position control.
7. Individual print heads can be turned on or off by test print setting during printing cycle.
8. It has the function of loading time and the flash curing dwell time control.
9. There are three curing regions in each in-line cure unit. The curing retions can be set independently.
10. By virtue of the built-in USB interface, software upgrade is possible with this digital textile printer.
11. The automatic textile screen printing machine features easy repeat production due to the technical parameter restoration function.

Turntable or Indexer
1. The turntable can rotate clockwise or counterclockwise.
2. To improve the productivity, the product has double-station indexing capacity.
3. Driven by servo motor, the machine achieves high printing speed, superior smoothness, consistency and long lifespan.
4. The precise central off-contact adjustment minimizes shut-down through the hand lever on the control centre.
5. Precise four-point pallet leveling system for the automatic textile screen printing machine.
6. The pneumatic and tool-free pallet locator makes the pallet changeover convenient and rapid.

Safety System
1. There is safety cord installed between the print heads and four safety bars to eliminate trip-in accident. So the print head can be easily controlled for flash cure and ink refilling.
2. The skip-skirt smashing button, which is installed on both sides of the touch screen, helps avoid printing on empty pallets.
3. The triggering time for shutdown is just one hundredth of a second, ensuring the high safety of the product.

Print Frame
1. The pneumatic clamps realize tight frame clamping and rapid frame replacement.
2. The squeegee and flood-bar angle can be visually adjusted at 1 degree for each operation within the range of 0-30°.
3. In addition to easy changeover for squeegee and flood-bar, the flock print is also available with this automatic textile screen printing machine.
4. Our product has high print flexibility due to the calibrated front and rear stroke length and tool-free adjustment ability.
5. There is a membrane control panel for each print head for easy setup of squeegee and flood bar speed, pneumatic screen frame clamping, horizontal and longitudinal operation, and squeegee and flood bar replacement.
