Bag Types:

Standup bag, Portable bag, Zipper bag, 4-side sealing bag, 3-side sealing bag etc. and all kinds of compound bags.

Main Technical Parameter:

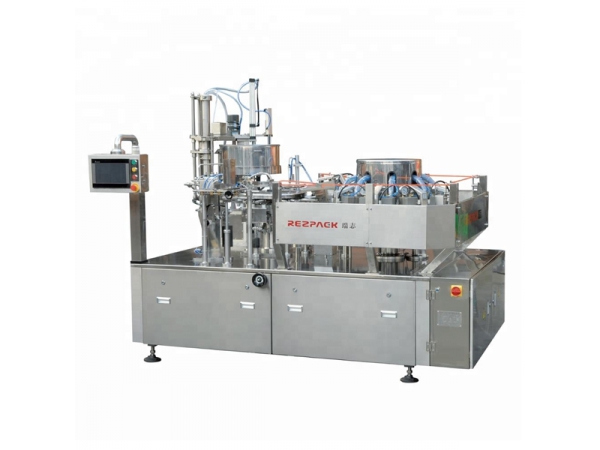

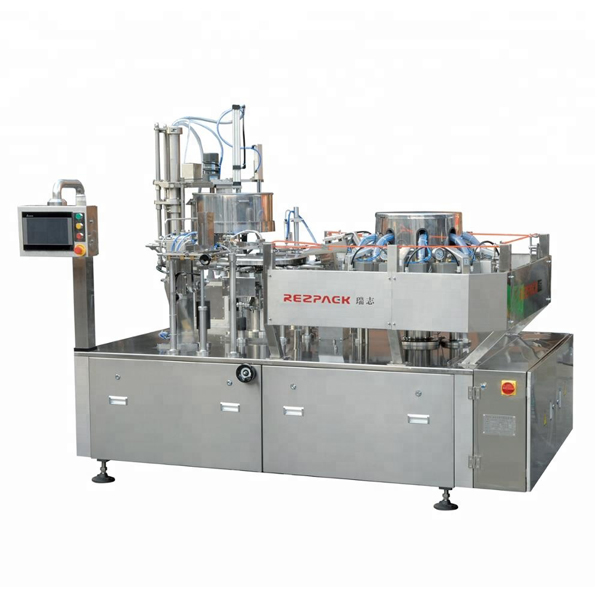

Equipment Model

RZ8-150ZK+Contraction Cup

Bag Size

W: 65~150mm L: 70~210mm(date coding requireslength140mm)

Filling Range

Cup Measurer:5~42g(cup changed only),Weight42g can be customized, Liquid Filler:1-2000g

Packing Speed

20~50Bags/min(depended on the product and filling weight)

Package Accuracy

Contraction Cup±2g

Weight

2300kg

Dimension

2476mm*1797mm*1661mm (L,W,H)

Total Power

10kw

Compressed Air Requirement

0.65m3/min(Compress air is provided by user) Working Pressure=0.5MPa
