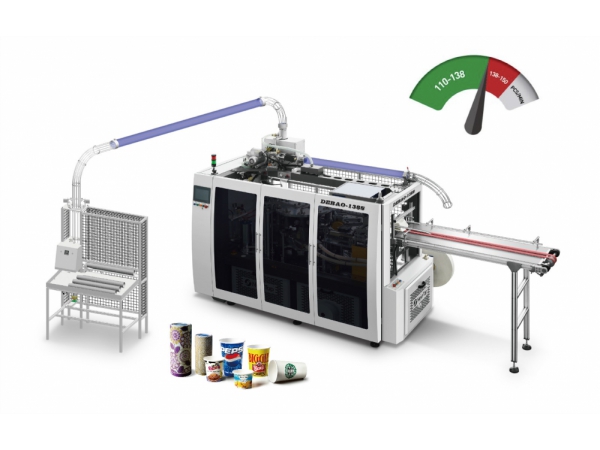

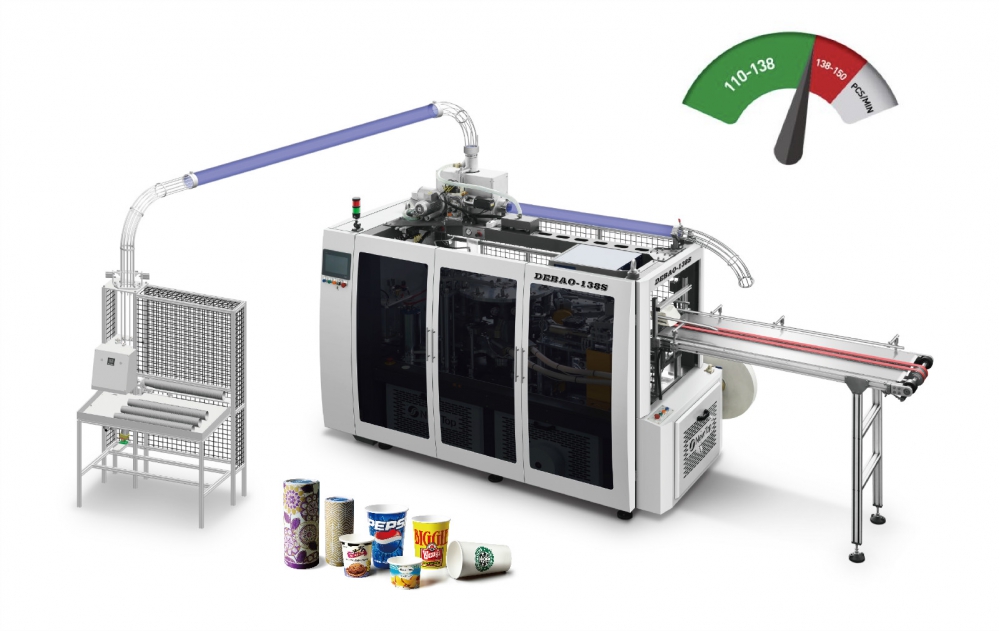

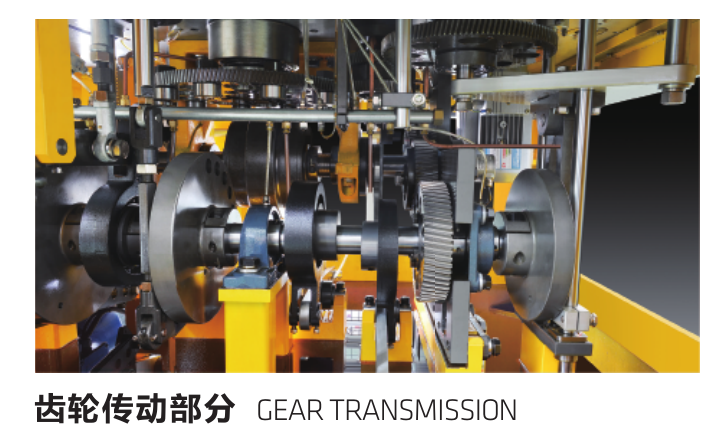

DEBAO-138S type intelligent paper cup machine is using desktop layout, which isolates the transmission parts and molds. The transmission parts are under the desk
DEBAO-138S DEBAO-118S+ZY DEBAO-118S+SY Weight Weight Weight 3400 kg 3300 kg 3100 kg Machine
encasement dimensions Machine encasement
dimensions Machine encasement
dimensions Machine: Machine: Machine: 3100 x 1600 x 2100mm （collection table 1230 x 610 x 1900mm） 3100
x 1600 x 2100mm （collection table 1230 x 610 x 1900mm） 3100
x 1600 x 2100mm （collection table 1230 x 610 x 1900mm） with visual system: with
visual system: with
visual system: 3100 x 1600 x 2350mm（collection table1230 x 610 x 1900mm） 3100
x 1600 x 2350mm（collection table1230 x 610 x 1900mm） 3100
x 1600 x 2350mm（collection table1230 x 610 x 1900mm） Connecting
power Connecting power Connecting power three-phase
380V，26KW three-phase 380V，26KW three-phase 380V，24KW Compressed
air Compressed air Compressed air 0.6-0.8MPa，0.5m³/min 0.6-0.8MPa，0.5m³/min 0.6-0.8MPa，0.5m³/min Production
capacity Production capacity Production capacity 110-160
pcs/min 110-150 pcs/min 110-150 pcs/min Paper types Paper types Paper types single
PE/double PE/PLA single PE/double PE/PLA single PE/double PE/PLA Paper
grammage Paper grammage Paper grammage 210-330g/㎡ 210-330g/㎡ 210-330g/㎡ Product

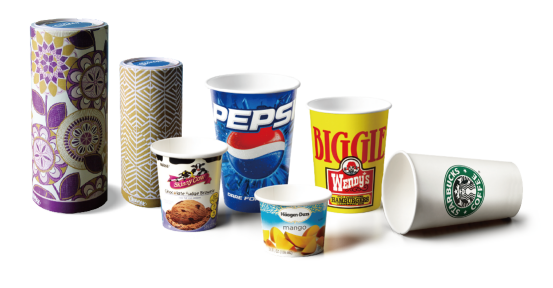

range Product range Product range (D1)ф60-95mm
(H)50-135mm (D1)ф60-95mm (H)50-135mm (D1)ф60-95mm (H)50-135mm (D2)ф40-75mm (h)5-12mm (D2)ф40-75mm
(h)5-12mm (D2)ф40-75mm
(h)5-12mm Visual
inspection system Visual inspection system Visual inspection system ○ ○ ○ bottom
heating bottom heating bottom heating assembly● assembly● assembly● Long term
magazine Long term magazine Long term magazine ○ ○ ○ control
panel control panel control panel 10.2 inches 7 inches 7 inches note: optional○
standard●
