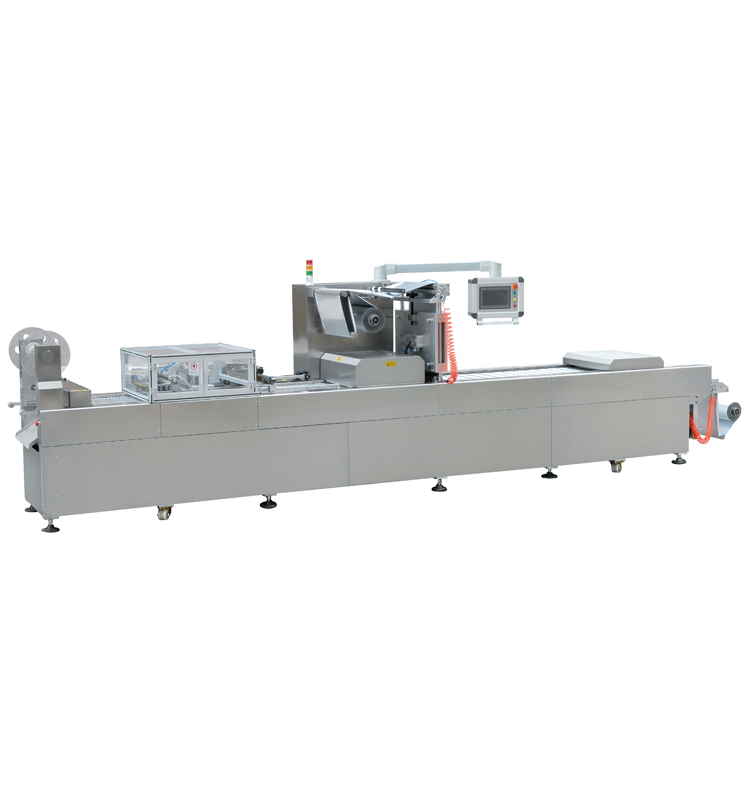

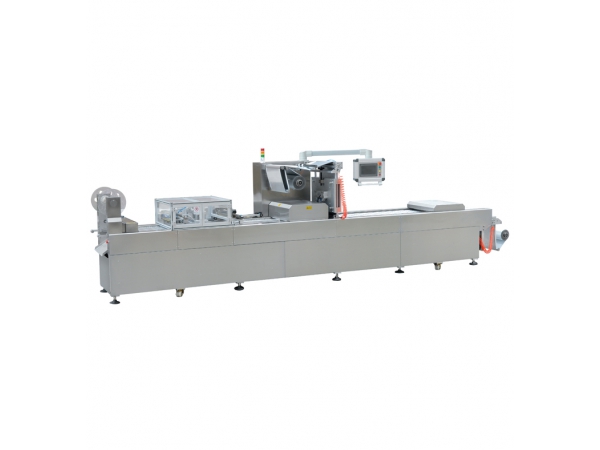

Full-automatic Thermoforming Vacuum Skin Packaging Machine | ||
Equipment Model | RC-420S | RC-520S |
Width of Top Film | 398mm | 498mm |
Width of Bottom Film | 424mm | 524mm |
Vacuum | ≤200Pa | |
Compressed Air | ≥0.6Mpa | |
Air Consumption | ≥0.6m3/min | |
Air Filling Pressure | ≥0.2Mpa | |
Punching Speed | 4-6p/min | |
Air Filling Connector | Ø16PU tube | |
Cooling Water | ≥0.15Mpa | |
Power Supply | 380V/50HZ | |
Total Power | 12~18KW | |
Machine Dimension | 6850*1150*2000mm | |
Machine Weight | 2250kg | 2450kg |
Main Functions And Features:
1.Mitsubishi PLC controller, large true color HMI touch screen;
2.Japan Yaskawa servo motor, high speed and high precision;
3.Temperature computer controlled system, intelligent & high accuracy;
4.Imported photoelectric tracking system (Germany),ensure alignment position.;
5.Germany BUSCH vacuum pump, high vacuum strength and degree;
6.Japan SMC pneumatic system for all solenoid valves;
7.Servo traction adopts Taiwan chain(TYC);
8.Combination sealing mould, whole sealer by Germany silica gel;
9.Magnetic powder type expanding system to ensure the bottom film running smooth;
10.Automatic waste recycling system.
