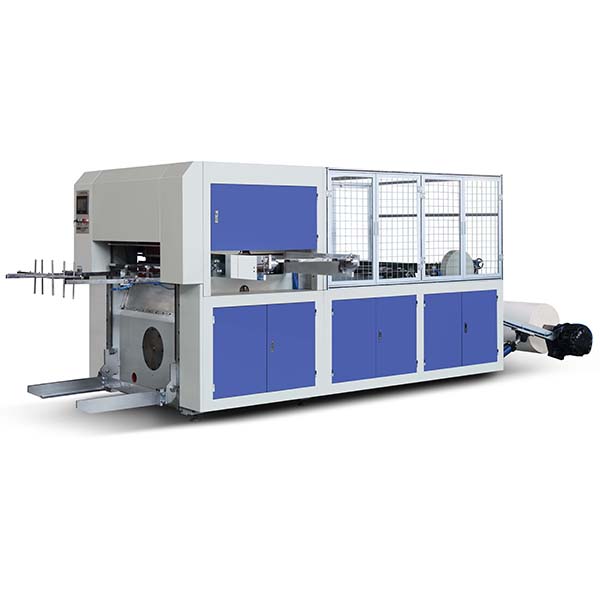

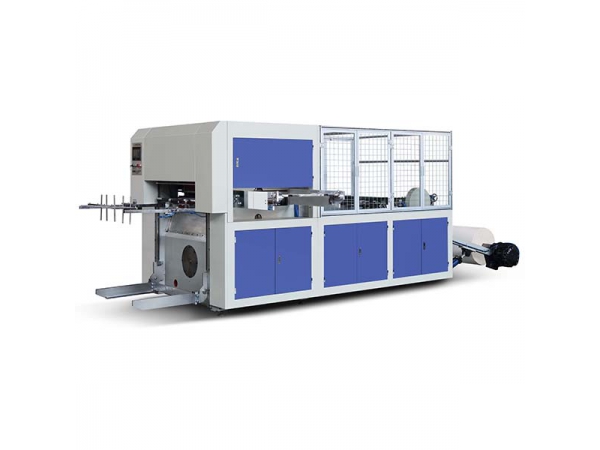

XCY-950 high speed paper roll die-cutting machine is widely used in printing, packing and paper cup industries. It’s suitable for die cutting and creasing all kinds of paper cup(bowl), cigarette case, medicine paper box, envelope, paper bowl, gift bags and various paper-plastic products(Also can cut various sizes of corrugated paper).
Key components and control system of automatic die punching machine we choose are from international famous brands, and their assembly is quite accurate. In this way, stable pressure, accurate positioning, secure operation could all be realized.
Main parametersMain motor power 15KW paper request 100-600g/m2 conditions for using Draft, dry; suggested temperature for using :10-25℃ Roll paper size Diameter<=1400mm Width<=950 Die-cutting precision （+-）0.08mm Die-cutting rate 100-130per/min Max. die-cutting pressure 360T Die-cutting size 950*550mm weight 7500kg Dimension 5200*2320*18200 mm
