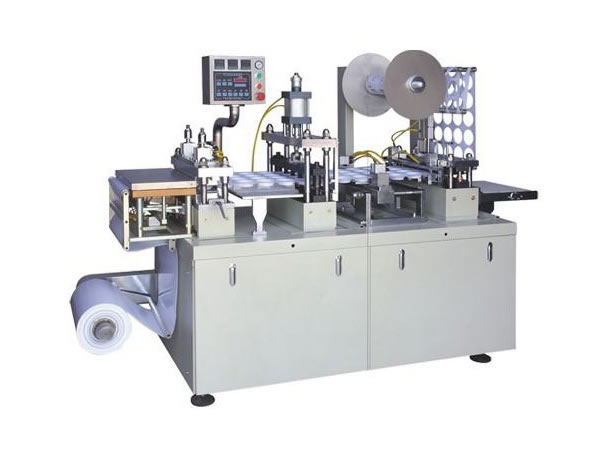

The plastic cup lid forming machine is developed by our R&D group according to the demand of packing market. Combined of the advantages of aluminum-plastic blister packing machine and plastic sucking forming machine, it is applicable to the plastic ware such as PVC, PET, PS medicine trays and cup lids thermoforming boxes.
| Punch Frequency | 15-40pcs/min | Total Power | 4.5KW |
| Mould cooling | Tap water or recycle water 60 L/h | PVC hard pieces | 0.15-0.5×350mm |
| Max forming area | 330×160mm | Overall dimension | 1900×790×1700mm |
| Stroke | 65-165mm | Max forming depth | 26mm |
| Compressed air | 0.6-0.8(MPa) | Weight | 900KG |
