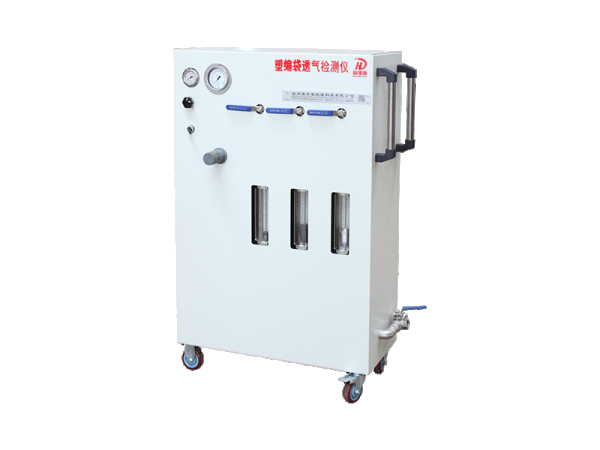

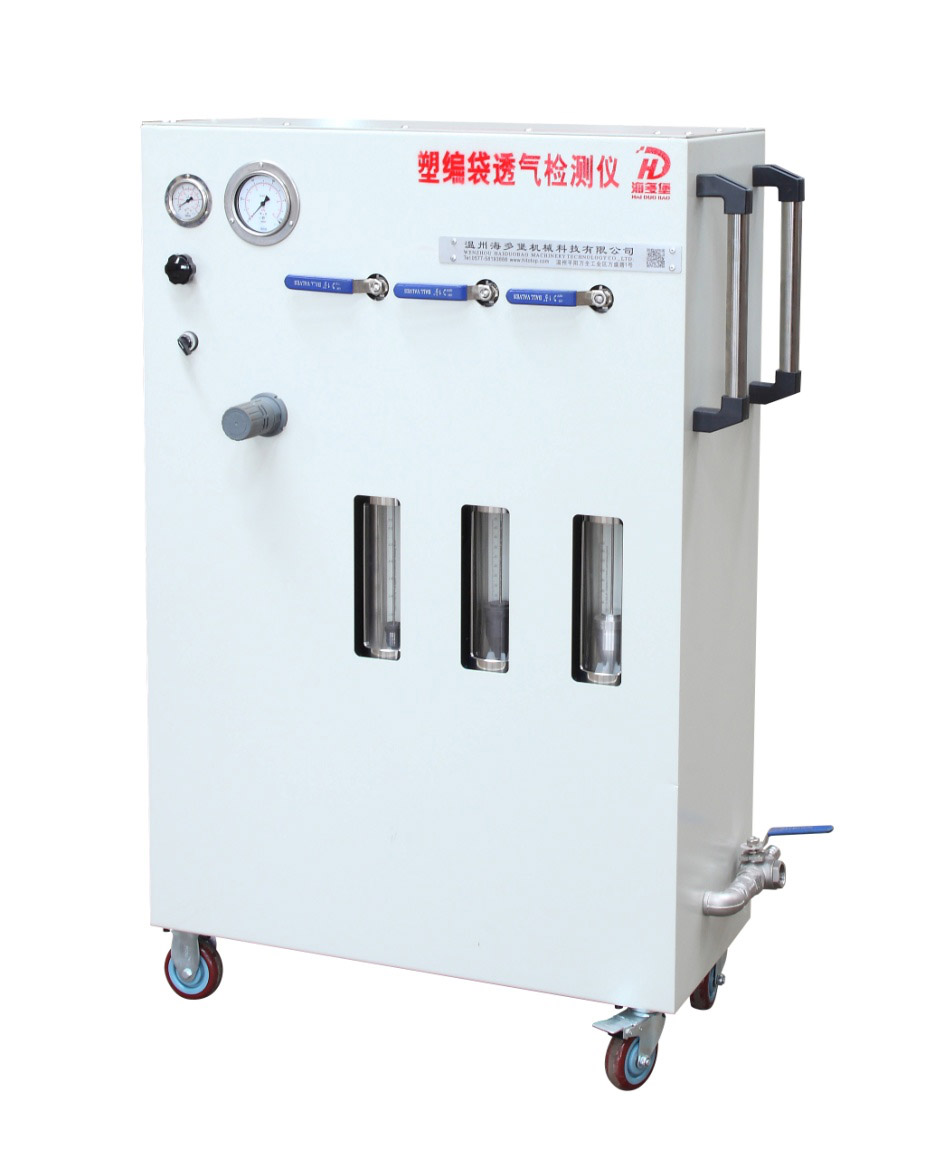

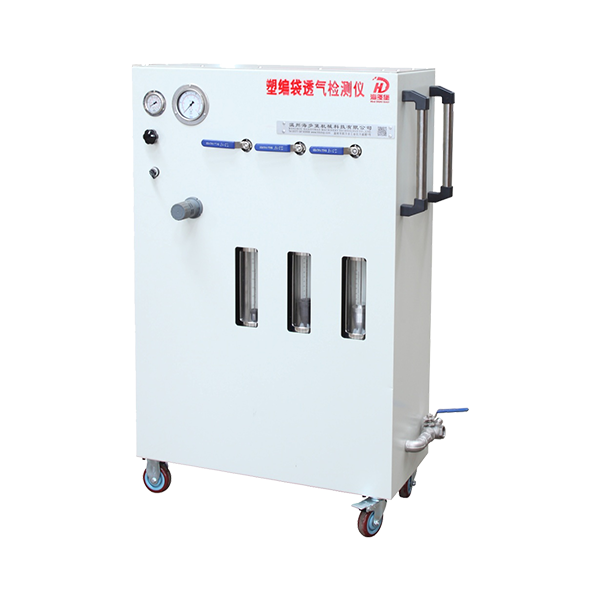

It is used to detect the air permeability of the micropore valve pocket for stable filling. (The universal reference standard air permeability is 120m3/h. Because the pressure of each manufacturer's filling machine is different and not adjustable, it can be adjusted according to the actual situation.)
Parameters
Pressure range | 1～8000Pa（80 mbar） |
Measurable air permeability | 0.65～160 m³/h |
Measurement error | ≤±2% |
Intake air pressure | ≤16 bar |
Main gauge range | 0～100 mbar |
Secondary pressure gauge | 0～1.0 bar |
Air flow meter range 1 | 0.65～6.5 m³/h |
Air flow meter range 2 | 5～50 m³/h |
Air flow meter range 3 | 16～160 m³/h |
Main air pressure valve quantitative adjustment | 0.5～10 bar |
Secondary pneumatic valve quantitative adjustment | 0～0.5 bar |
Intake hose length | 3 m |
Intake hose connector | DN25 internal thread |
Valve mouth | Common size 3 |
Overall size | 900×400×1450 mm |
Domestic accessories version Imported parts version Number of nozzles Valve pocket: 5 sizes each
Bottom cement bag: 2 special sizes Valve pocket: 5 sizes each
Bottom cement bag: 2 special sizes Pressure gauge Domestic (Guangzhou) German brand Air flow meter Domestic brand (Changzhou) German brand Main air valve Italian brand Italian brand Secondary air valve Japanese brand Japanese brand #Description (problem to be produced) (normal shipment) Tax-included price Does not
include shipping and installation 38000RMB 55000RMB
