Work Function : Substrate surface graphic text printing.
Applicable Substrates Materials : Knited mesh, laminating knited mesh, BOPP
compound knited mesh, paper-plastic lamination knited mesh, wallpaper; mattresses, templates,etc.

Performance Characteristics:

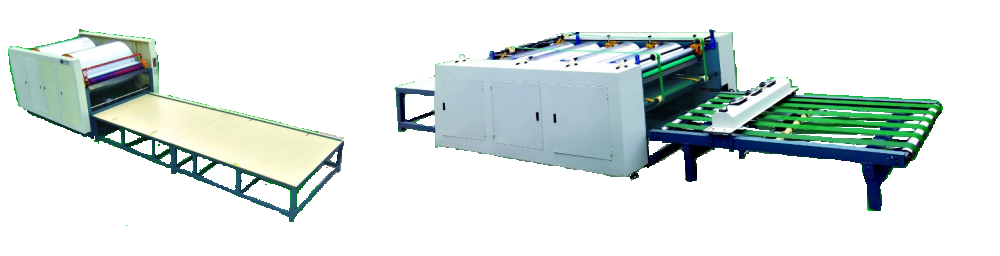

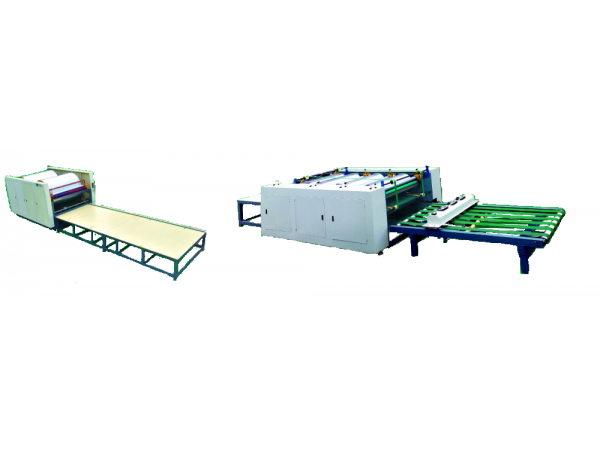

This machine is used for printing the required characters and pictorial trademark on the surface of the cut semifinished ton bags and container bags, the printing can be finished one time, the unit is equipped with automatic technology, tinted fine-tuning and light-controlld printing is adopted. Different quality flat wire can be used, including 100% recycled plastic flat wire weaving, with stable start and shut down, low noise, advanced design and long service life, high production efficiency. This machine has the function of continuous printing to improve work efficiency. The regulated machine controlled by converter is used in the machine, automatic gas and work on-oft smooth operation, advanced anilox roller; to achieve uniform ink transmission, full black, reasonable construction, simple adjustable operation, easy maintenance and other advantages, the printing effect is distinct and the ink can be saved.

Main technical parameters

typeMS-YZ-1500ⅡMS-YZ-1800ⅢMS-YZ-2200Ⅳ
Maximum machine entry width1500mm1800mm2200mm
Maximum printing width1300mm1600mm2000mm
Thickness of rubber letterpress4-6mm4-6mm4-6mm
Maximum printing length1800mm2200mm2500mm
Printing roller diameter600mm700mm800mm
Printing ability1500-3500pcs/h1500-3500pcs/h1500-3500pcs/h
Printing Color Number1-5colors1-5colors1-5colors
Motor Power2.2kw3kw4kw
Installation Dimension (mm)3000*1800*13003500*2100*13004200*2500*1300
Total weight(about)1500kg2000kg2800kg
