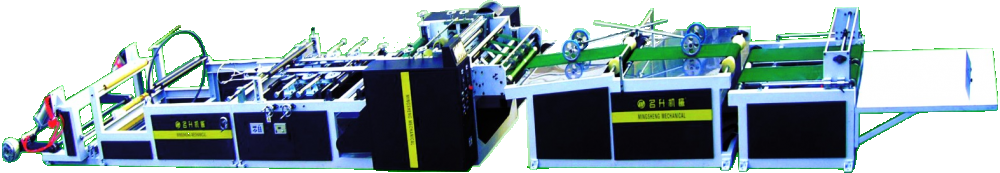

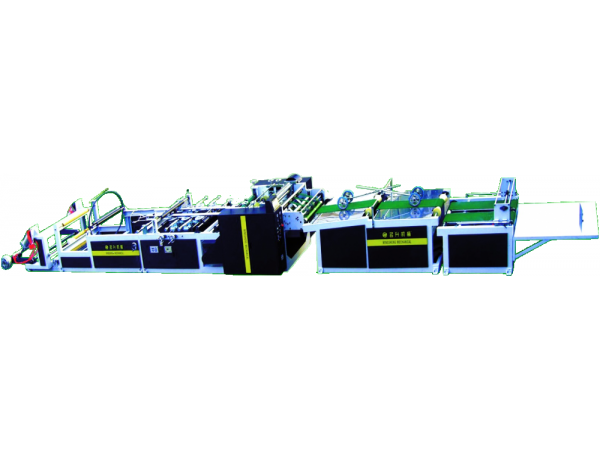

Work Function : Proceeding shift, folding edge M, fixed-point trimming into plain end and PP Valve Bag. Application : Applicable to paper-plastic bag, chemical bag, fertilizer bag, putty powder bag, cement bag, rice bag, sugar bag, pet feed bag and other products. Applicable Substrates Materials : Knited mesh, laminating knited mesh, BOPP compound knited mesh, paper-plastic lamination knited mesh and other wholly rolled materials; Major Parameter Table
Width of Base Material
280-780mm
Unwinding Diameter
Φ1500mm
Depth of edgefold
30-100(mm)
Machine speed
20-150(m/min)
Installed Power
13KW
Boundary Dimension
13x1.6x1.4M(LxWxH)
Cutting Length
400-2000mm
Facility Weight
≈3.5T
Performance Characteristics ： 1. Unwinding section The automatic deviation-checking mechanism equipped with automatic tension control mechanism 2, Forming section Both the edgefold guide mechanism and the clamping roller traction mechanism can be adjusted flexibly to ensure the shift, the accuracy of the width of the bag after folding M side and the stability of margin folding forming. Multiple styles of M-edge models cab be equipped in factory according to product requirements. 3. Trimming section Traction-roller is driven by variable frequency motor and stepless speed regulation, the surface of the steel roller has anti-slip fine lines, making the traction more stable. The cutting knife is heating serrated type, with temperature controlled, and the knife board is modular knife board assembly, which replaces the tradition of a pair of knife for one size. 4. Bag collection section Four - piece bag collection combination makes operation easier 5.Electric appliances section The motion trimming system developed by Mingsheng mechanical engineer independently, controlling parting servo motor precision cutting.
