Description

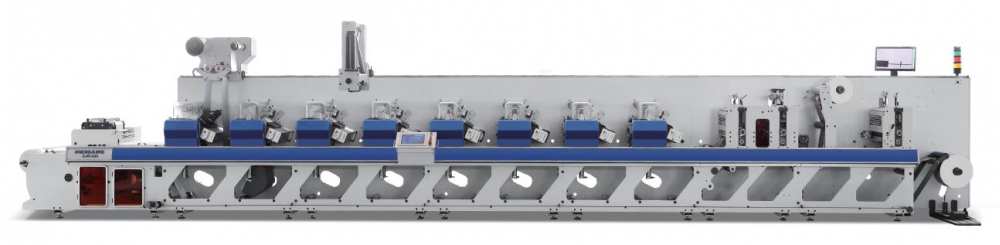

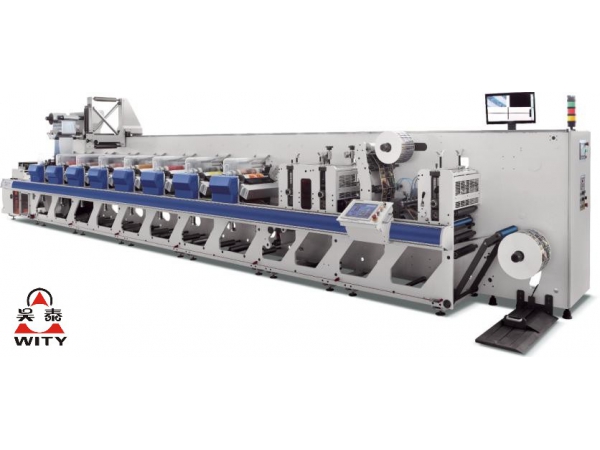

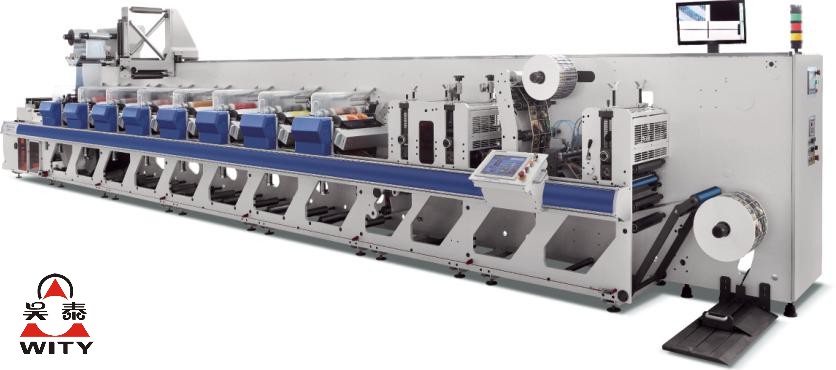

The whole machine adopts the latest servo control system from Germany and each printing unit is driven by independent servo motor. There are 23 servo motors in total for 8 colors machine which ensure the accurate registration during high speed running.
The printing roller adopts sleeve system which is light, easy, convenient and fast to change. This type of design largely improves the printing quality and reduces maintenance.
Fast and easy pressure adjustment of printing or ink transferring: printing roller run by bearer, it’s not necessary to adjust the pressure when change the roller, or at most fine adjust for special job.
Anvil roller equips with water chiller, which is good for film material as well
Suitable for printing variety film material such as PET, OPP, CPP, PP and so on.
Main technical specification
Model | ZJR-350 |
Max. Printing speed | 180m/min |
Printing color | 4-12 colors |
Max. Printing width | 350mm |
Max. Web width | 360mm |
Printing repeat length | Z76~190 (241.3~603.25mm) |
Max. Unwinding diameter | 900mm |
Max. Rewinding diameter | 900mm |
Dimensions (for 8 colors, 3 die cutting stations ) | 10.83m*1.56m*1.52m |
