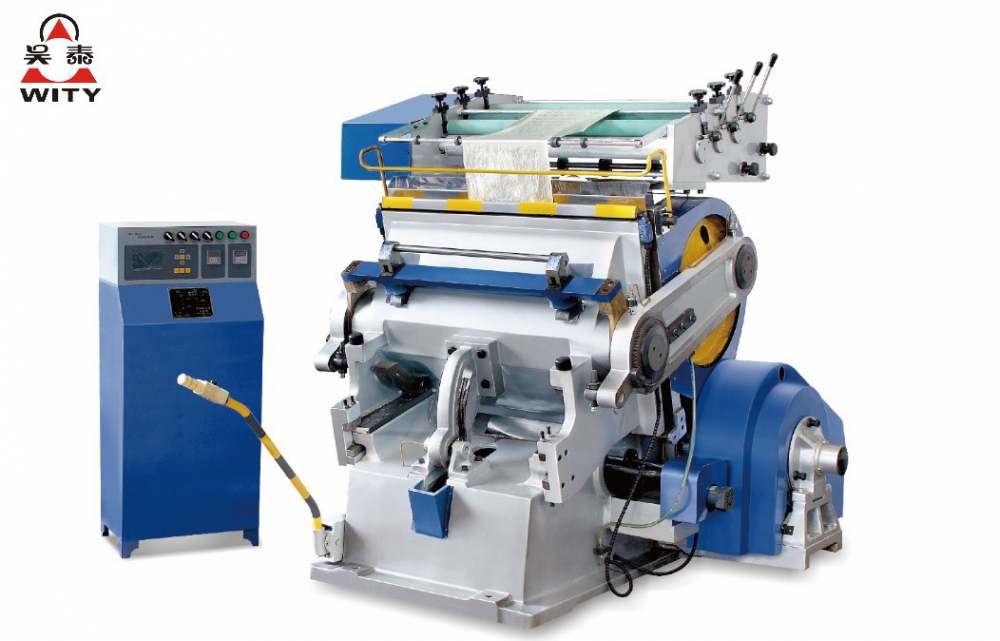

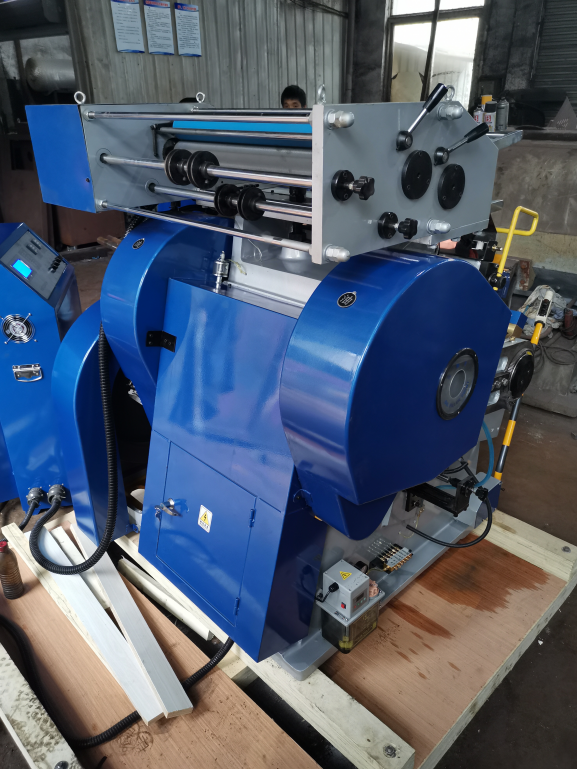

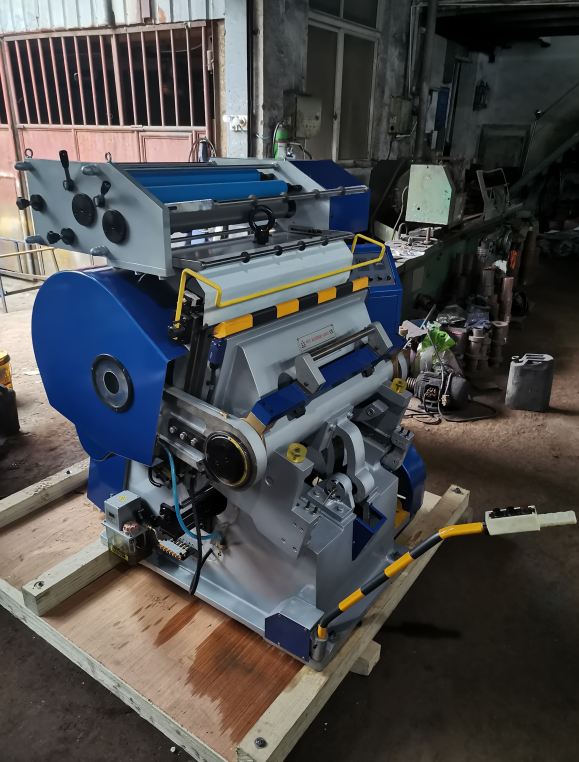

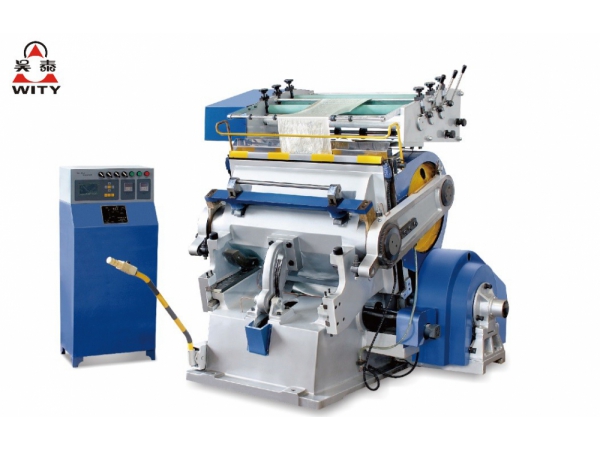

TYMQ is particular machine which attaches a hot stamping unit to Model ML creasing & Die Cutting Machine to fulfil the hot stamping function.
Features
1. The Machine able to shift the hot stamping to die cut function by replacing the heating plate.
2. Low cost, High performance.
Main Specification:
Model | TYMQ1100 | TYMQ930 | TYMQ710 |
Work Size | 1100×800 | 930×670 | 710×500 |
Total heat power | 9(kw) | 9(kw) | 4.5(kw) |
Temperature Range | 1-199℃ | 1-150℃ | 1-150℃ |
Stamping Speed | 20(Storks/min) | 22(Storks/min) | 25(Storks/min) |
Foil length | 1-800mm | 1-600mm | 1-500mm |
Foil jump | 1-99 | 1-99 | 1-99 |
Foil inching | 1mm | 1mm | 1mm |
Foil Motor | 4(kw)/6(Series) | 4(kw)/4(Series) | 2.2(kw)/6(Series) |
Machine Dimension | 1900×2000×1900mm | 1500×1700×1620mm | 1300×1300×1700mm |
Machine Net Weight | 4400kg | 3100kg | 2000kg |
